Explorer Sport 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
>>
Multifunction Switch
Multifunction Switch

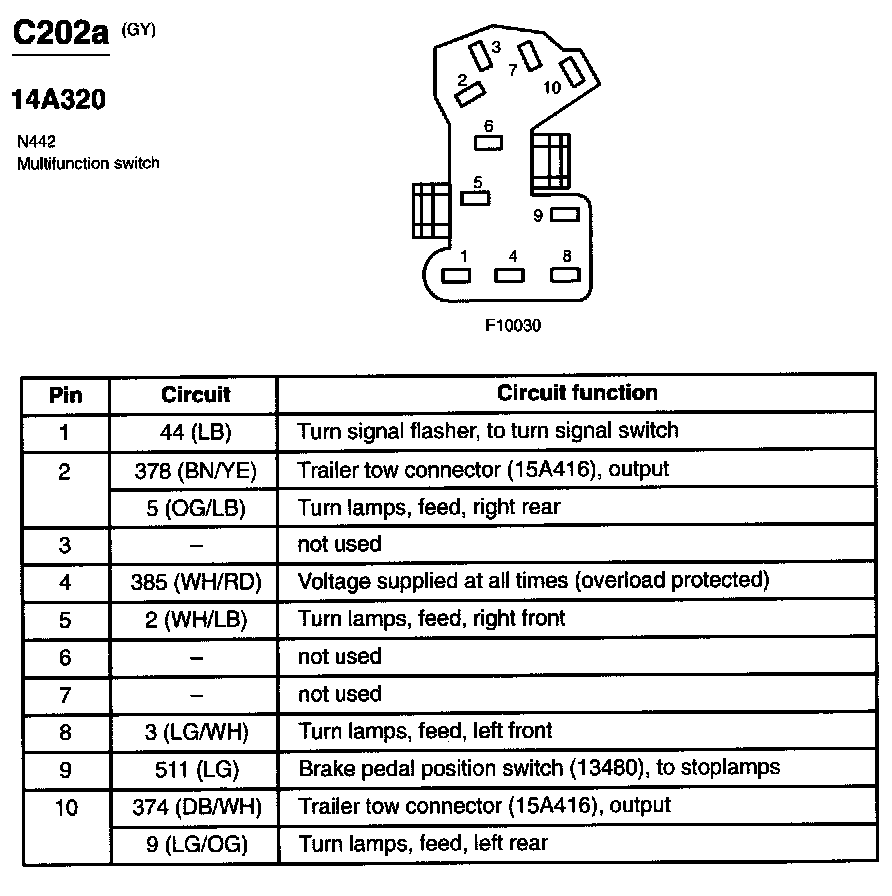

Connector View C202a:

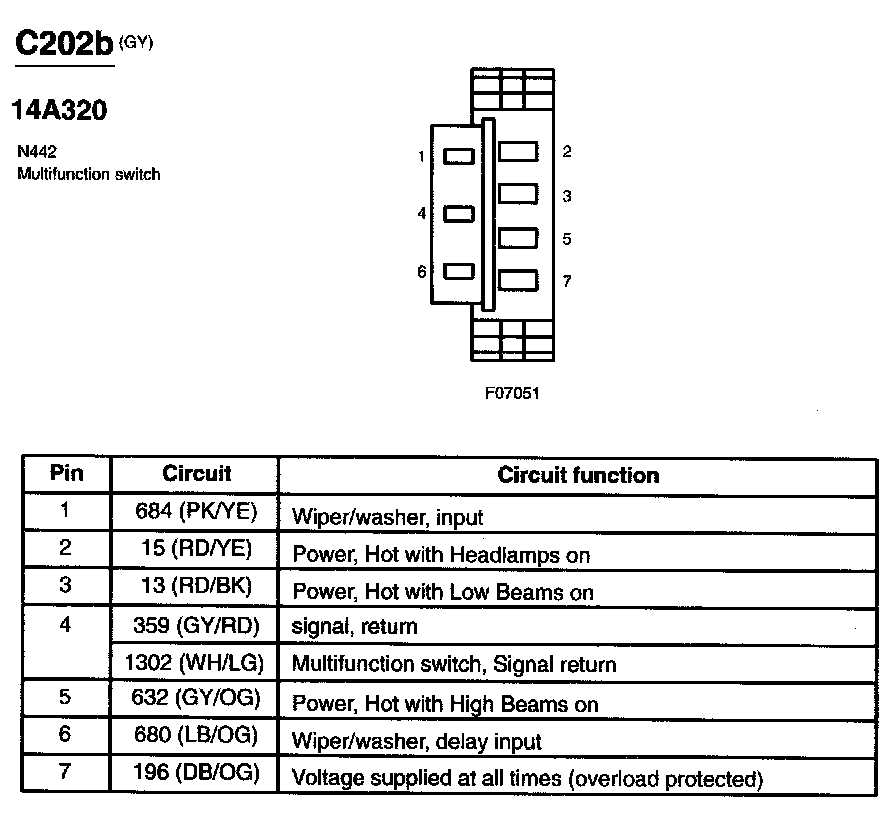

Connector View C202b:
