Ford
>>
2002
>>
Explorer 2WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Brakes and Traction Control
>>
Electronic Brake Control Module
>>
Locations
Electronic Brake Control Module: Locations

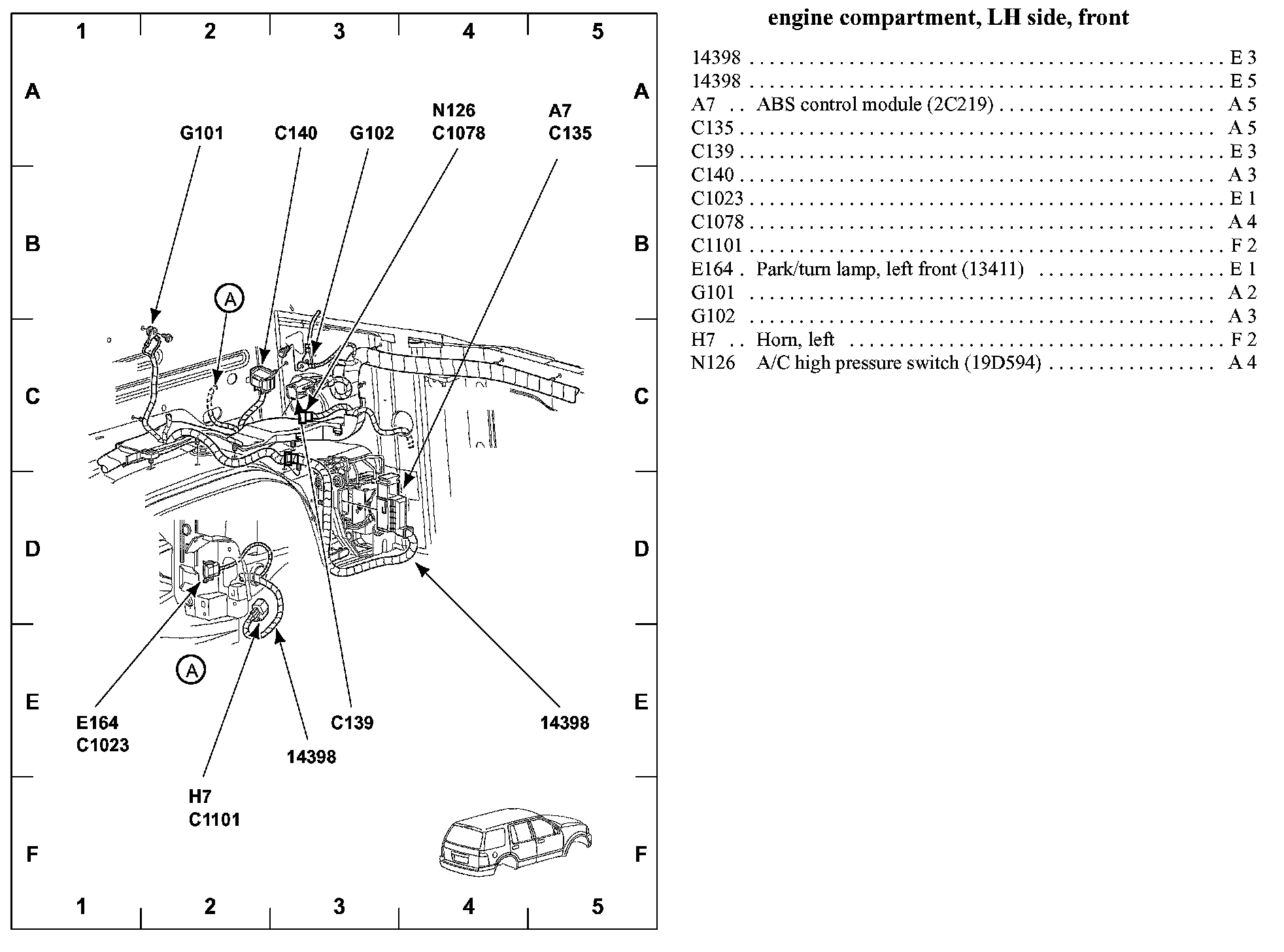

View 151-19 (Engine Compartment, LH Side, Front):

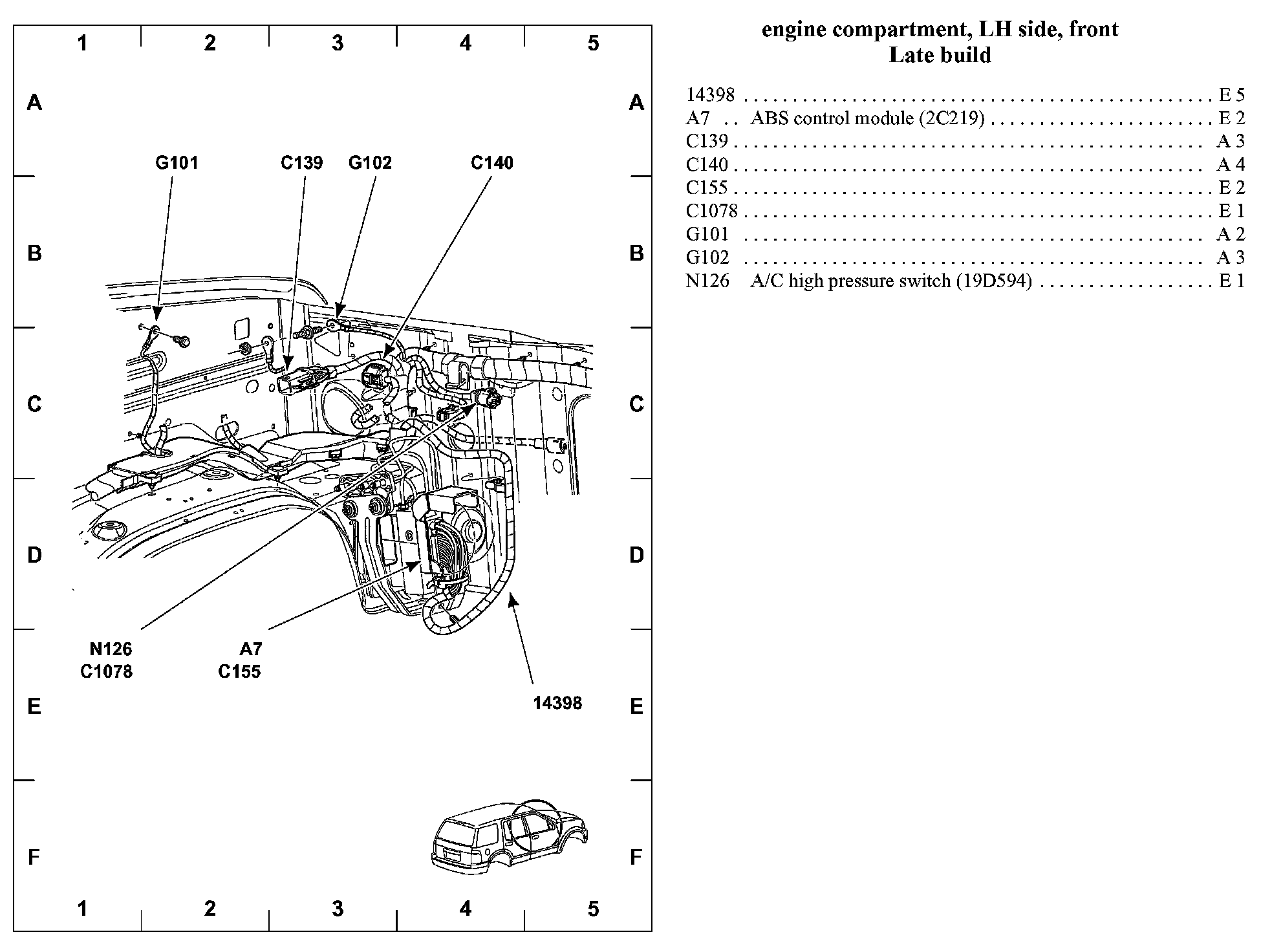

View 151-20 (Engine Compartment, LH Side, Front Late Build):
