Manual Transmission/Transaxle
>>

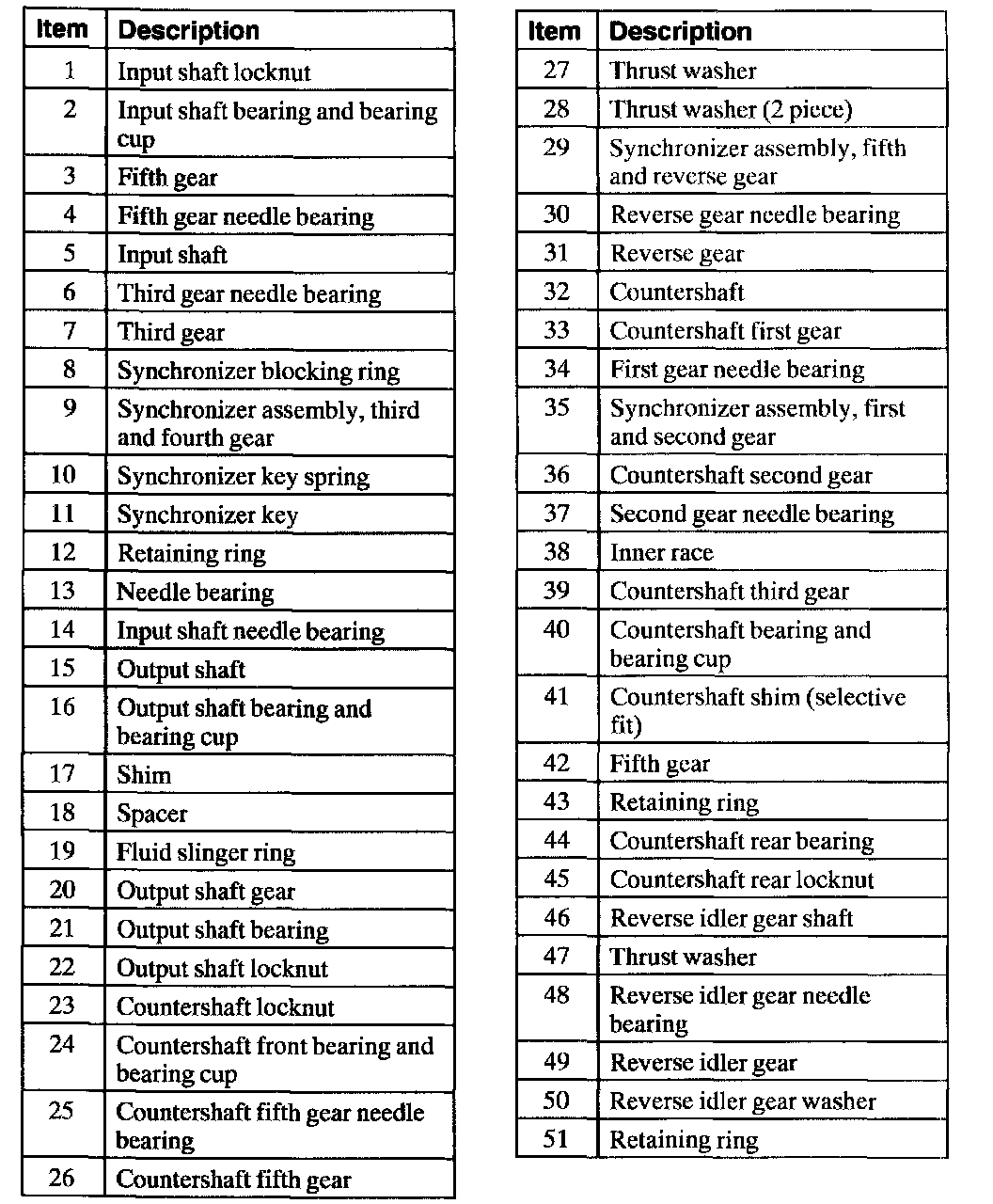

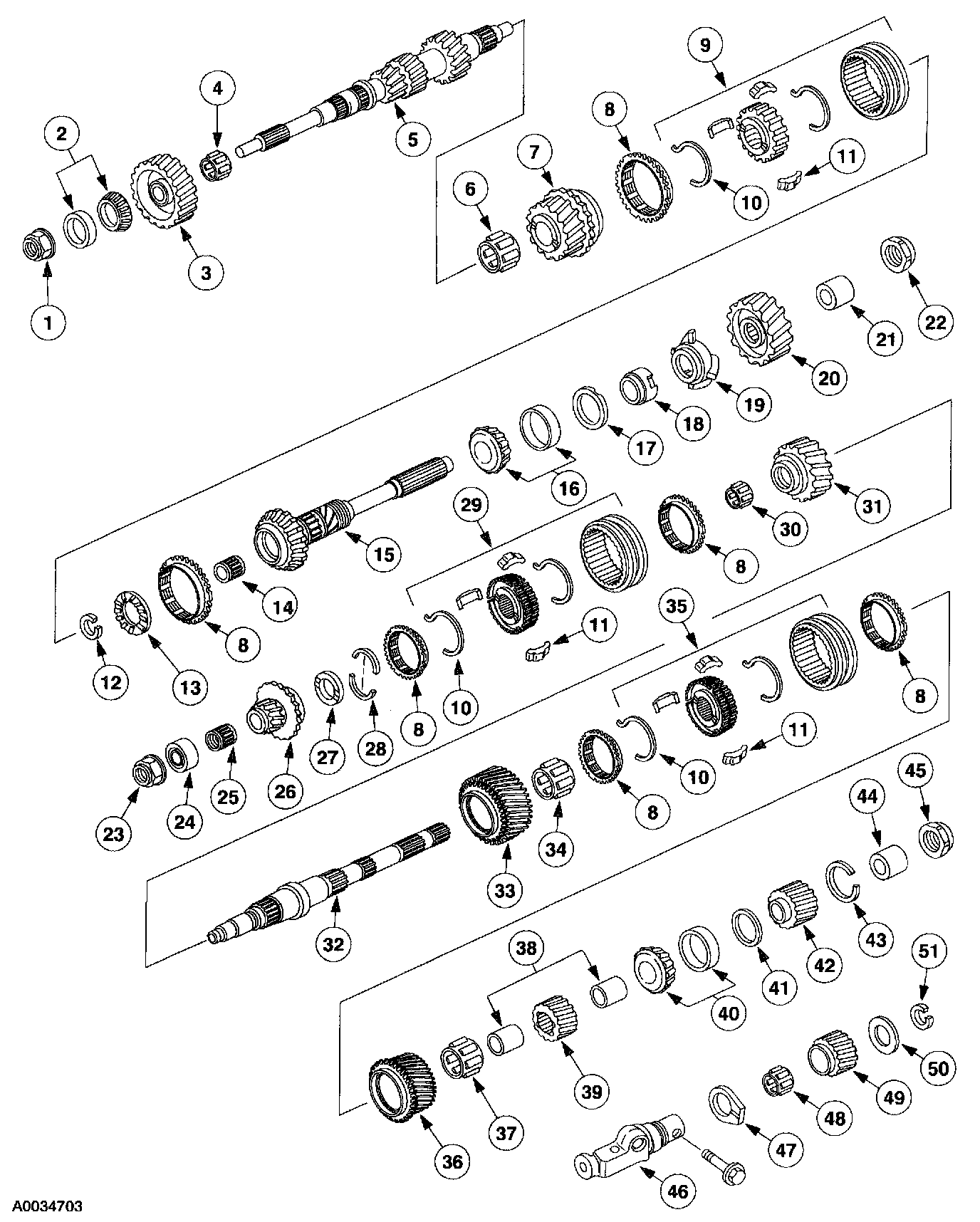

Transmission Internal Components-Disassembled View
Transmission Internal Components-Disassembled View
Transmission Internal Components-Disassembled View
Part 1 of 4
Part 2 of 4
Part 3 of 4
Part 4 of 4
