Home >> Ford >> 2002 >> Explorer 2WD V8-4.6L VIN W >> Repair and Diagnosis >> Accessories and Optional Equipment >> General Module >> Testing and Inspection >> Pinpoint Tests >> Generic Electronic Module (GEM)

Generic Electronic Module (GEM)

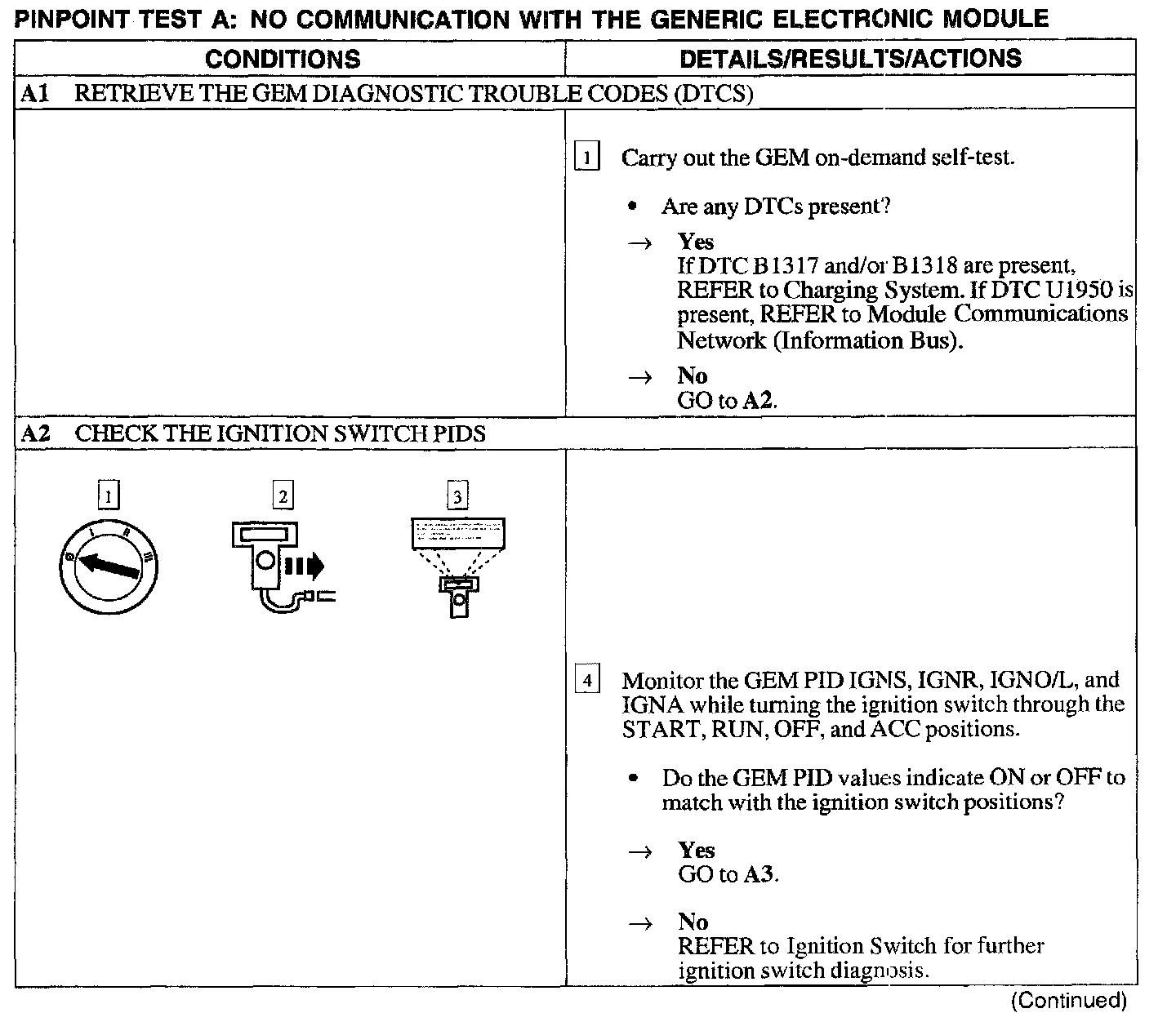

A1 - A2:

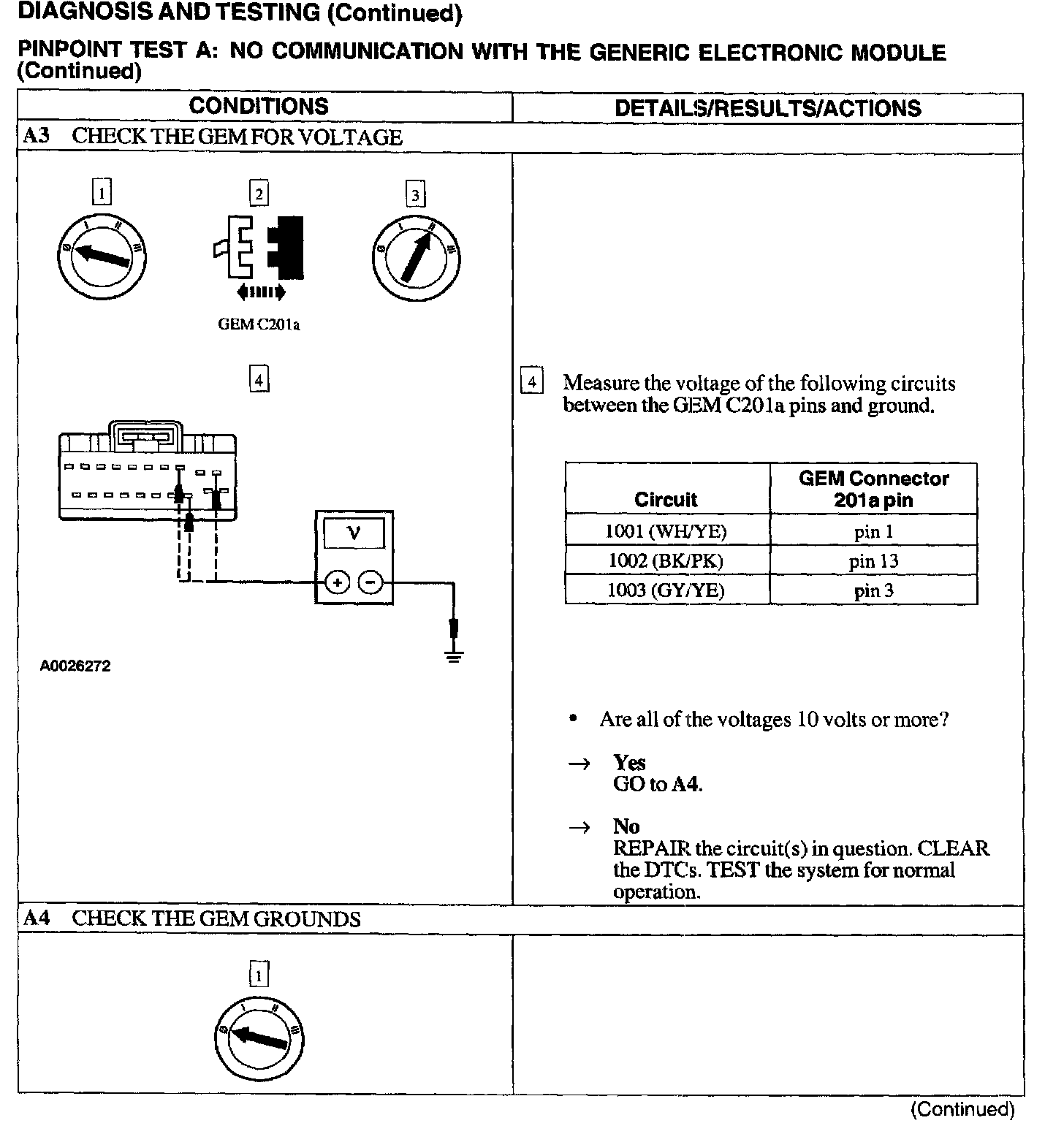

A3 - A4:

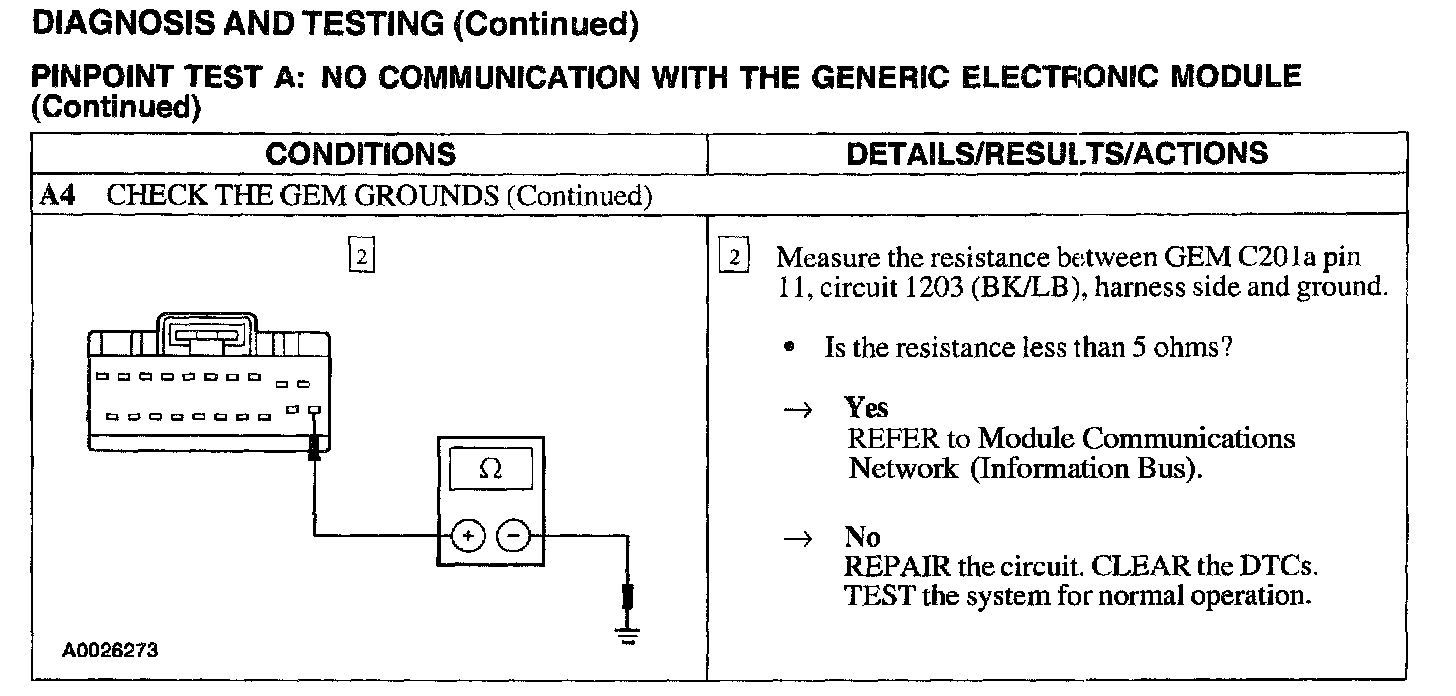

A4:
