Symptom Related Diagnostic Procedures

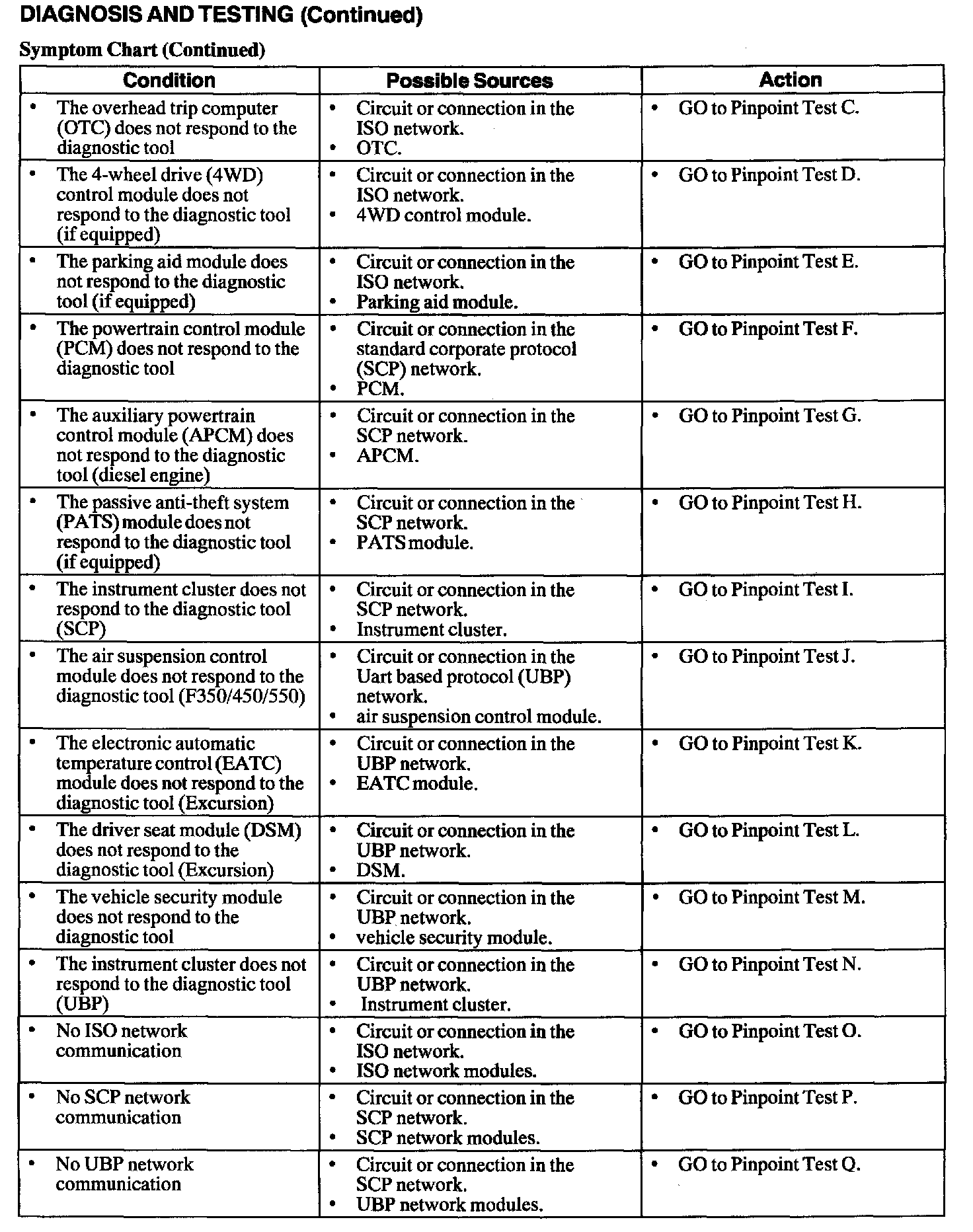

Symptom Chart, Part 1:






Symptom Chart, Part 2:






Symptom Chart, Part 3:
