Home >> Ford >> 2002 >> Excursion 4WD V10-6.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> System Diagram

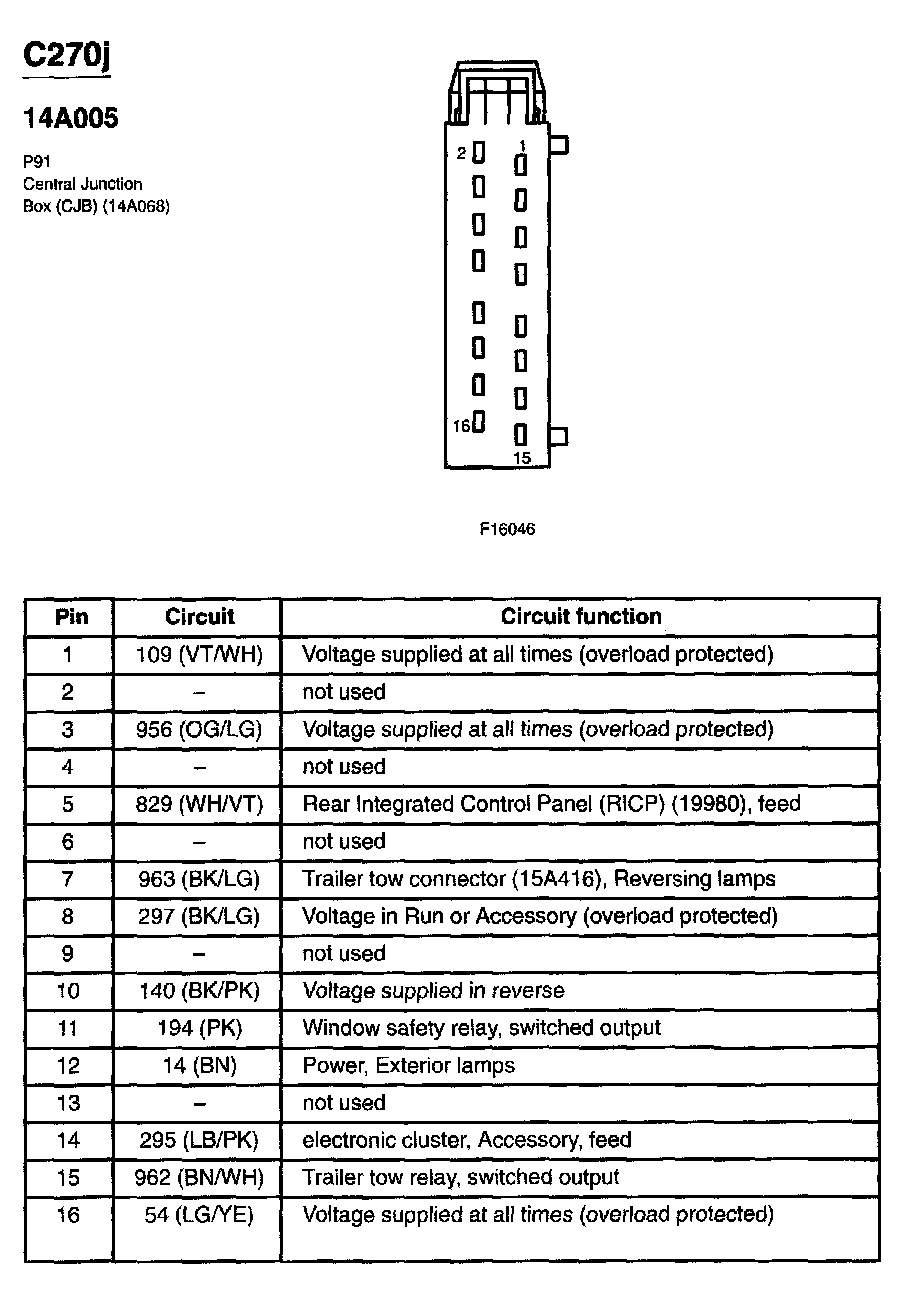

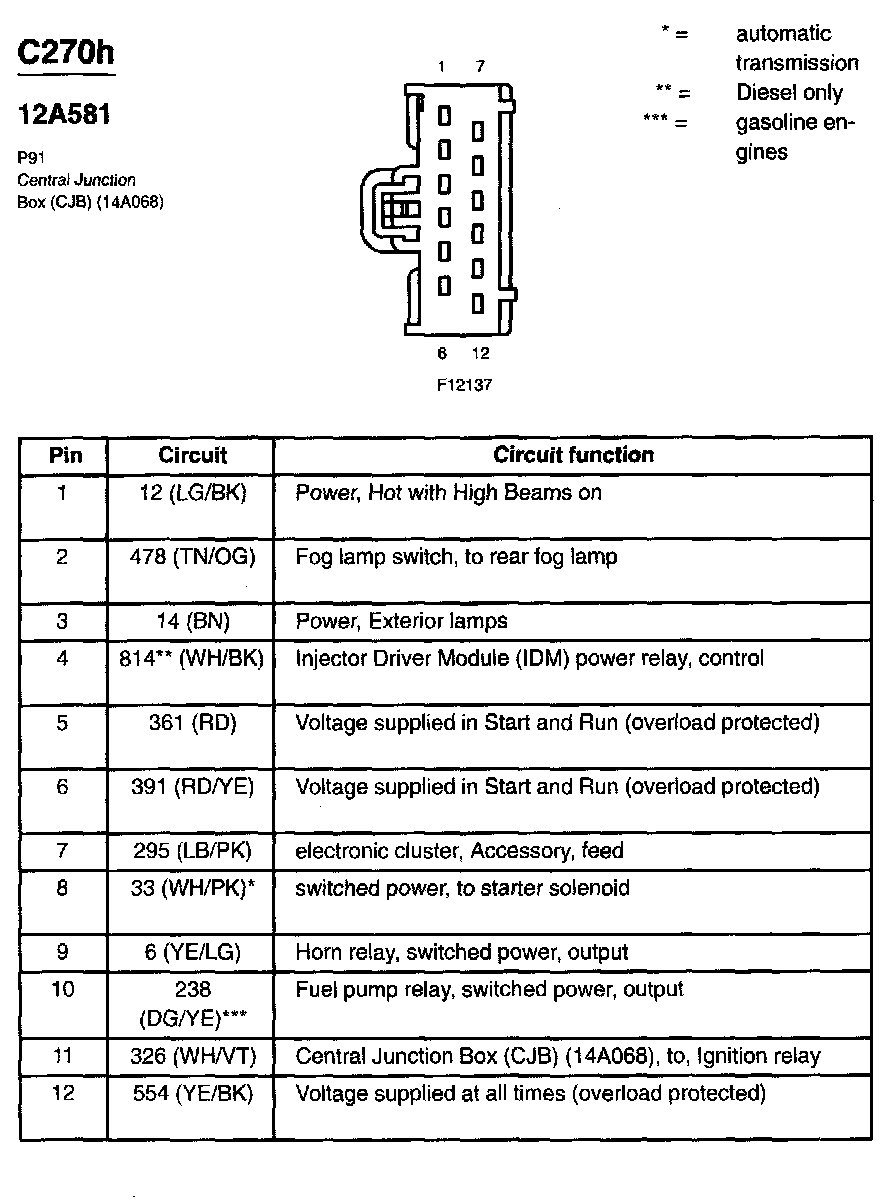

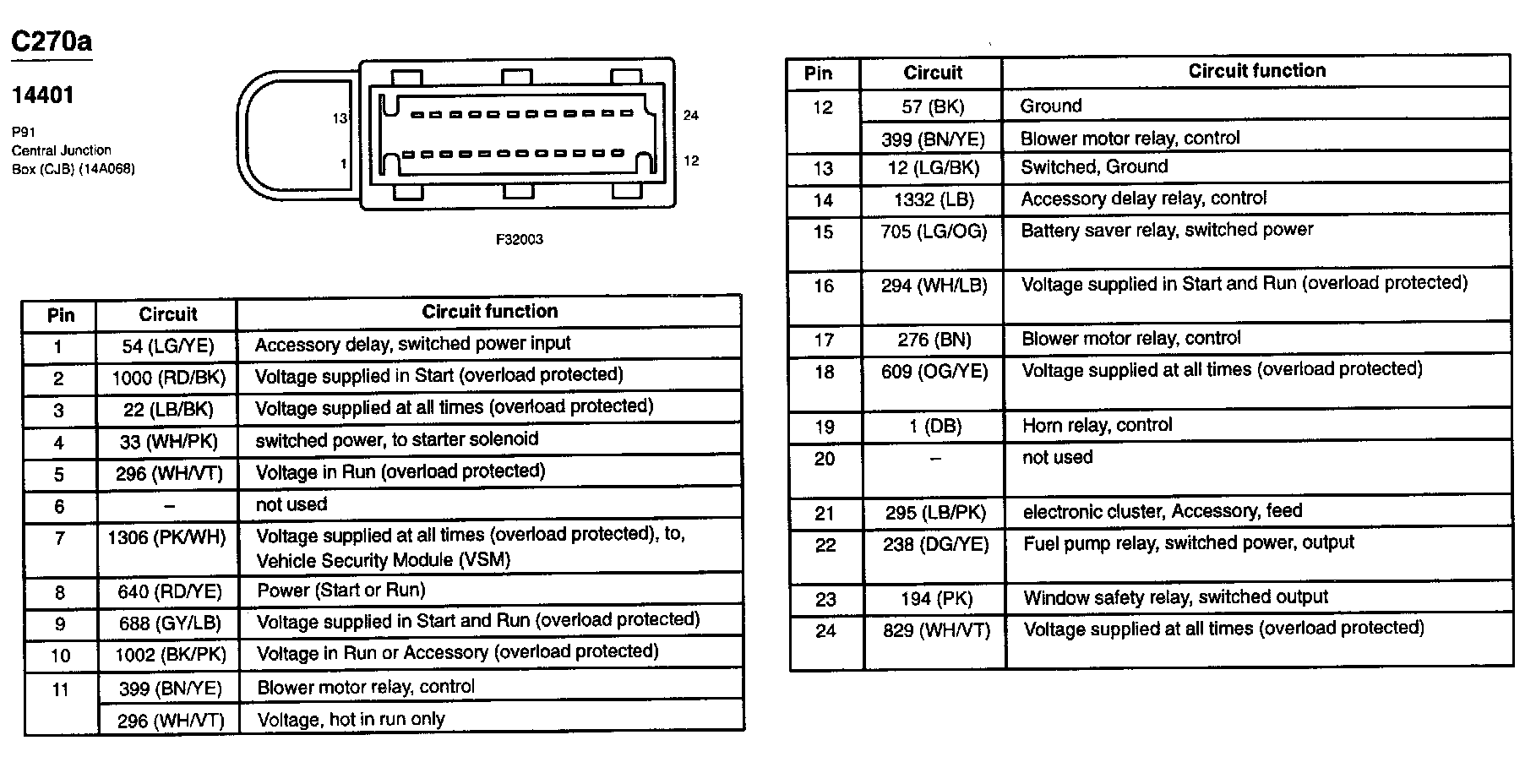

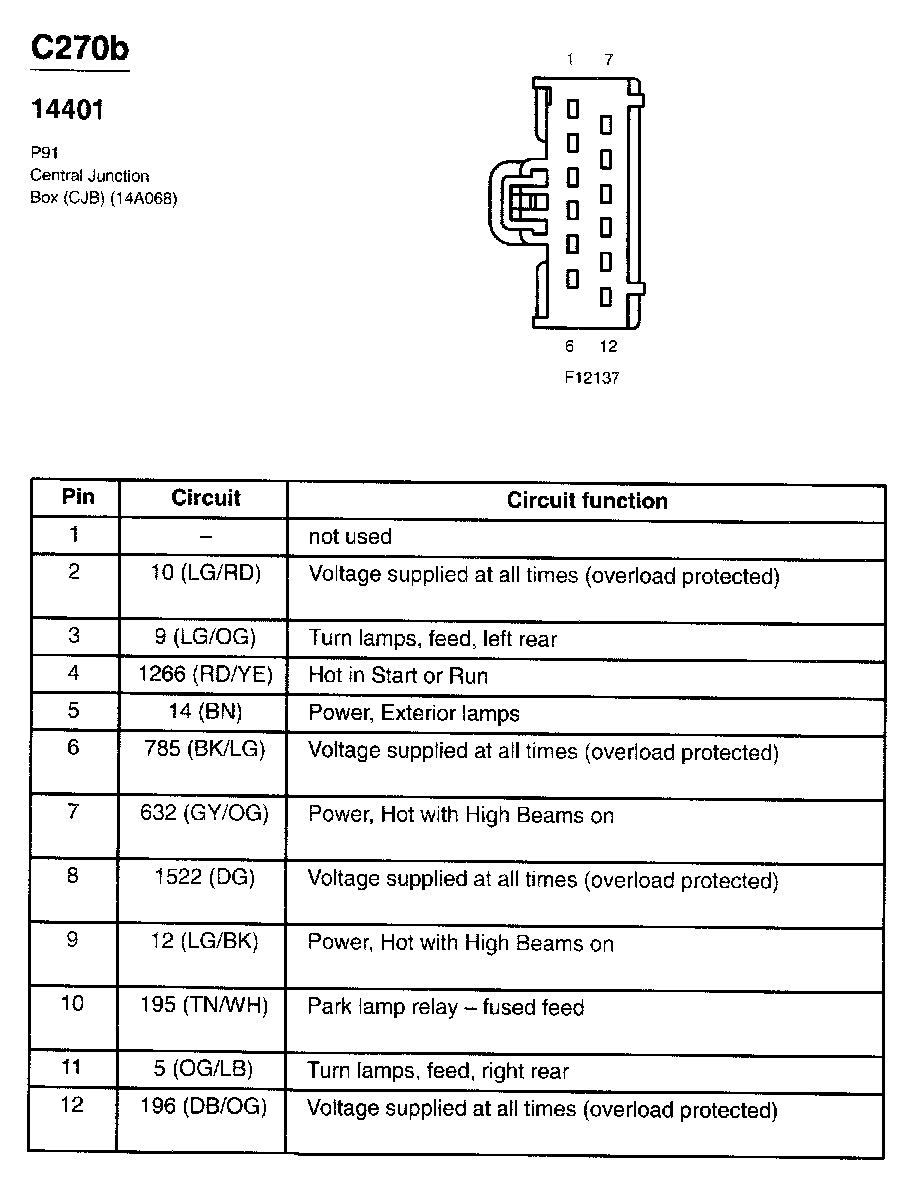

System Diagram
