Tests DA: Intake Air Temperature (IAT) Sensor

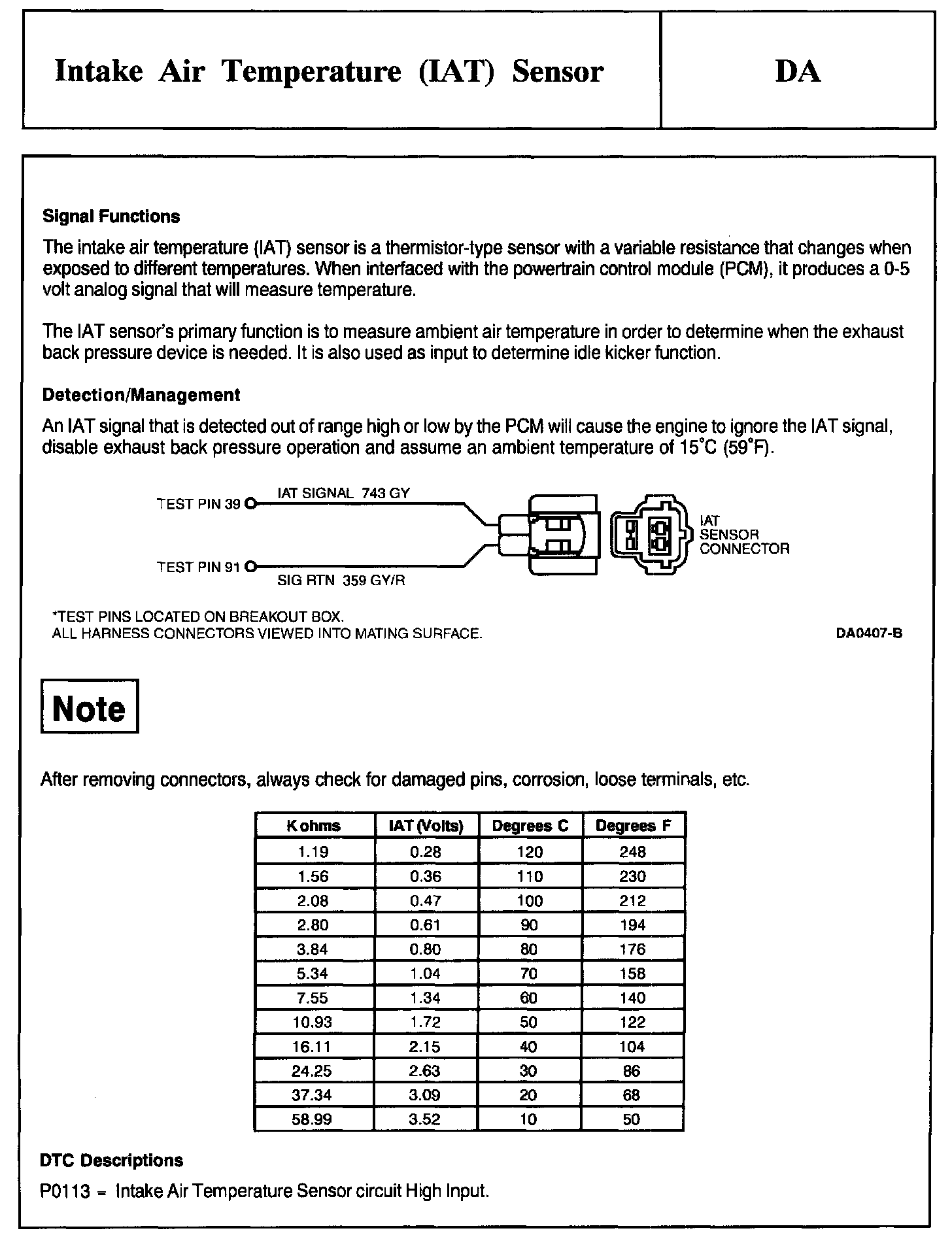

Description, Schematic, Note and Table:

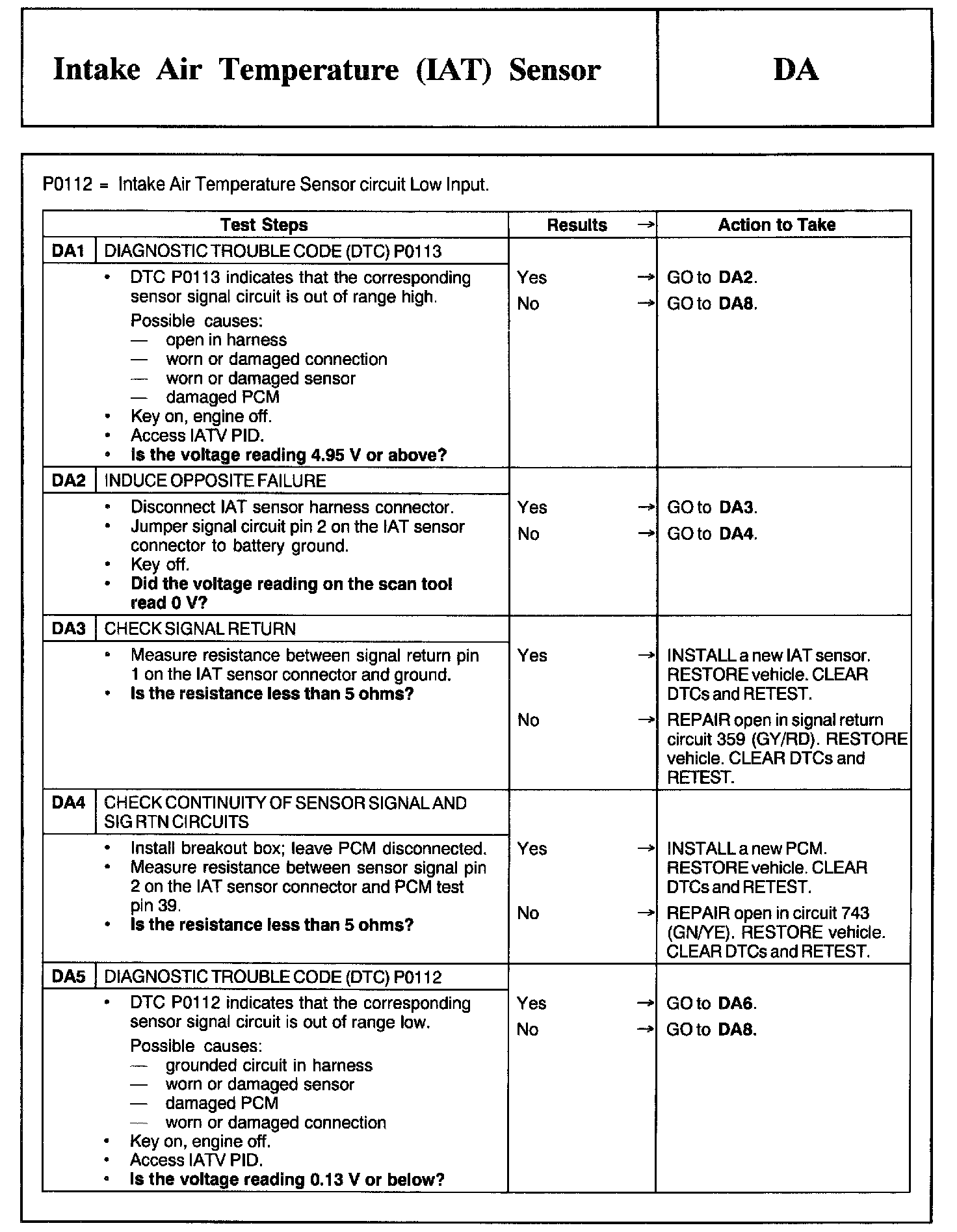

DA1 - DA5:

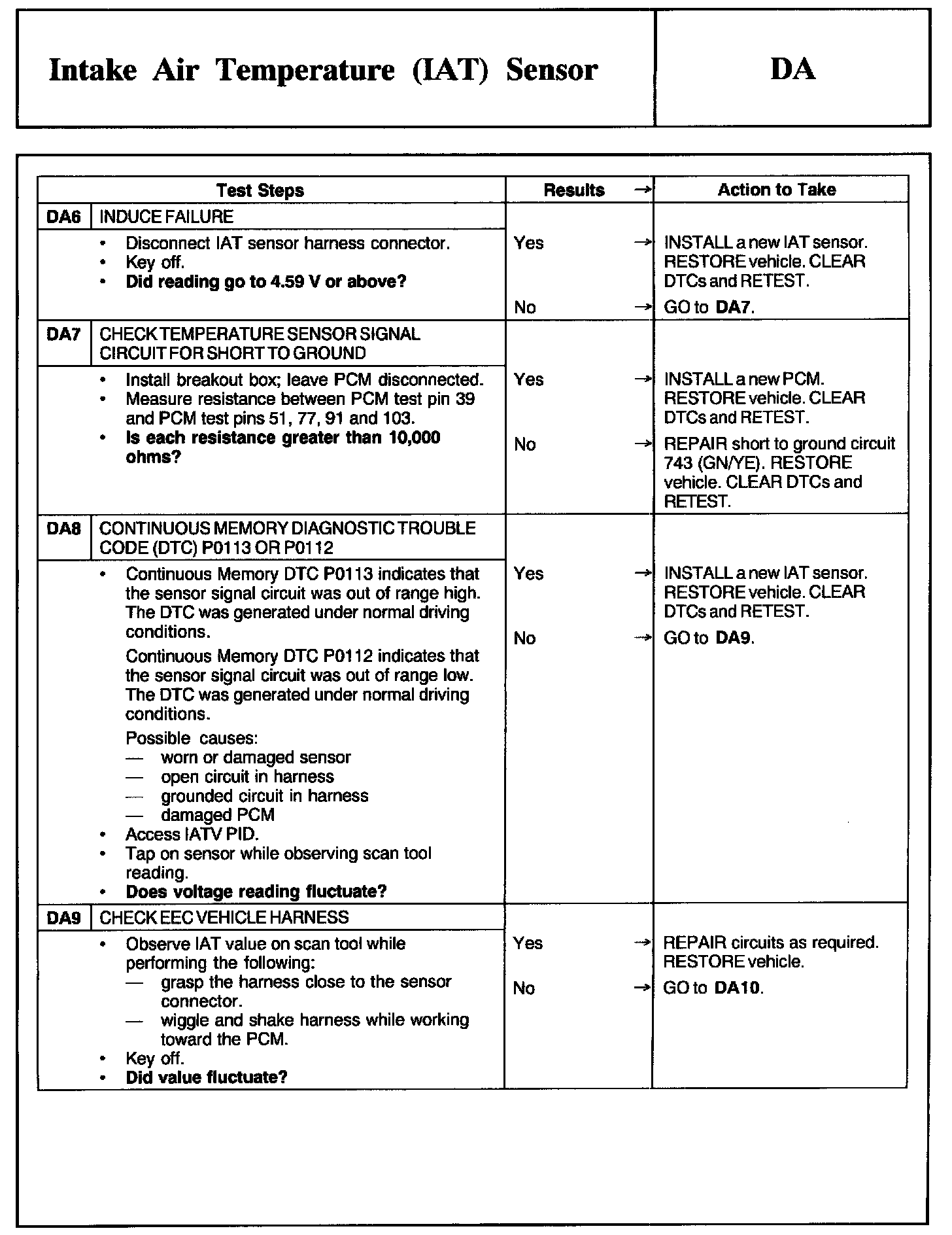

DA6 - DA9:

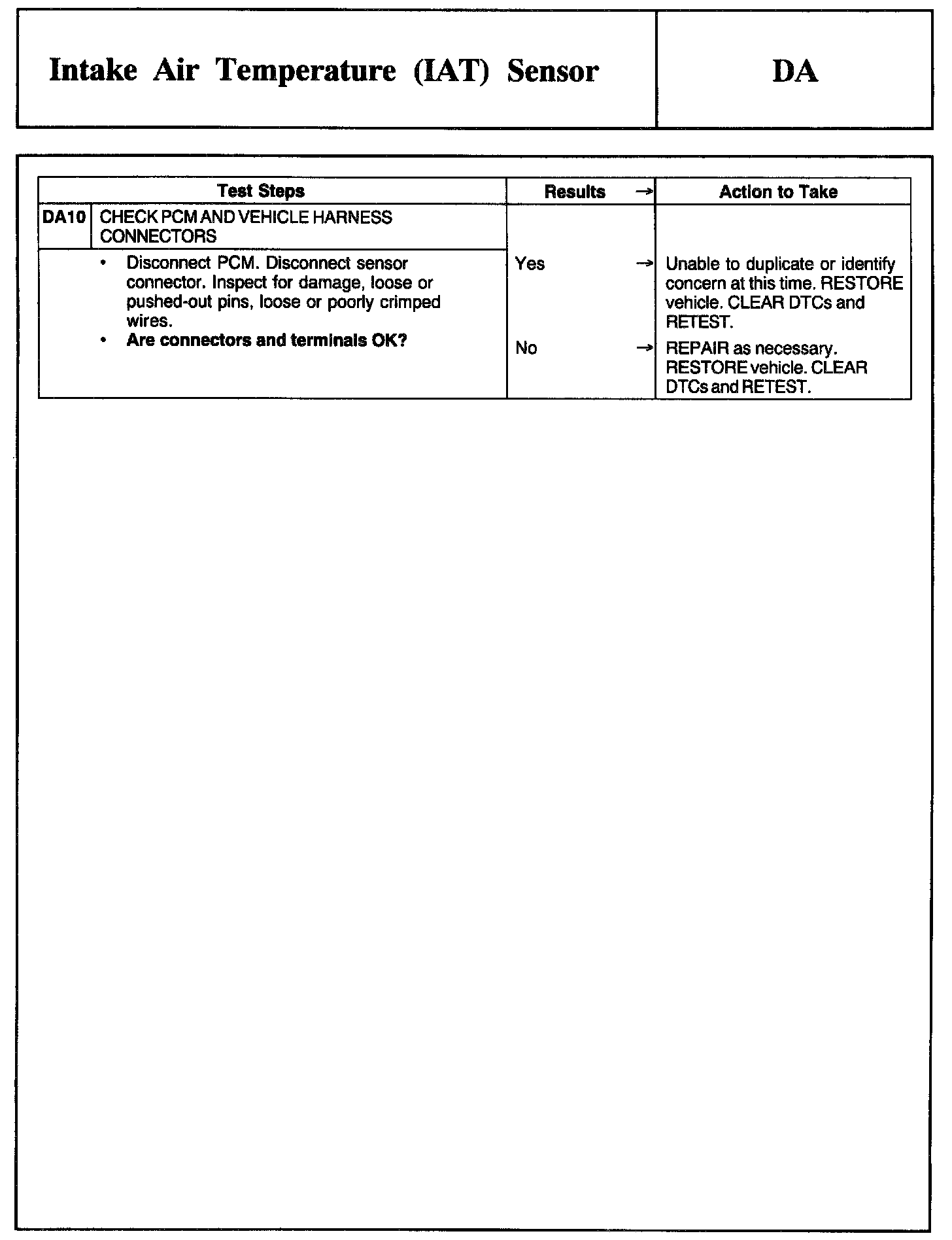

DA10:
