Test A: Vehicle Battery

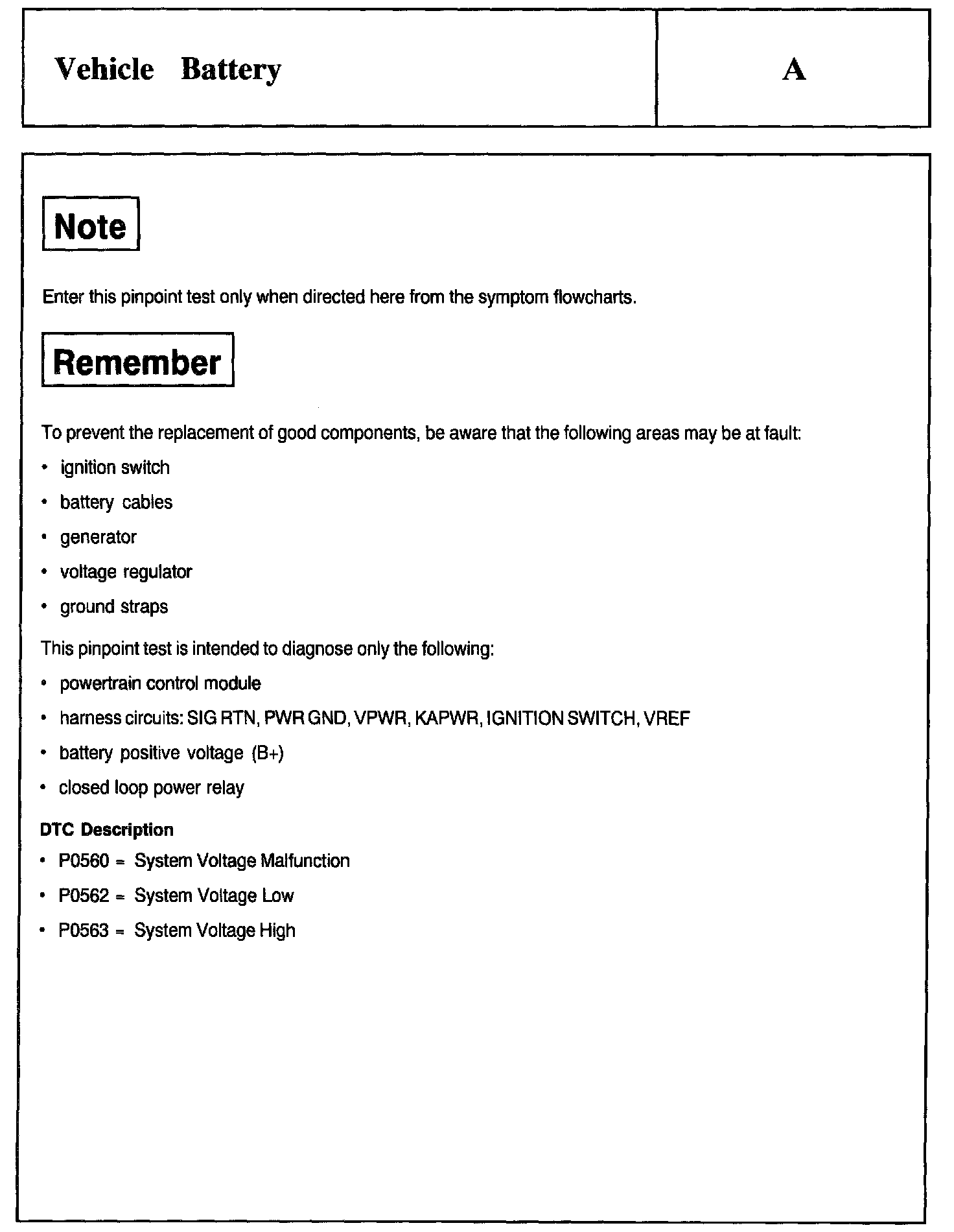

Note, Remember And Description:

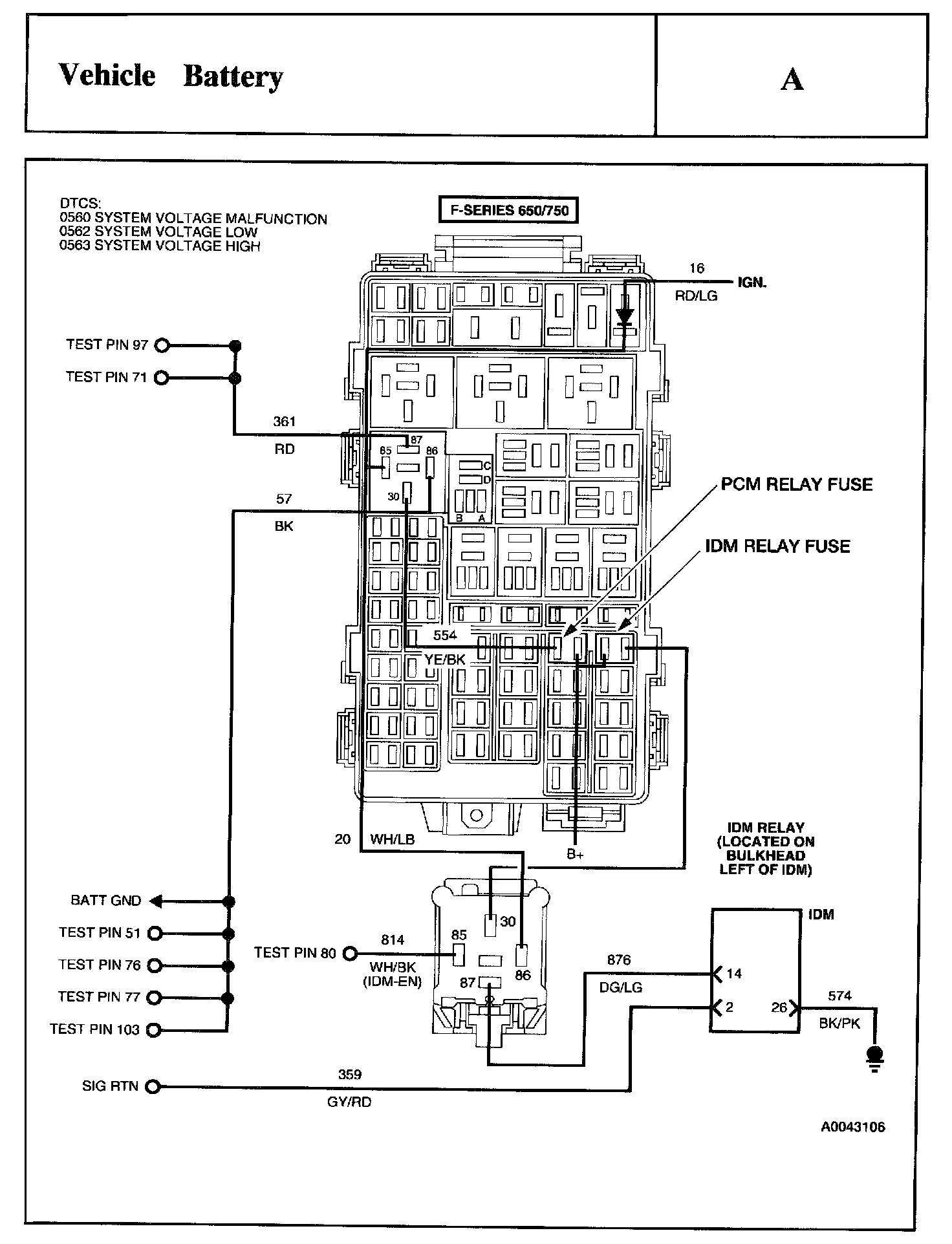

Test Schematic:

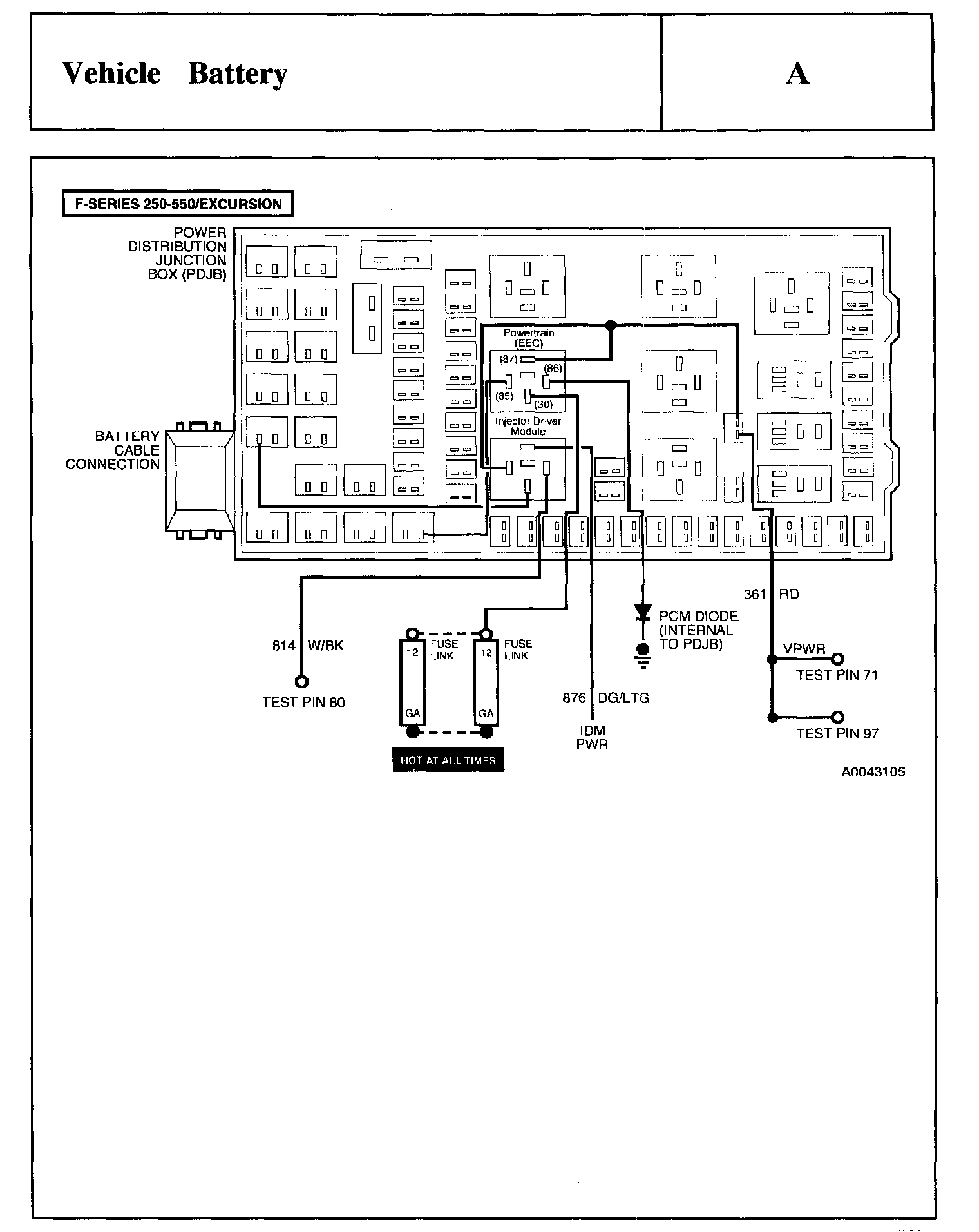

Test Schematic:

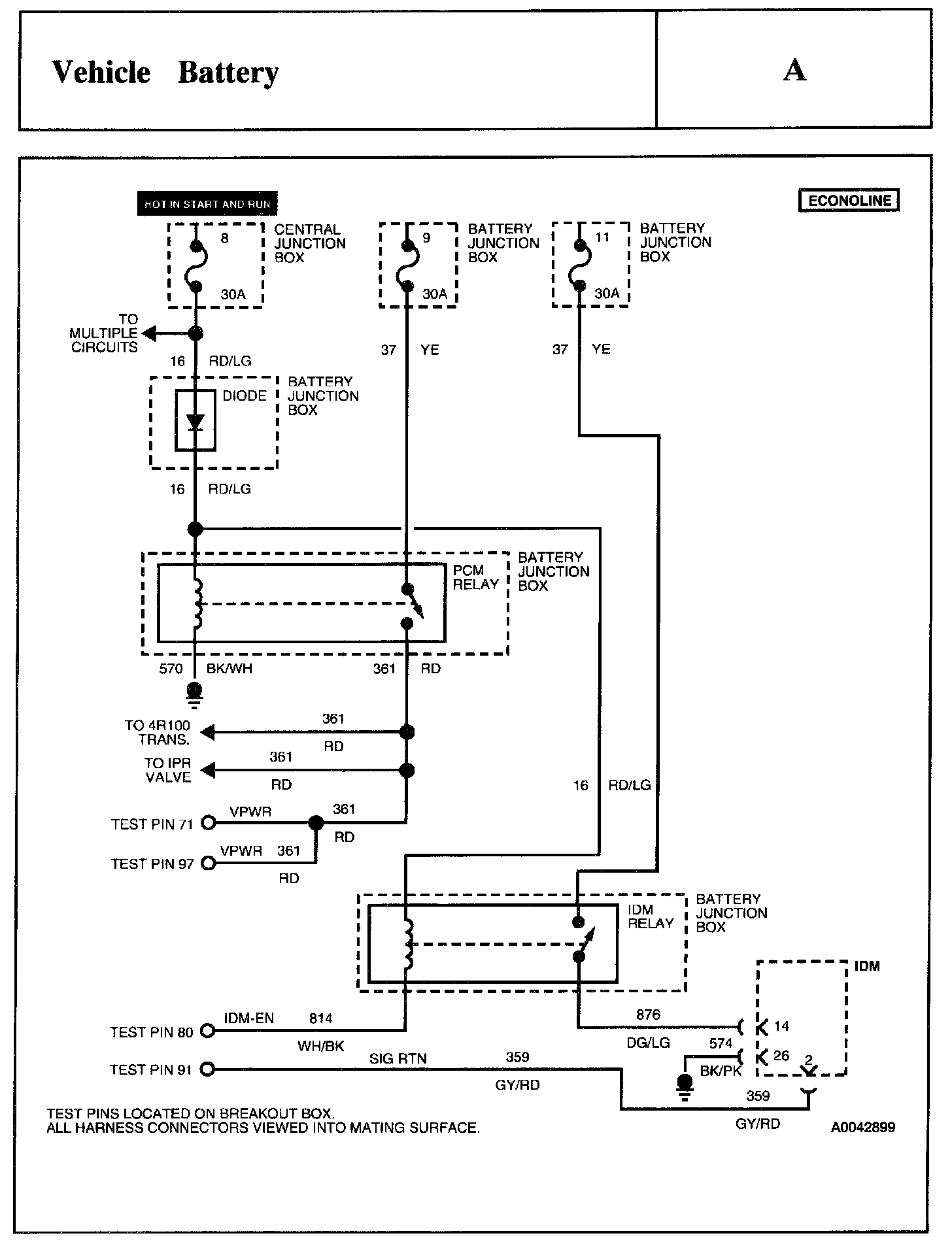

Test Schematic:

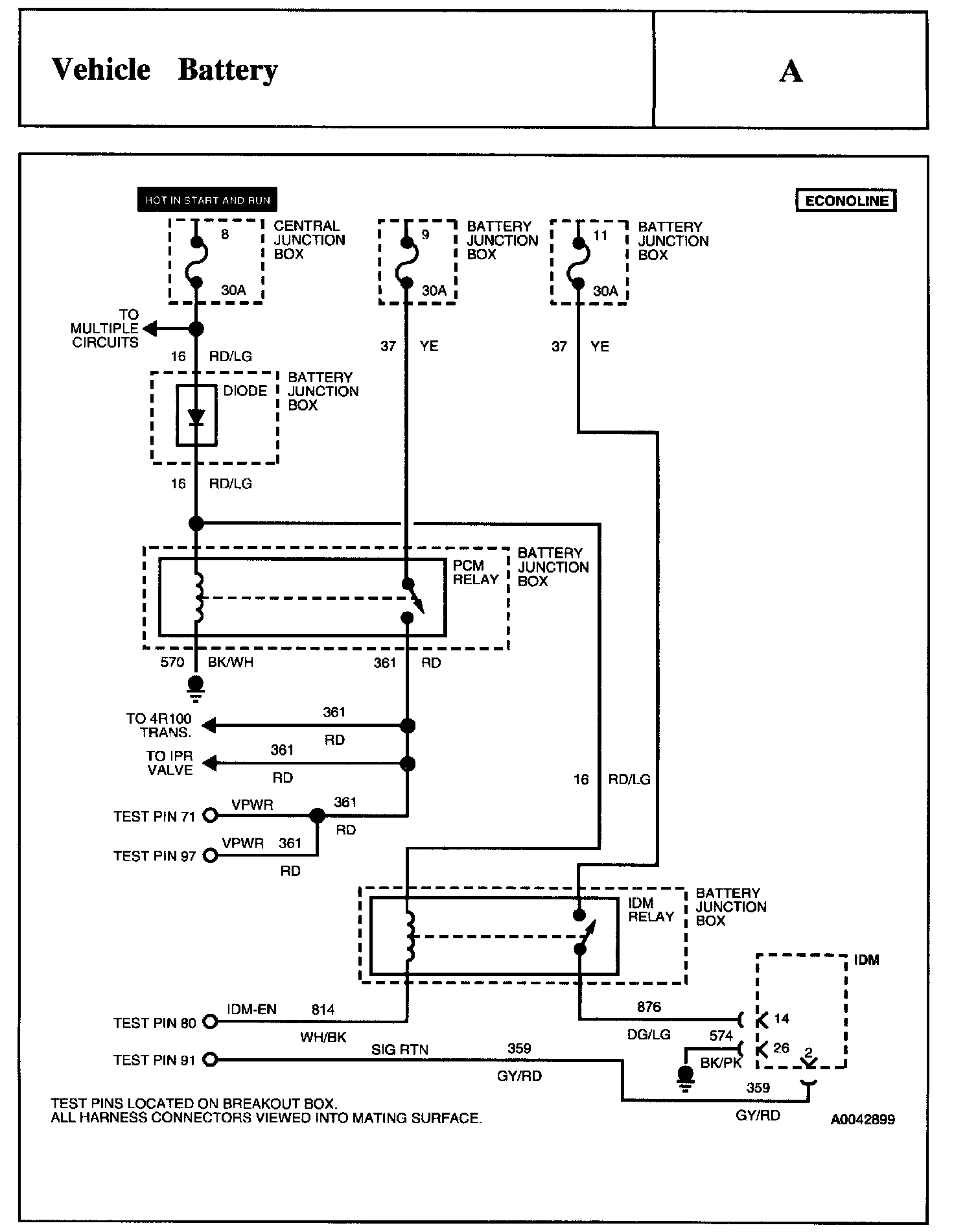

Test Schematic:

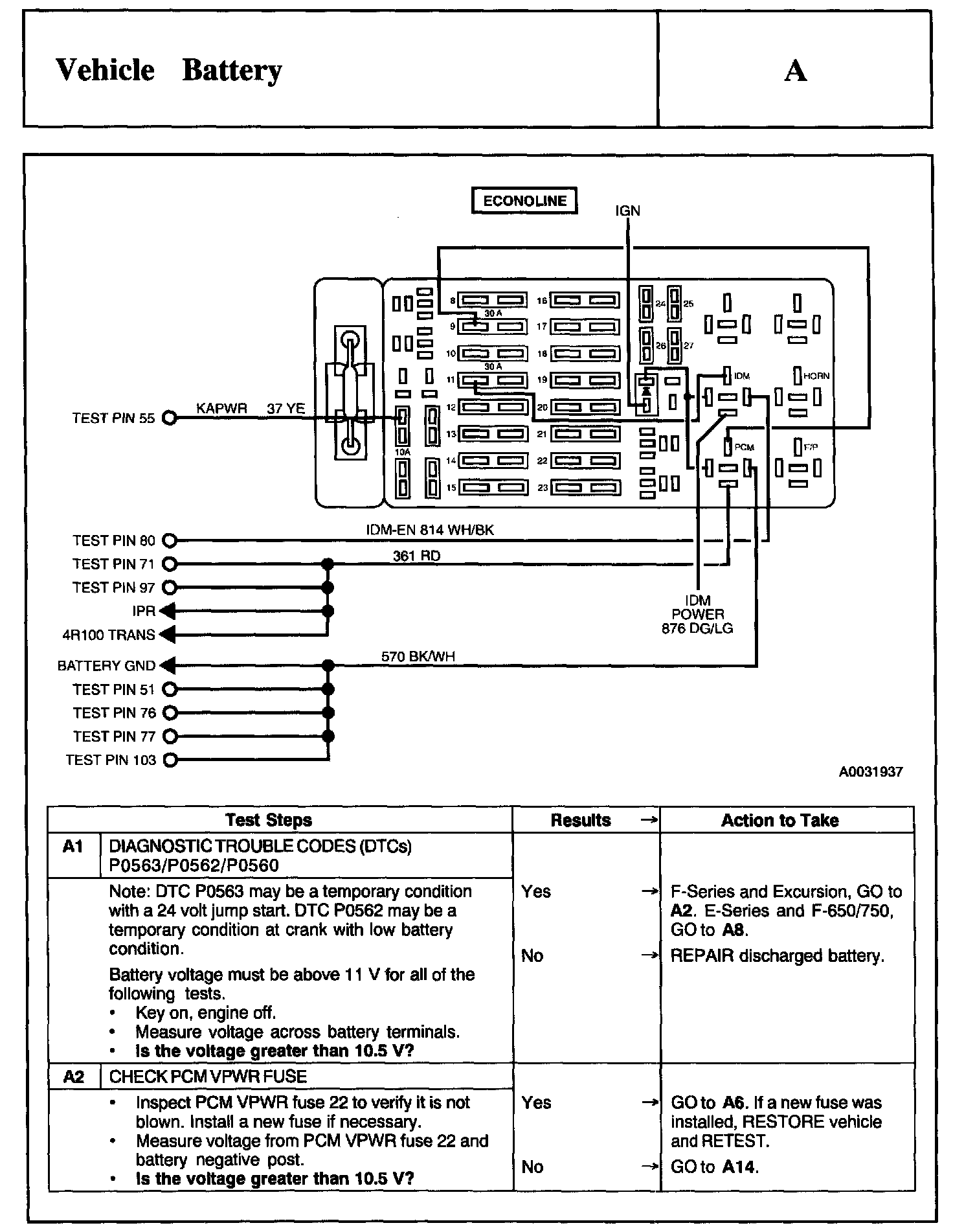

Schematic, Test A1 - A2:

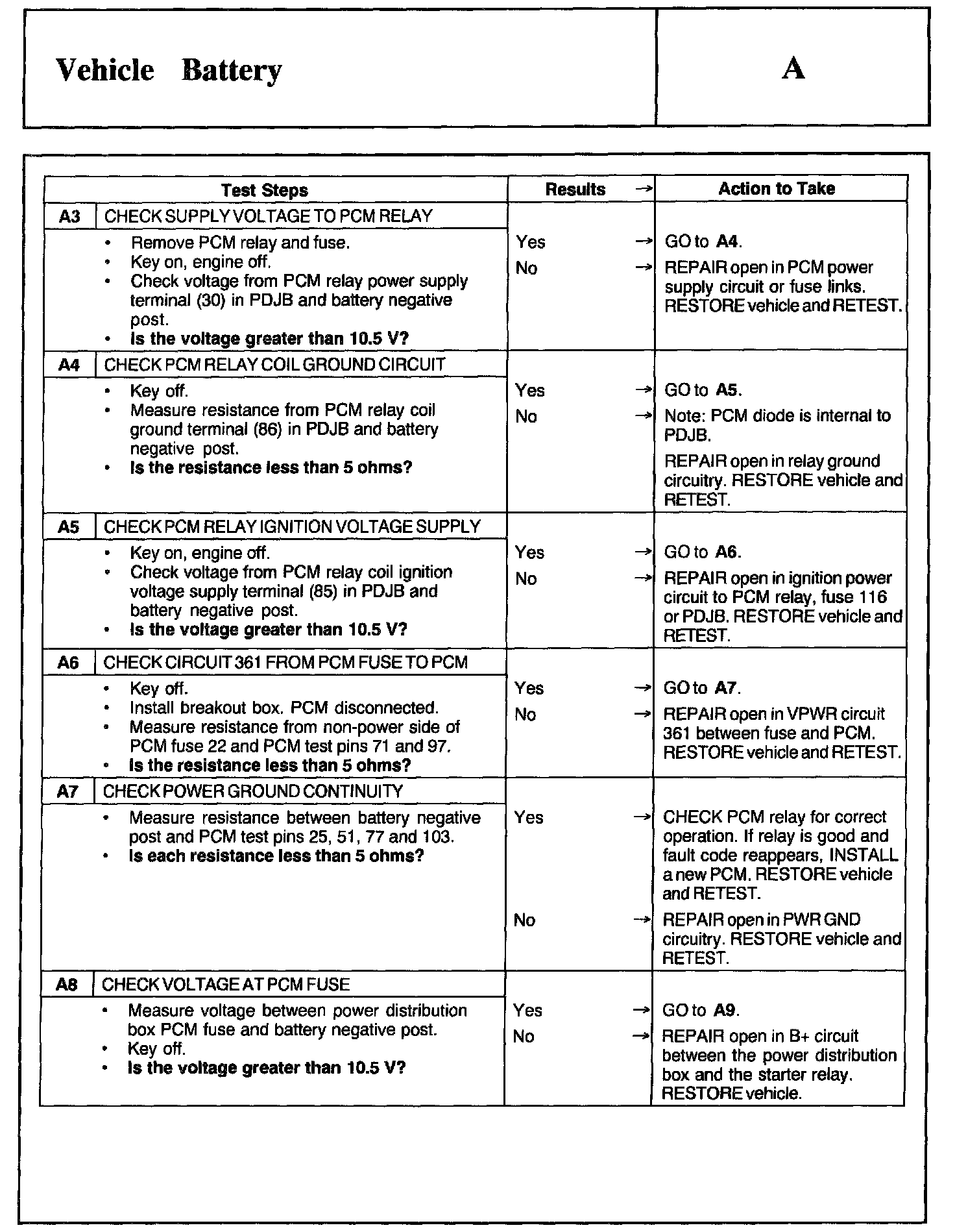

A3 - A8:

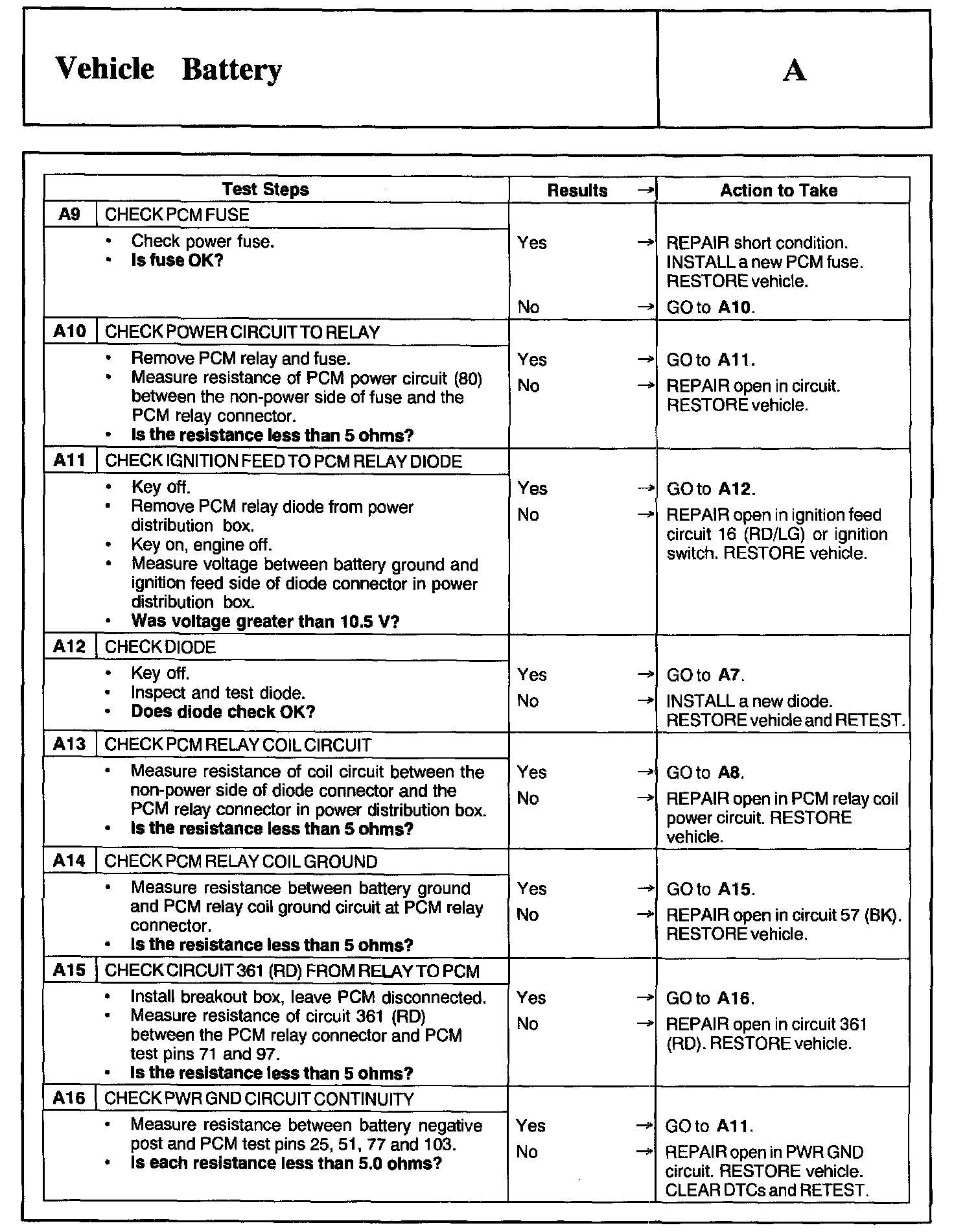

A9 - A16:

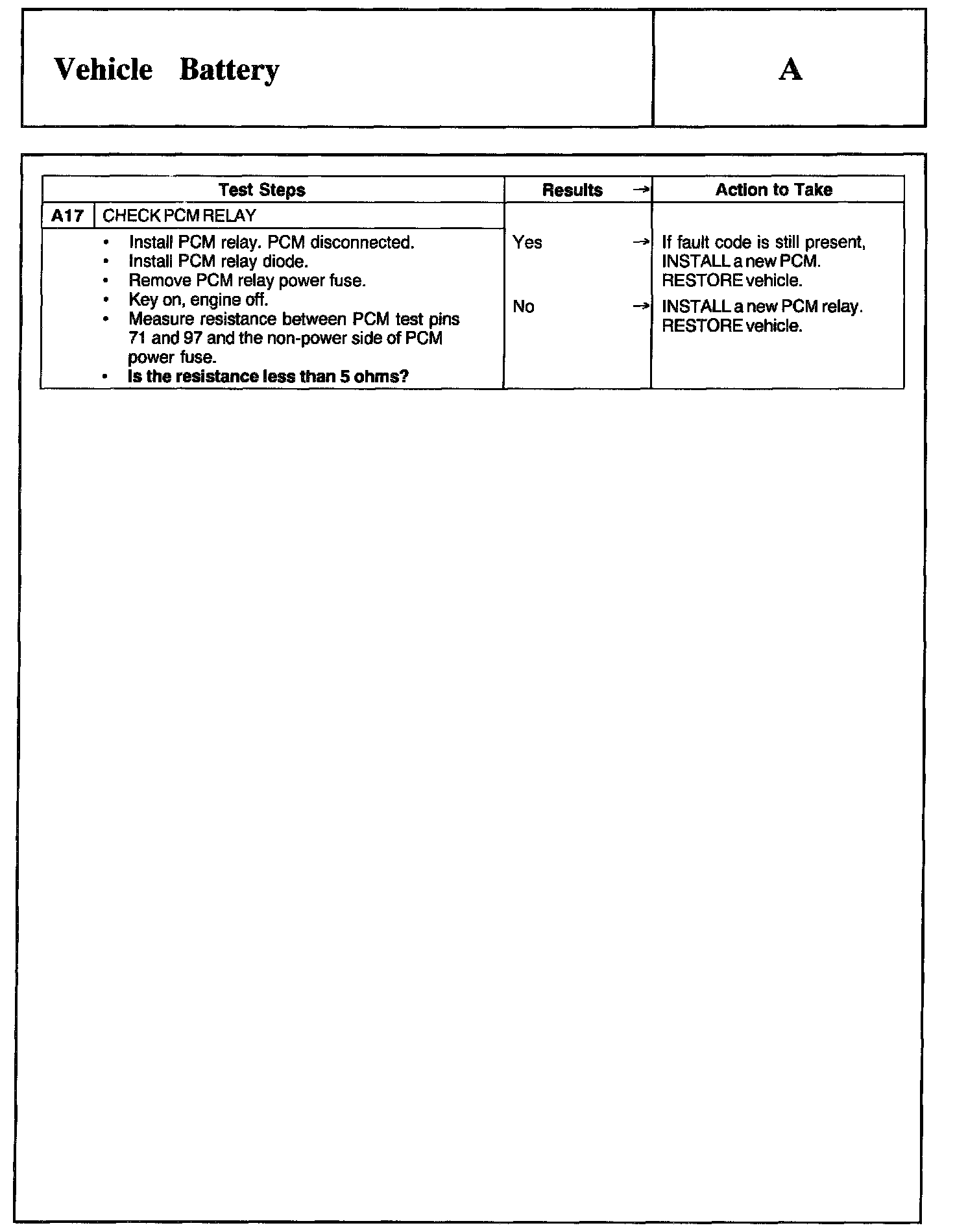

A17:
