Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Switch >> Testing and Inspection

Power Seat Switch: Testing and Inspection

Introduction To Component Testing:

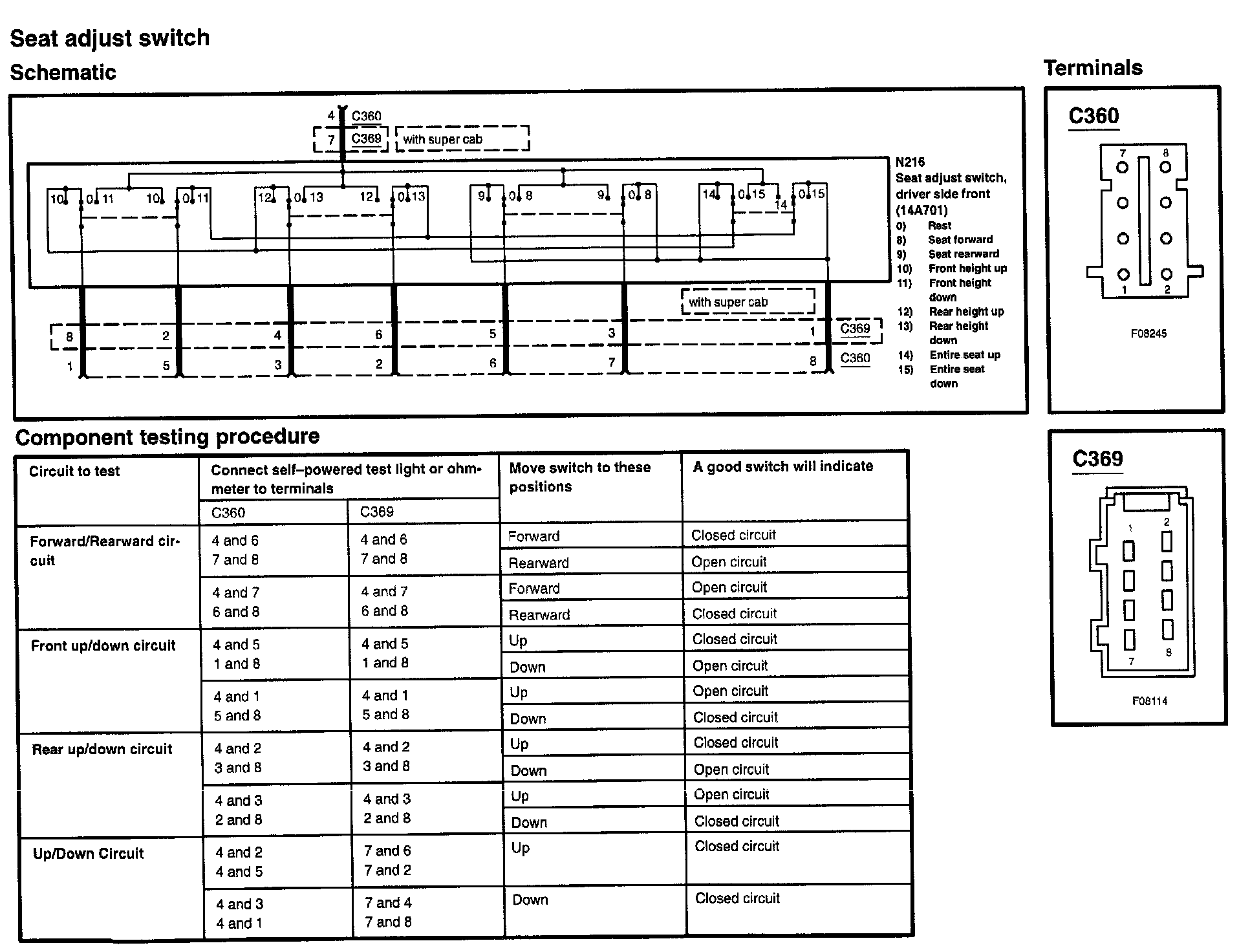

Seat Adjust Switch:

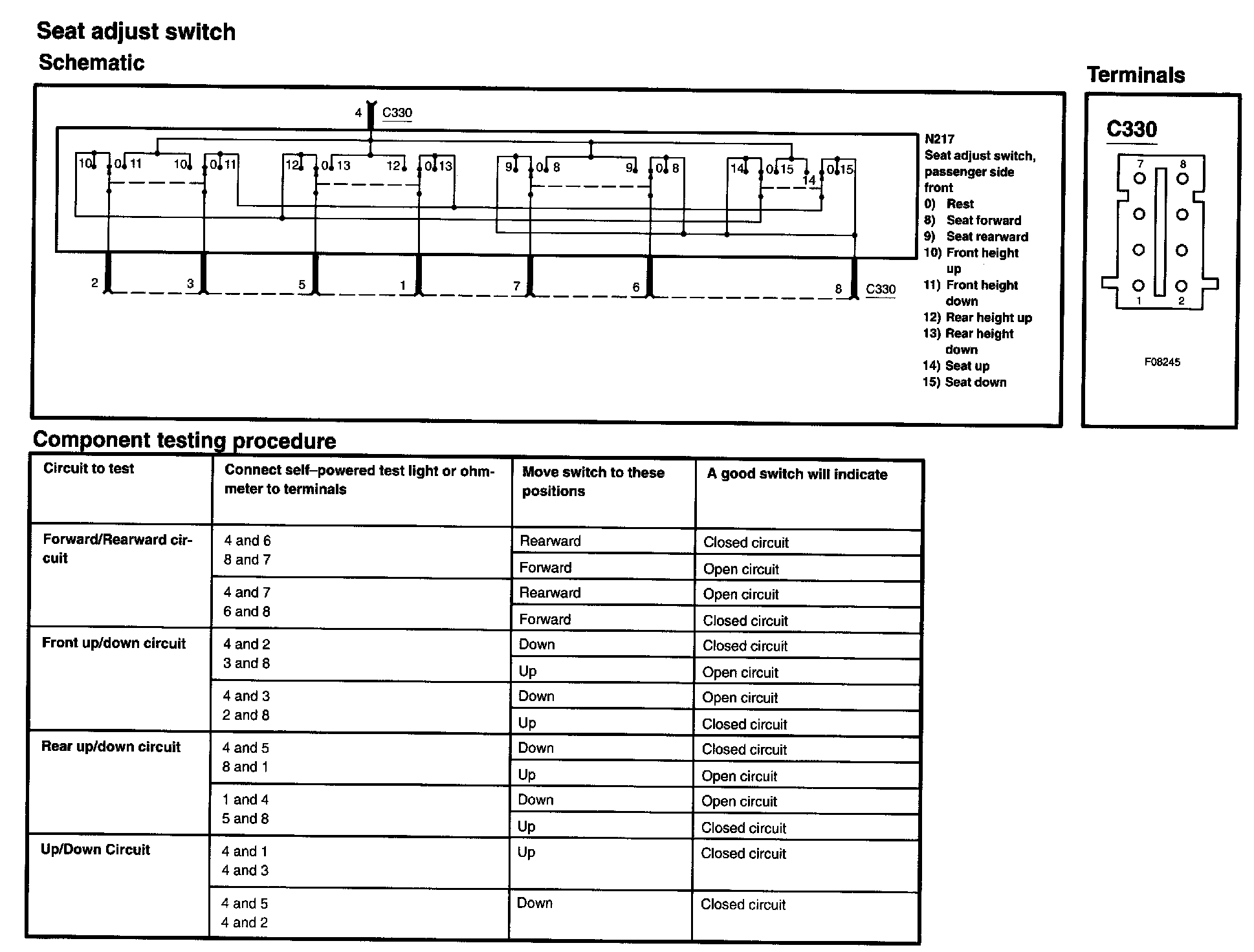

Seat Adjust Switch:
