Home >> Ford >> 2001 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test A: ABS Control Module Does Not Respond to the Scan Tool

Test A: ABS Control Module Does Not Respond to the Scan Tool

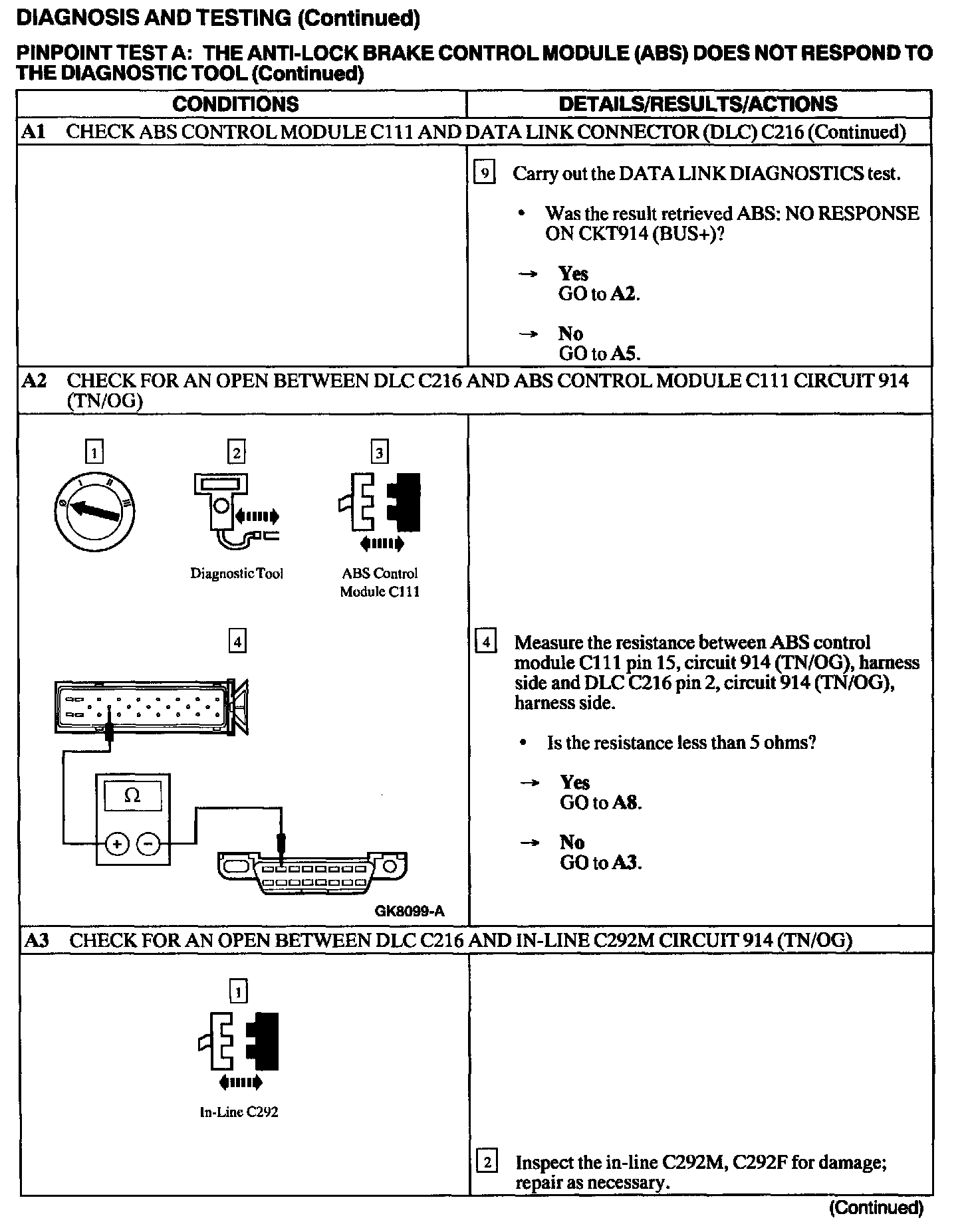

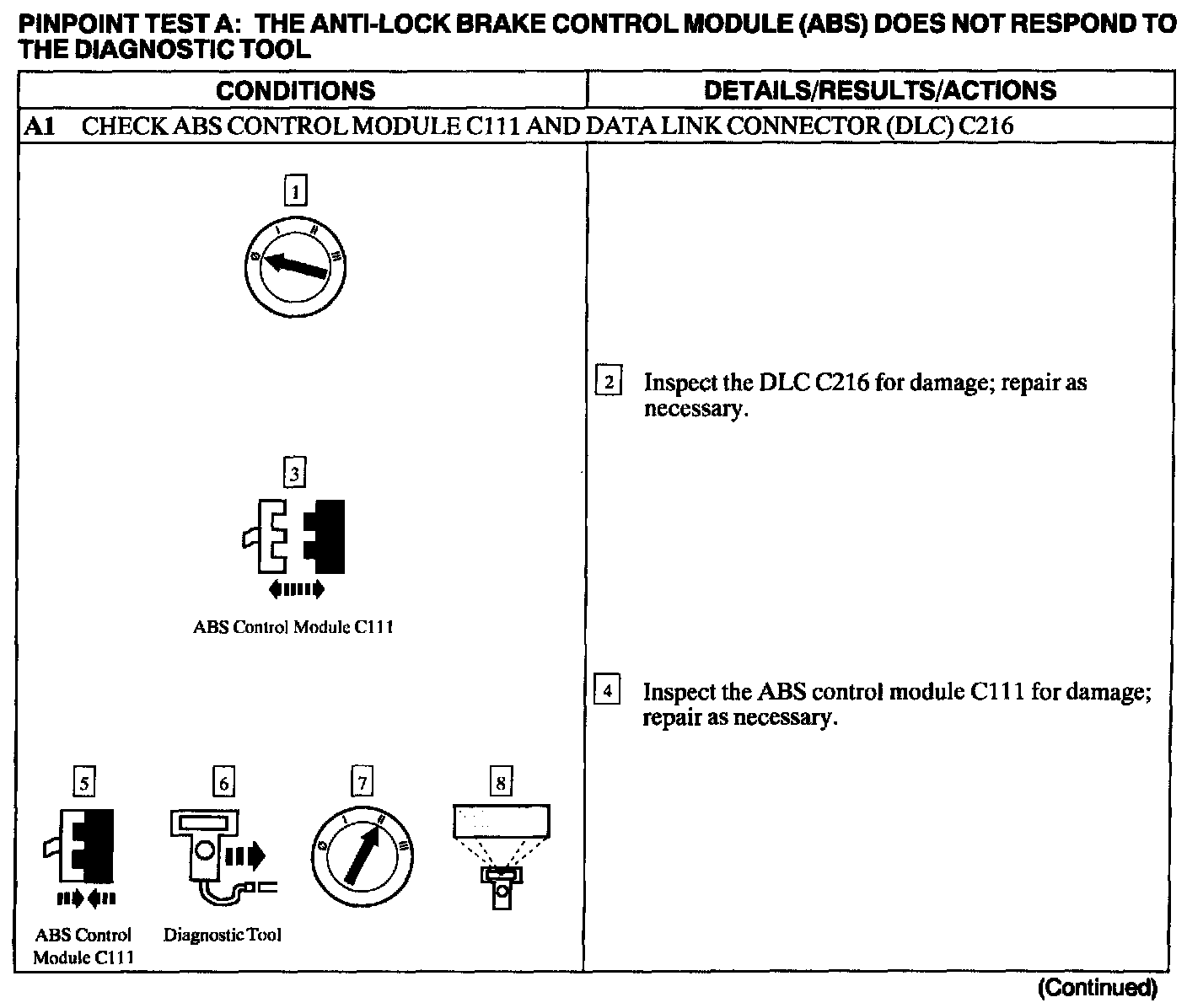

A1:

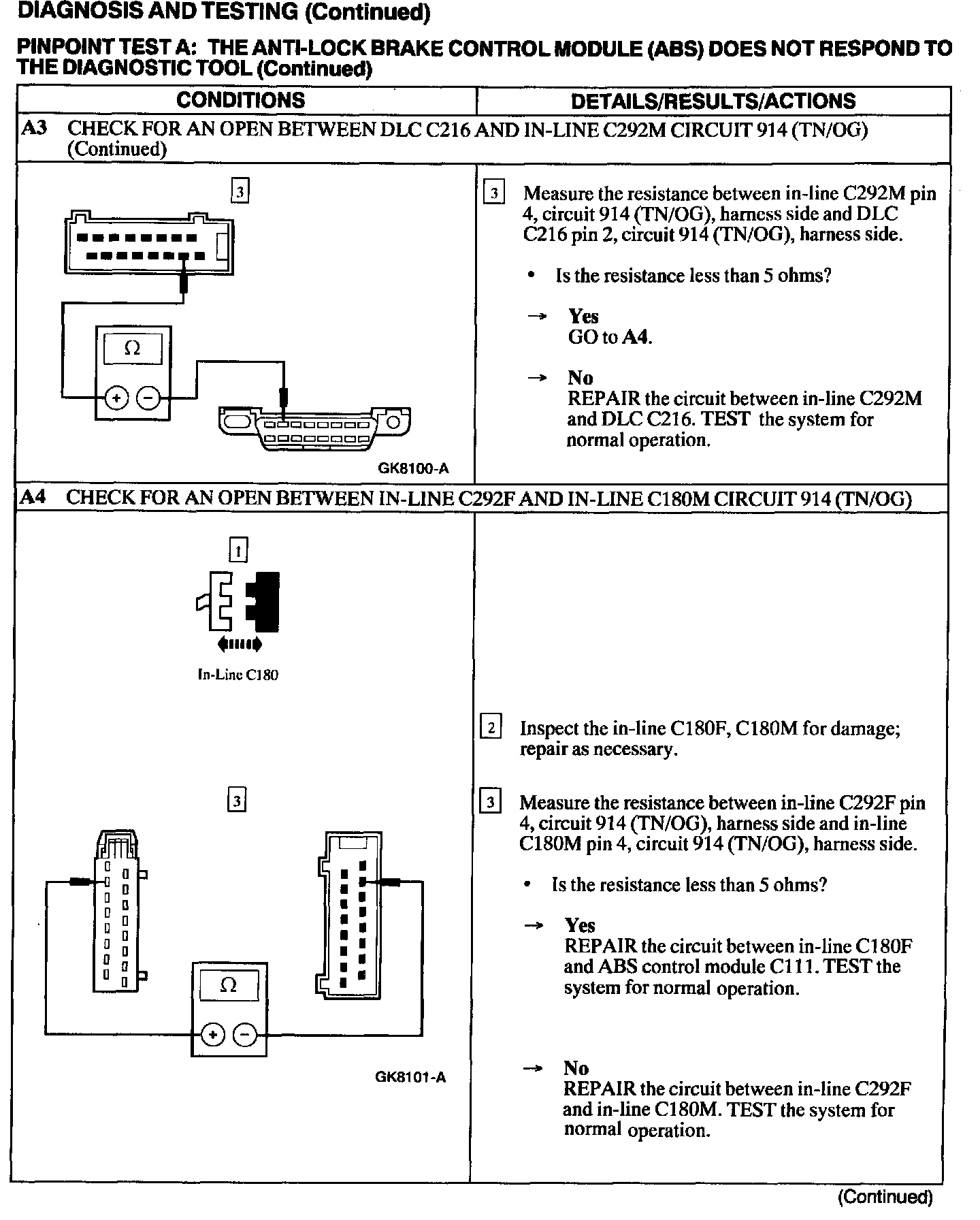

A1 - A3:






A3 - A4:

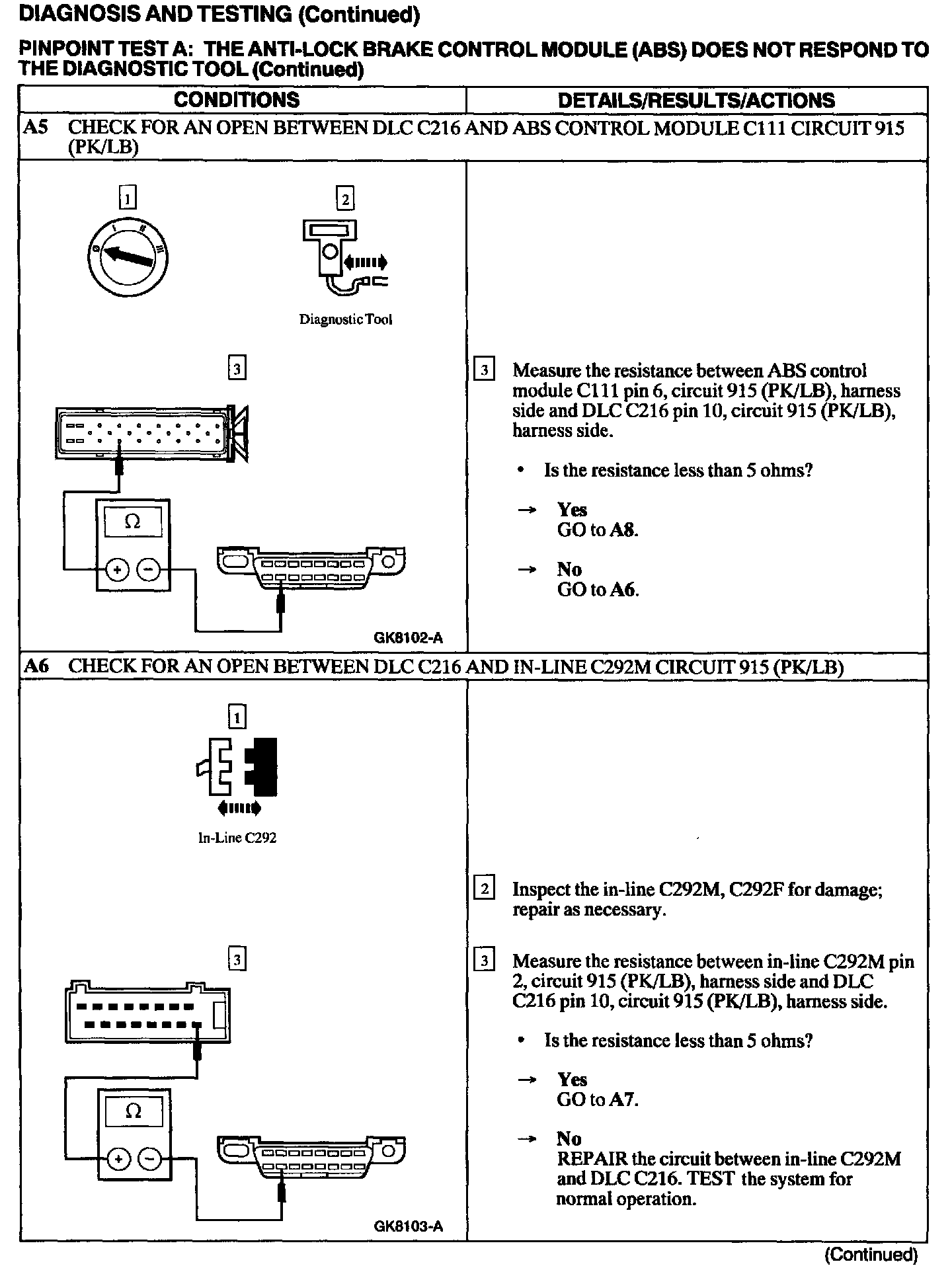

A5 - A6:

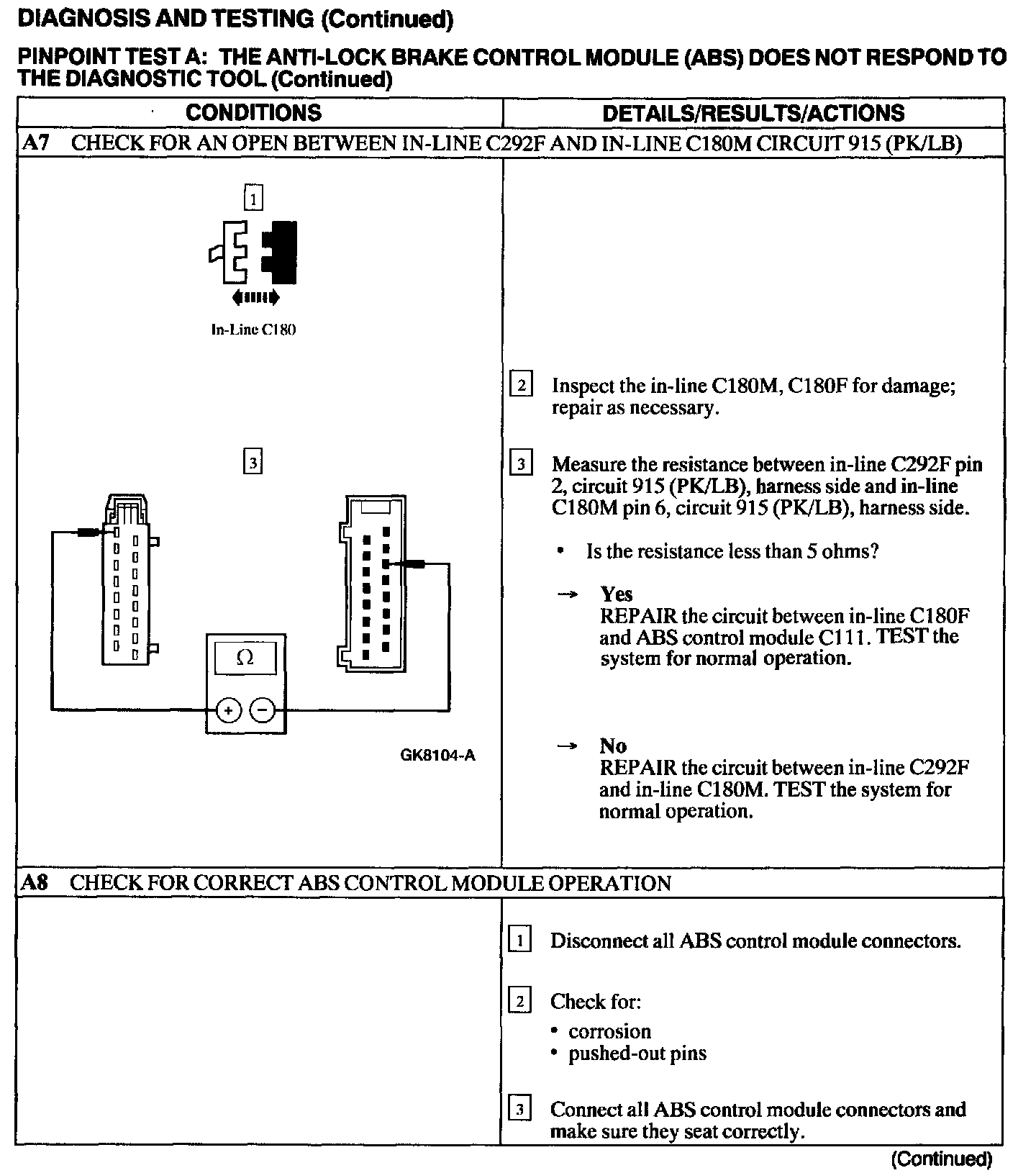

A7 - A8:

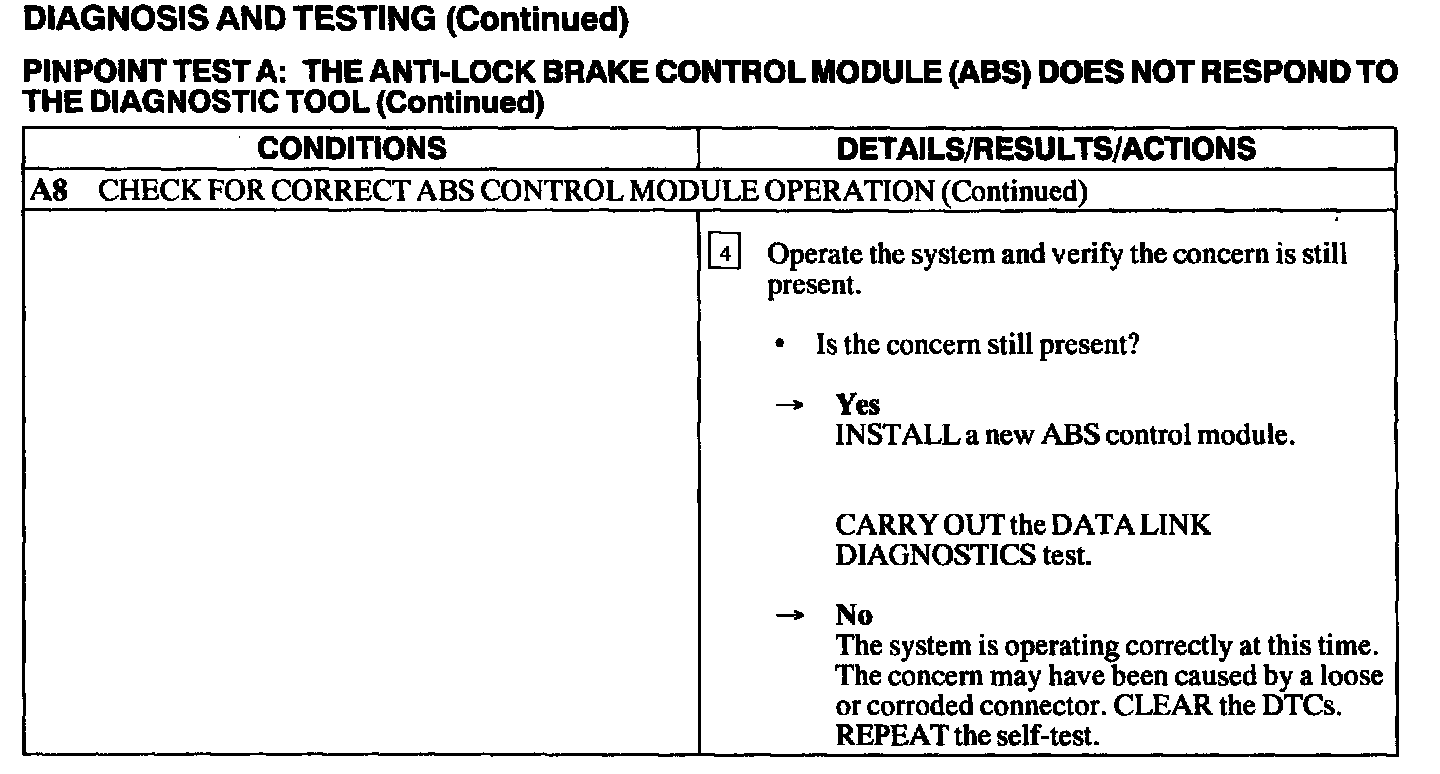

A8:
