Front Electronic Module (FEM) Parameter Identification Index

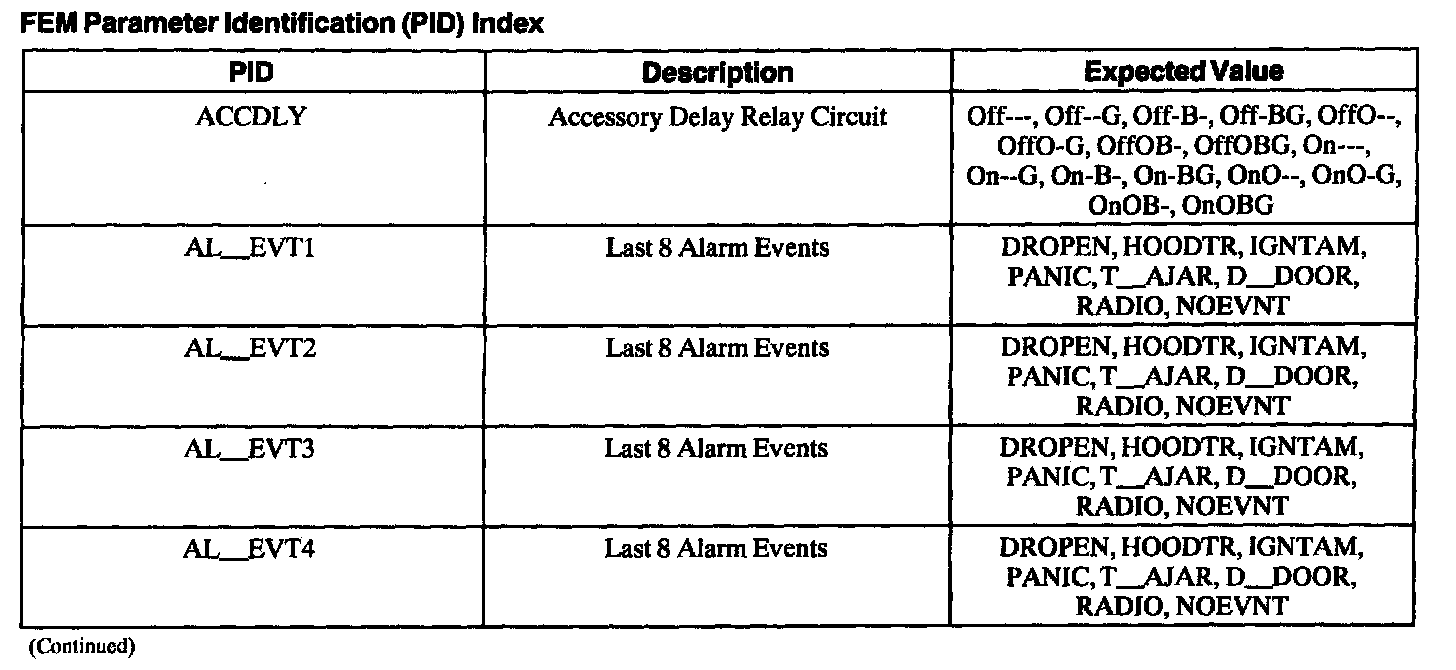

FEM Parameter Identification (PID) Index, Part 1:

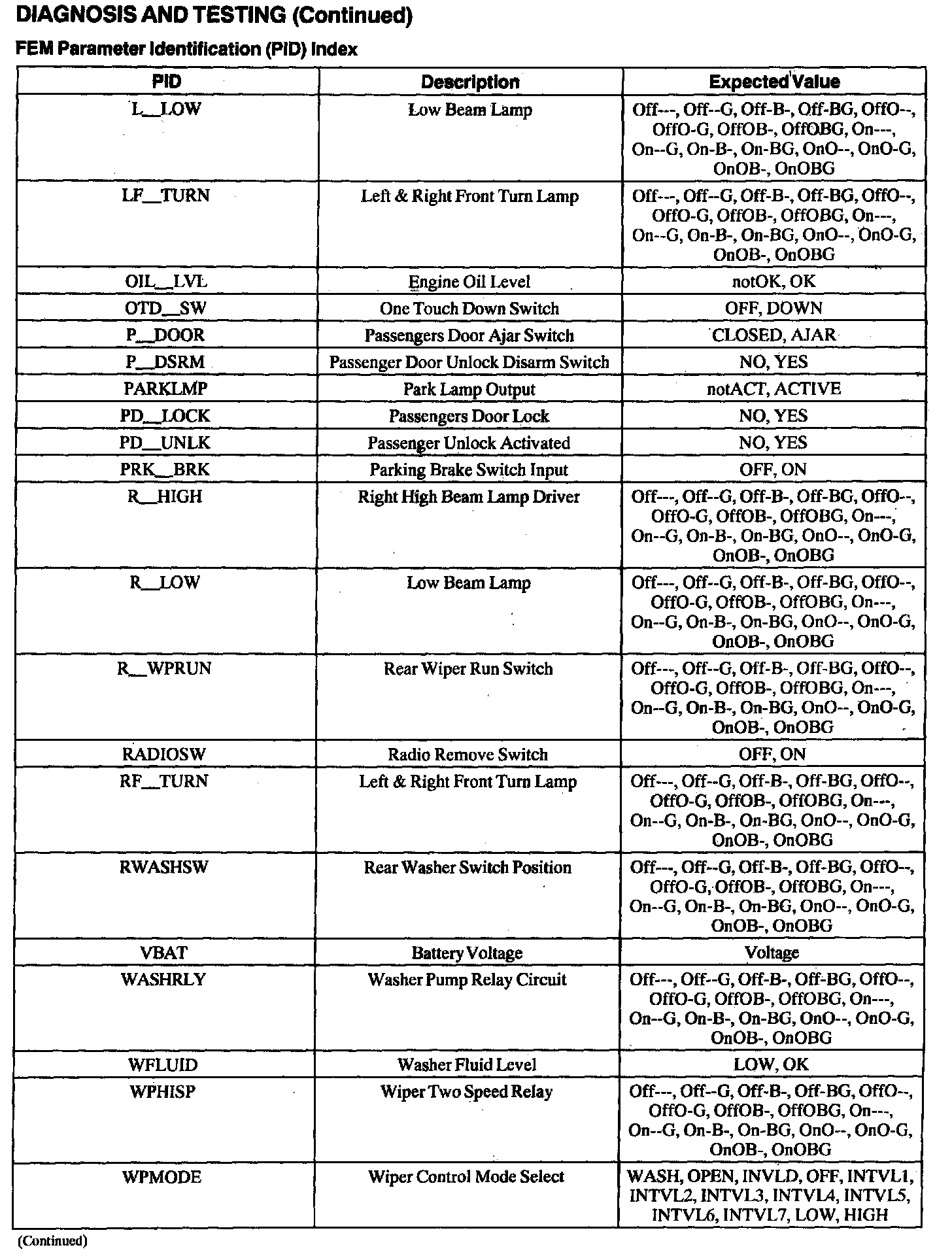

FEM Parameter Identification (PID) Index, Part 2:

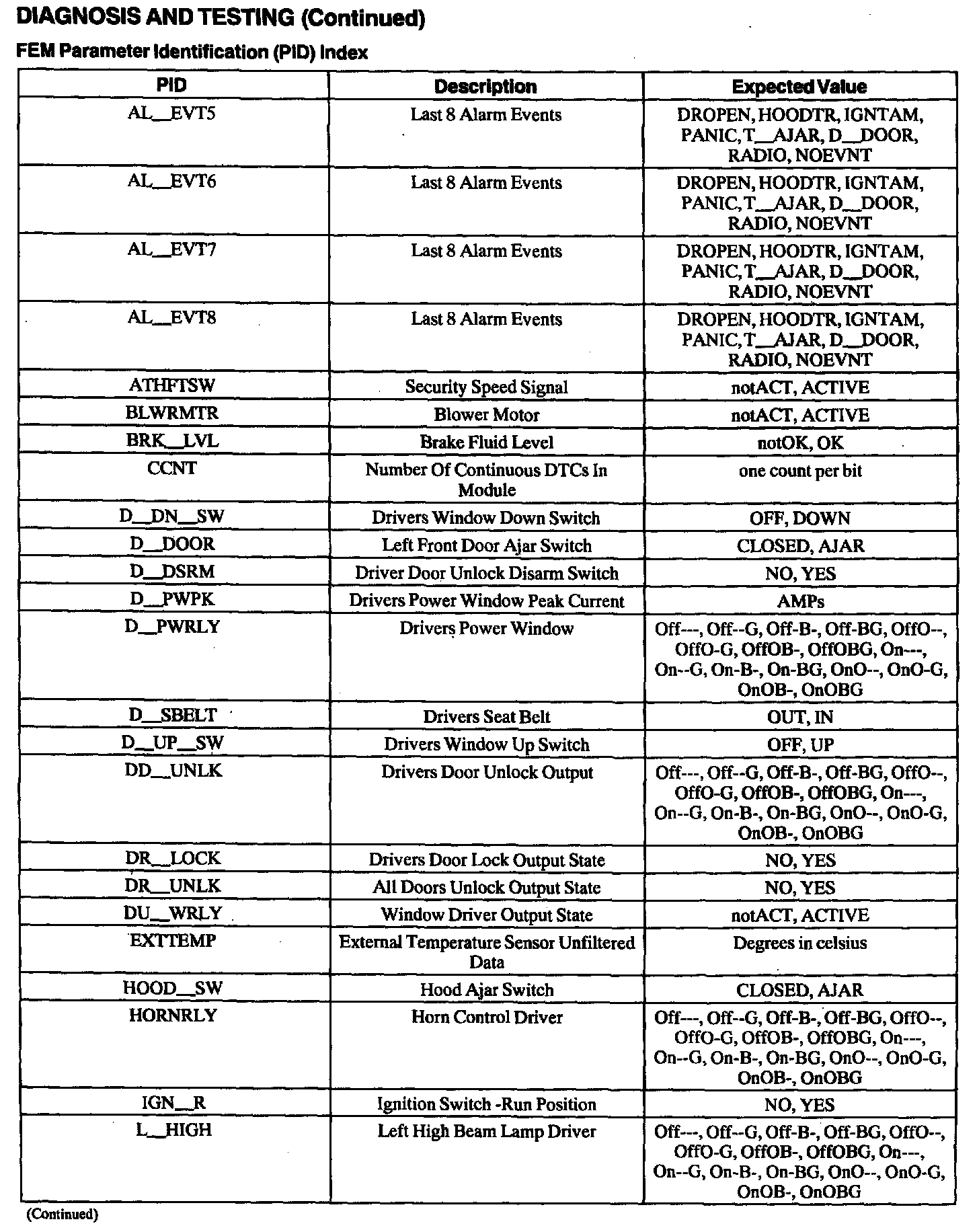

FEM Parameter Identification (PID) Index, Part 3:






FEM Parameter Identification (PID) Index, Part 4:
