EGR System Module Connector - C1068

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

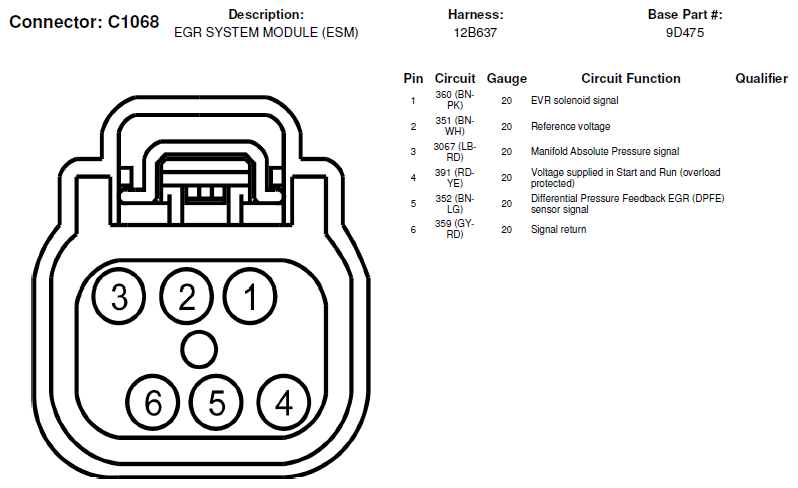

Fig 1: EGR System Module Connector End View (C1068)
G06414313Courtesy of FORD MOTOR CO.
