Block Heater: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

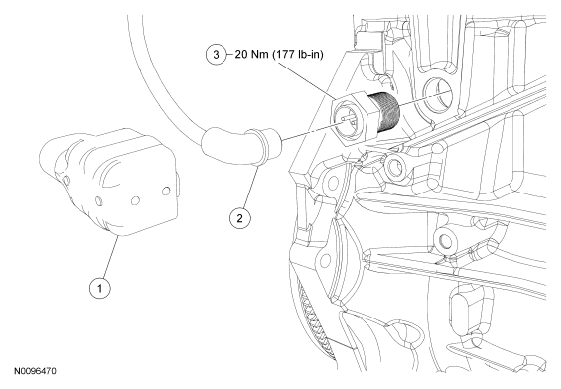

Fig 1: Block Heater Replacement Components With Torque Specifications
G06272356Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 - Block heater electrical connector heat shield (part of 6B018)
2 6B018 Block heater electrical connector
3 6A051 Block heater
