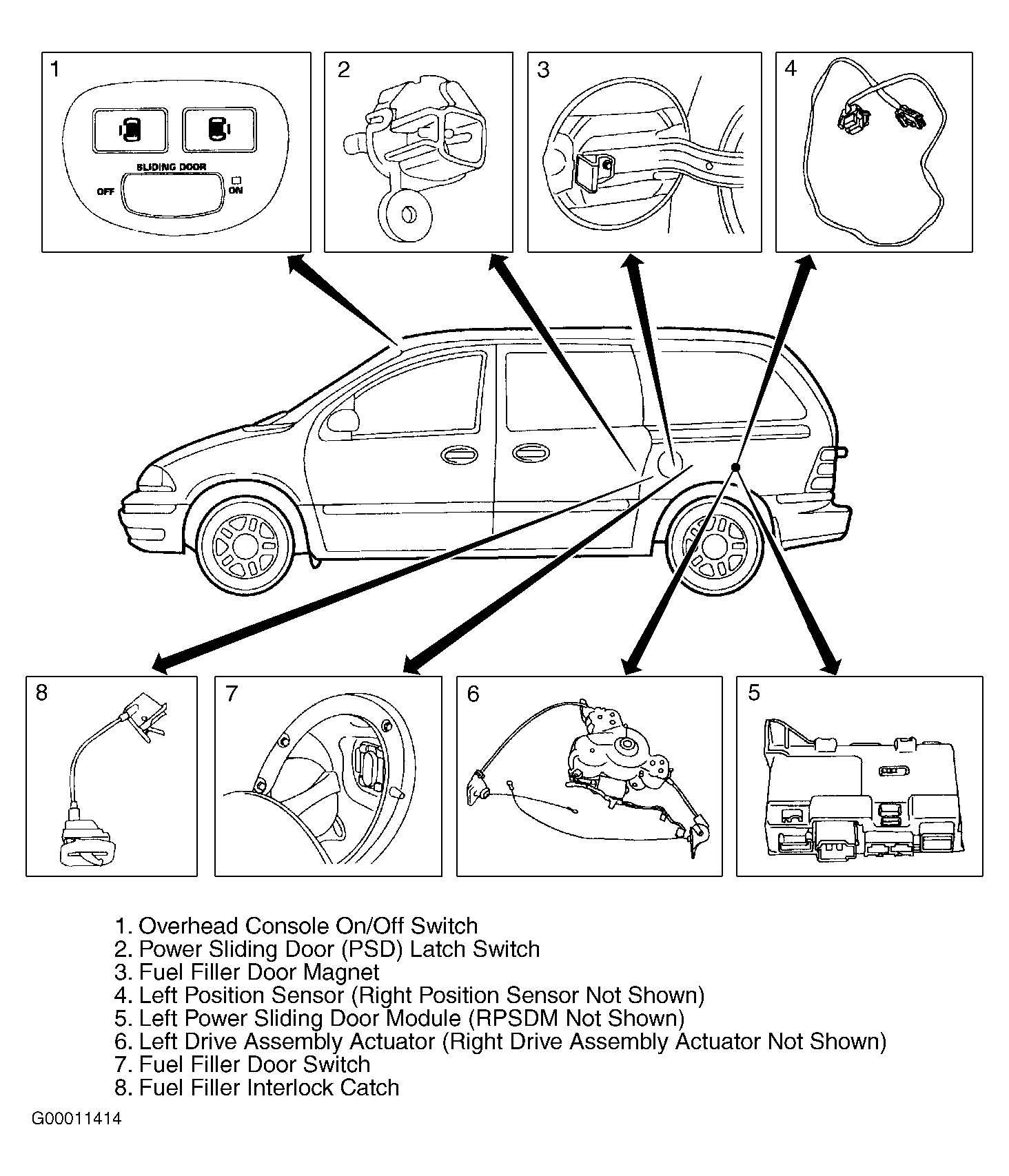

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Battery Junction Box | Left Side Of Engine Compartment |
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Position Sensors (Left Or Right Side) | Located On Drive Assembly Actuators (Left Or Right Side) |
| Power Sliding Door Actuator Drive Assembly (Left Or Right Side) | Behind Left Or Right Rear Quarter Panel |
| Power Sliding Door Ajar Switch (Left Or Right Side) | At Left Or Right "C" Pillar |
| Power Sliding Door Detent Switch (Left Or Right Side) | On Rear Sliding Door Latch (Left Or Right Side) |
| Power Sliding Door Latch Release Actuator (Left Or Right Side) | Front Of Sliding Door (Left Or Right Side) |
| Power Sliding Door Lock Actuator (Left Or Right Side) | Front Of Sliding Door (Left Or Right Side) |
| Power Sliding Door Module (Left Or Right Side) | Behind Left Or Right Rear Quarter Panel |
| Rear Electronic Module | Right Rear Quarter Panel |
