Electronic Automatic Temperature Control System

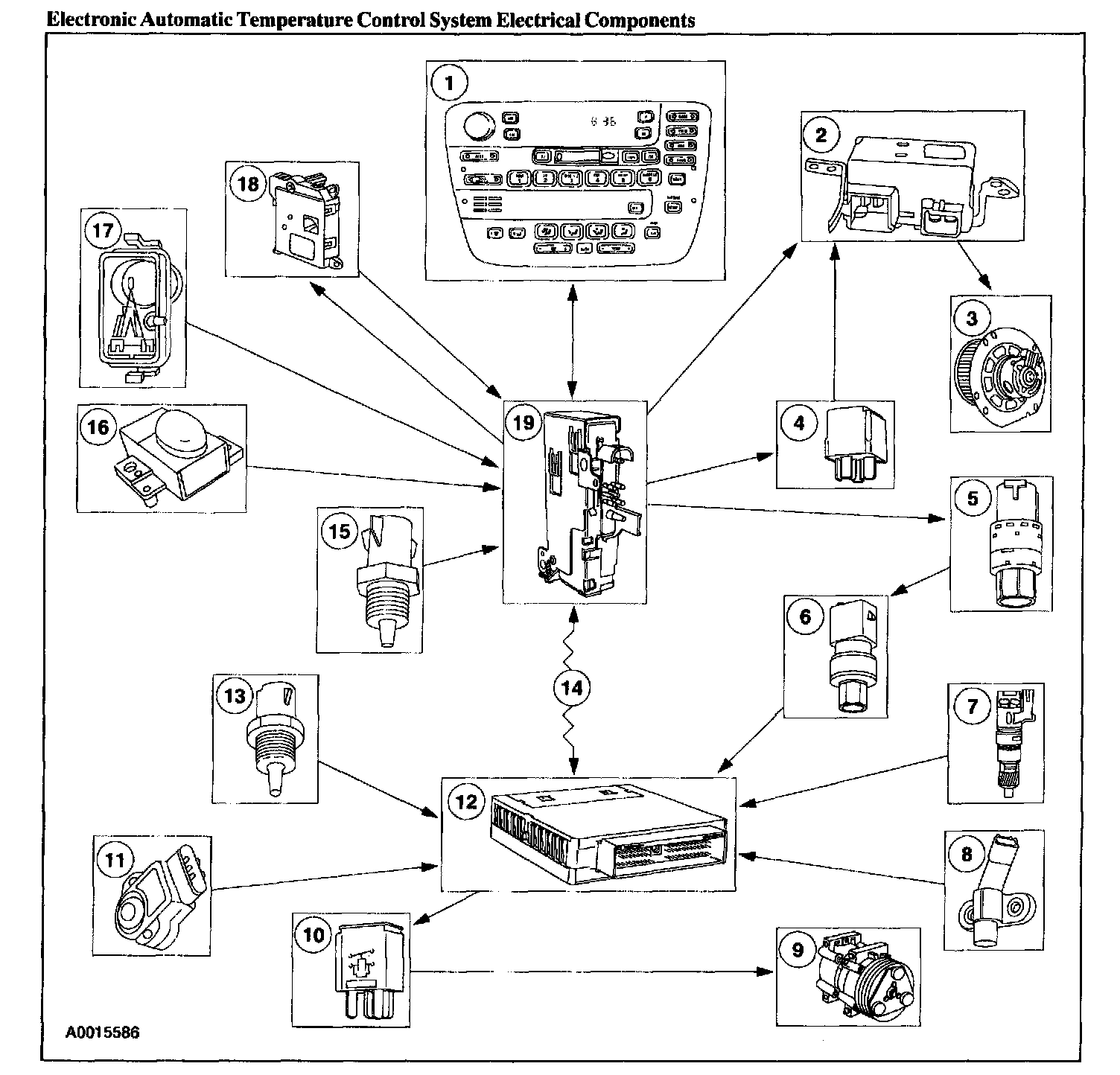

Electronic Automatic Temperature Control System Electrical Components, Part 1:

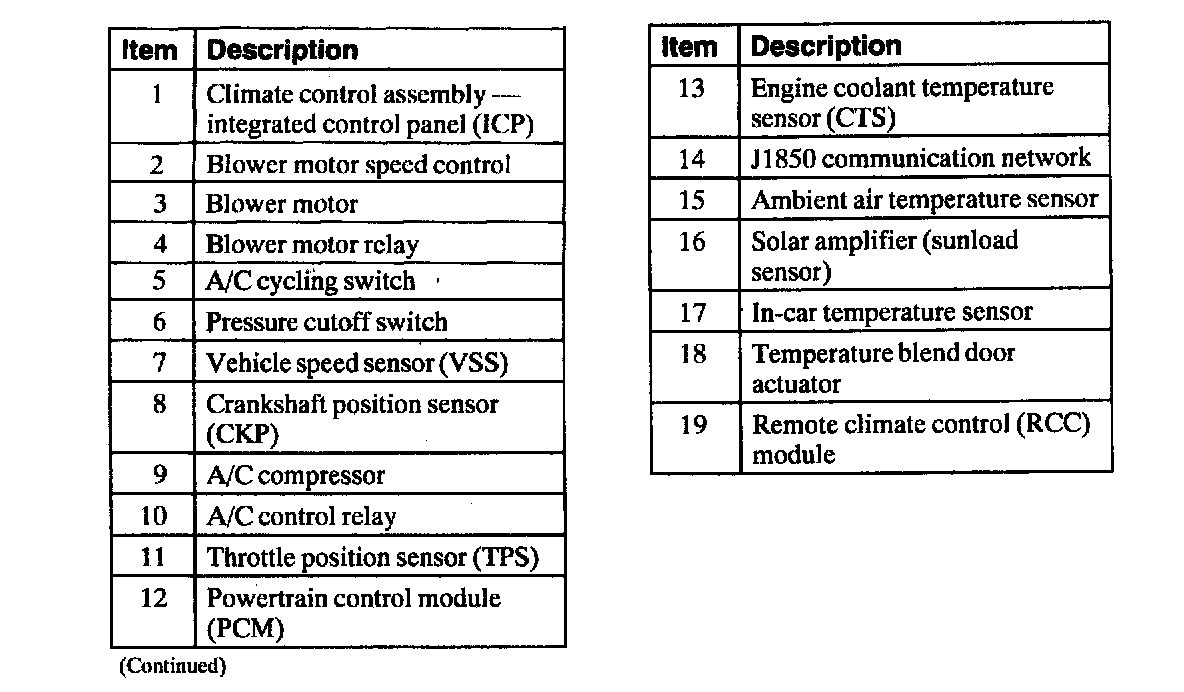

Electronic Automatic Temperature Control System Electrical Components, Part 2:

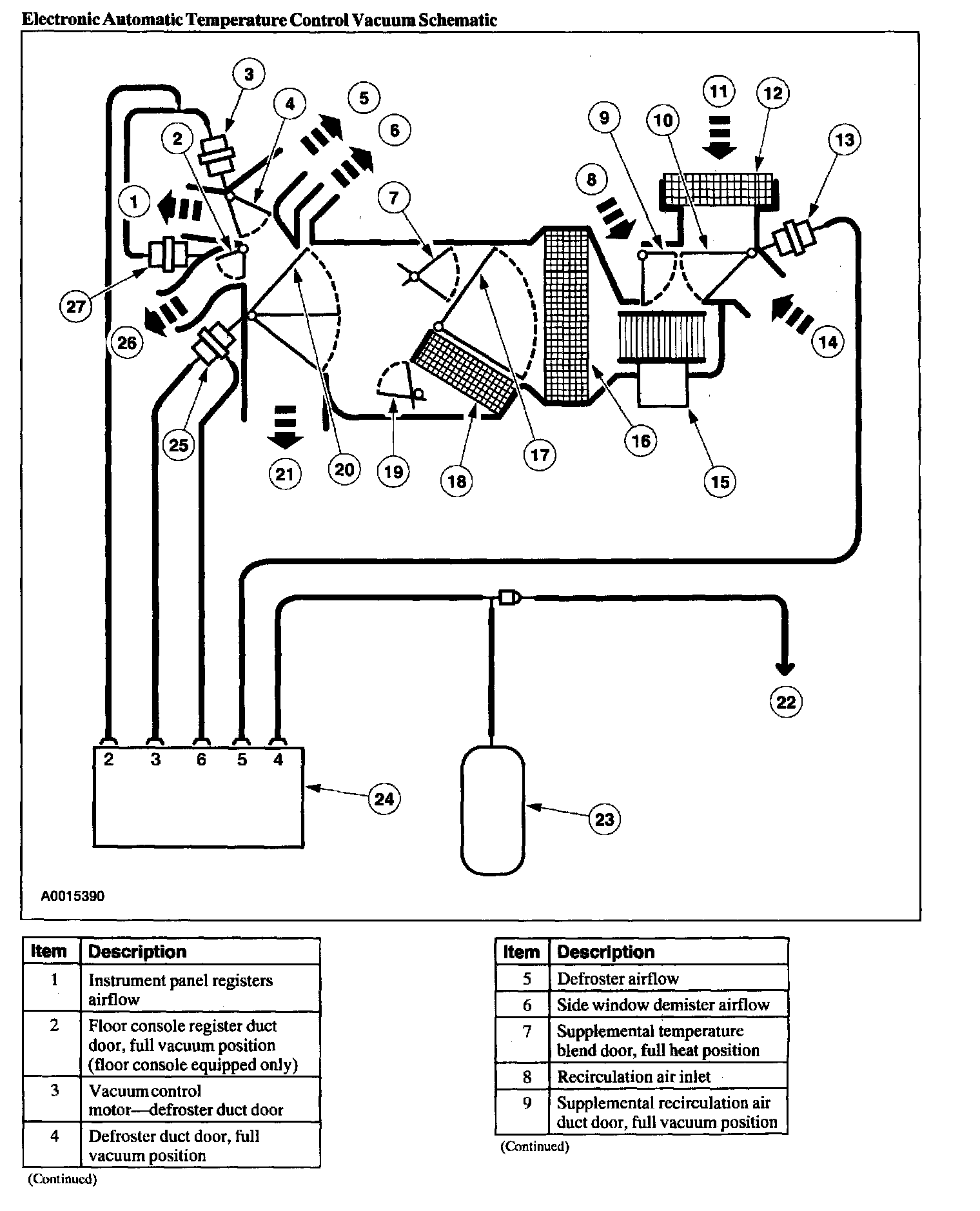

Electronic Automatic Temperature Control Vacuum Schematic, Part 1:

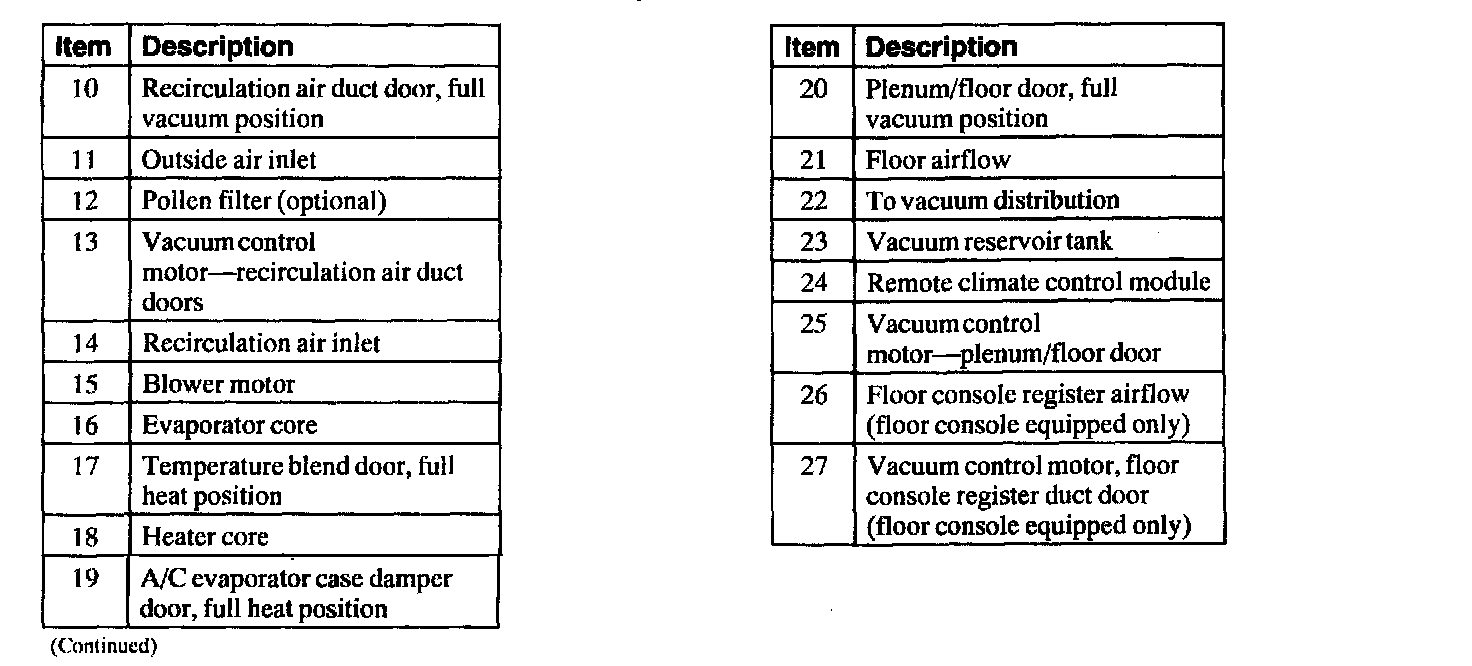

Electronic Automatic Temperature Control Vacuum Schematic, Part 2:
