Home >> Ford >> 2001 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test B: GEM Module Does Not Respond to the Scan Tool

Test B: GEM Module Does Not Respond to the Scan Tool

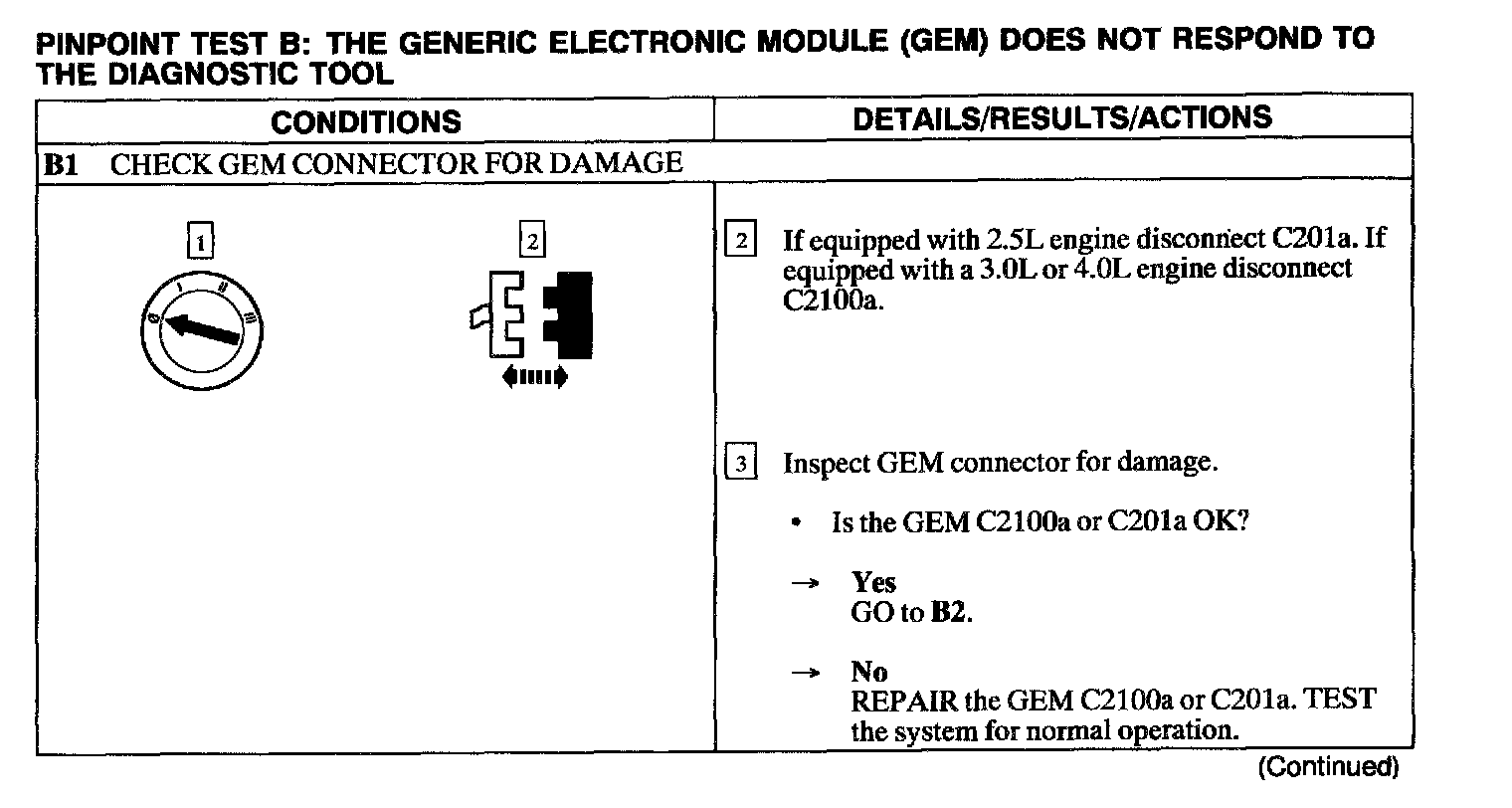

B1:

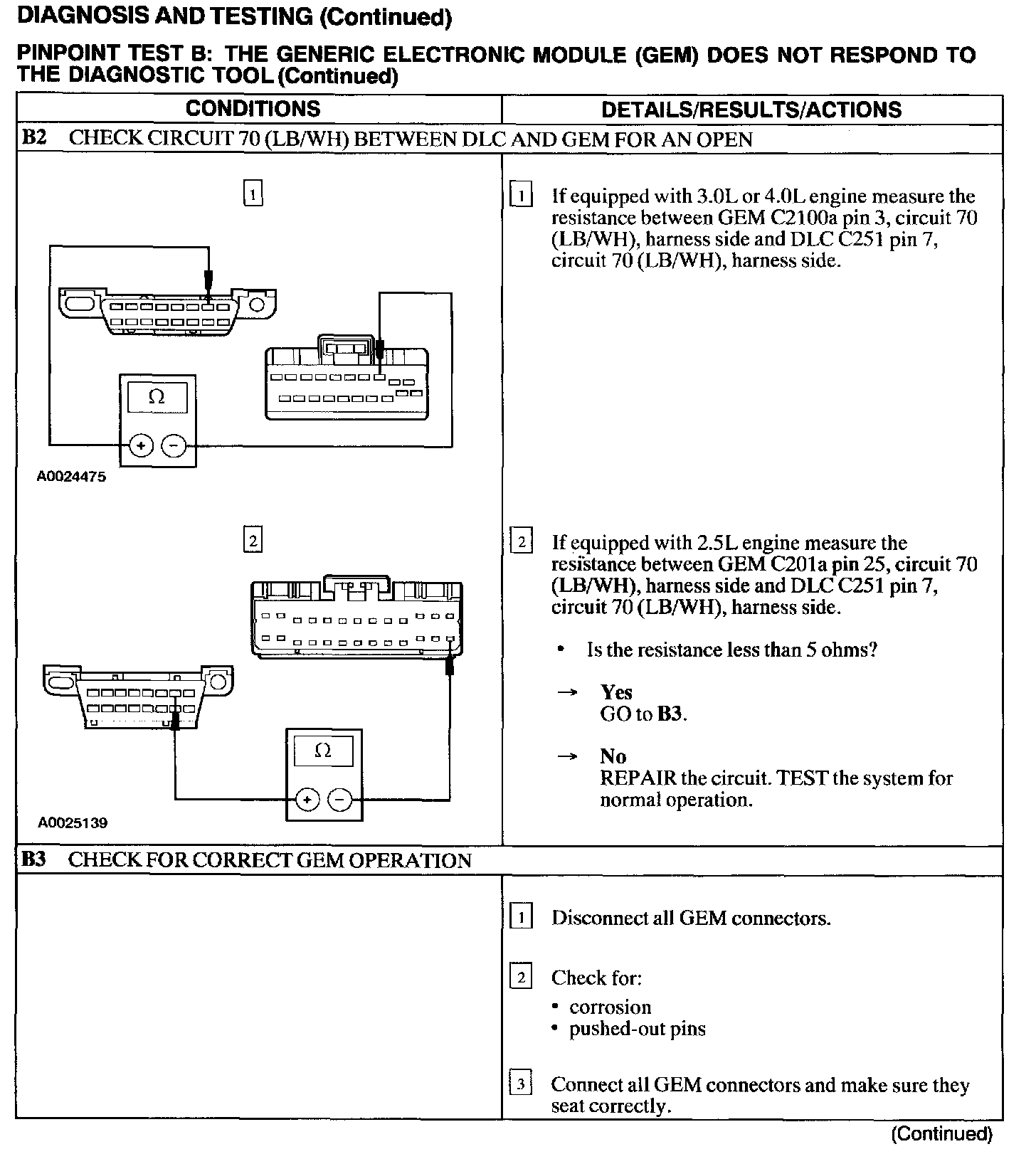

B2 - B3:

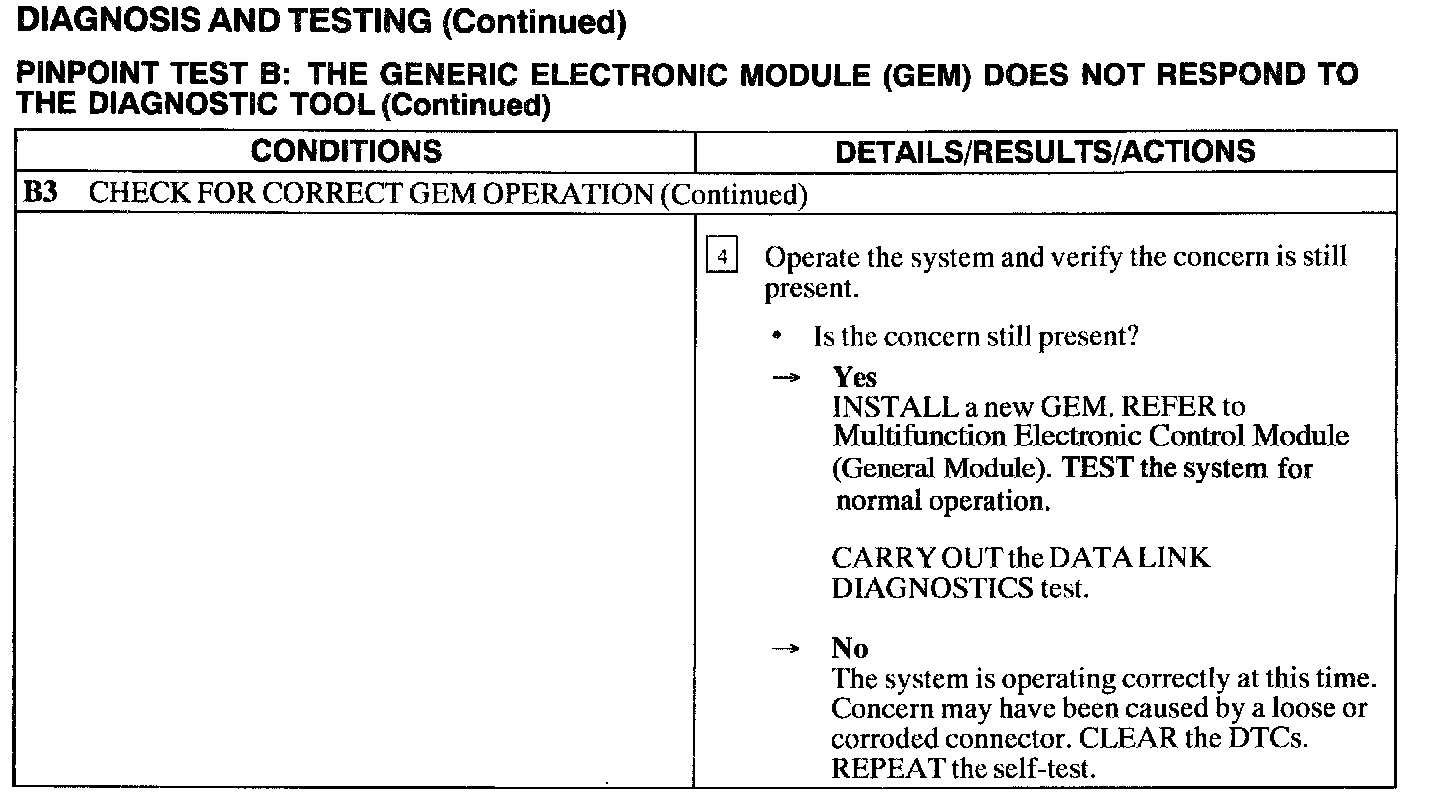

B3:
