Ford
>>
2001
>>
Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
Starting System: Diagrams

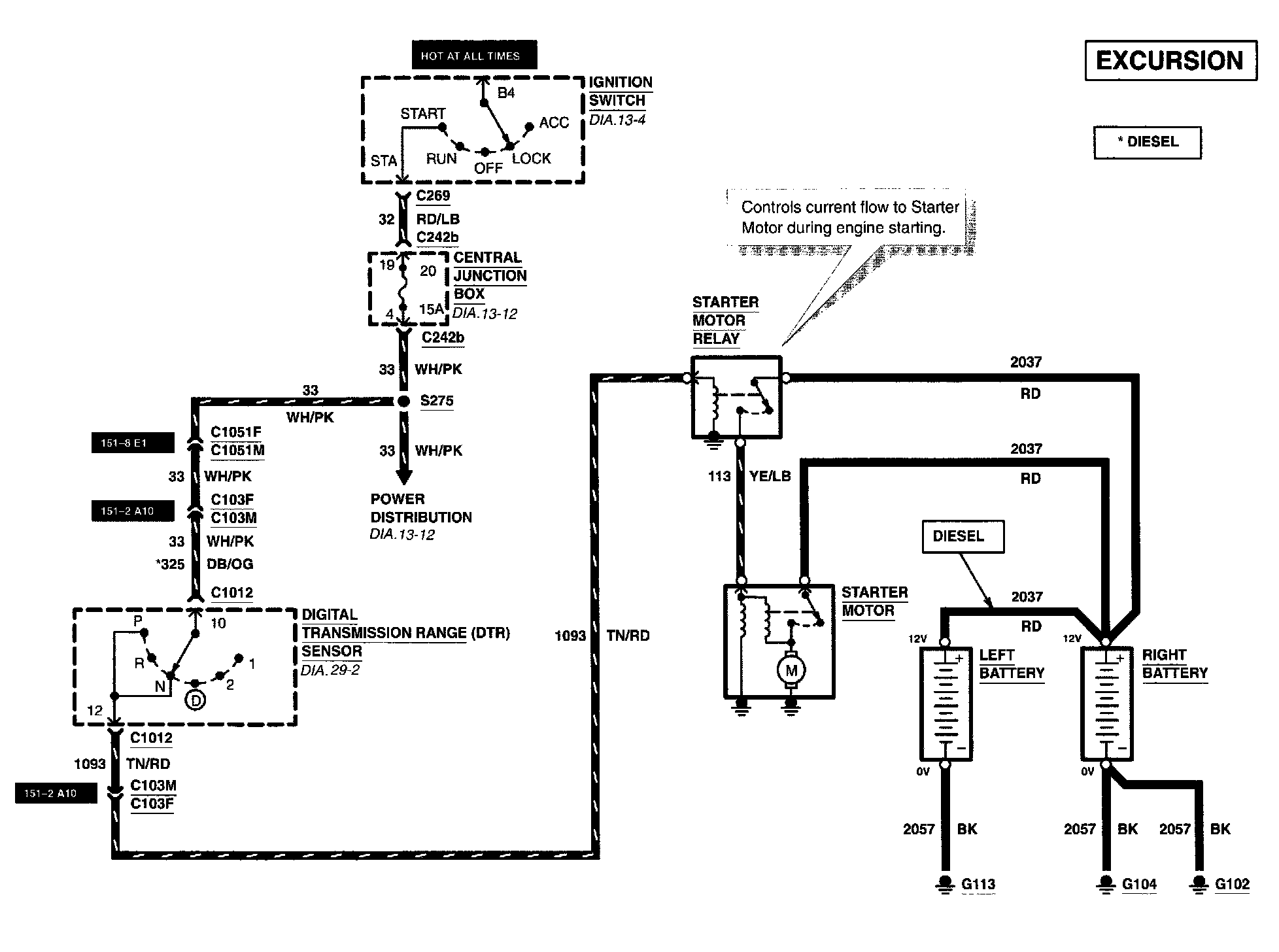

Diagram 20-1:

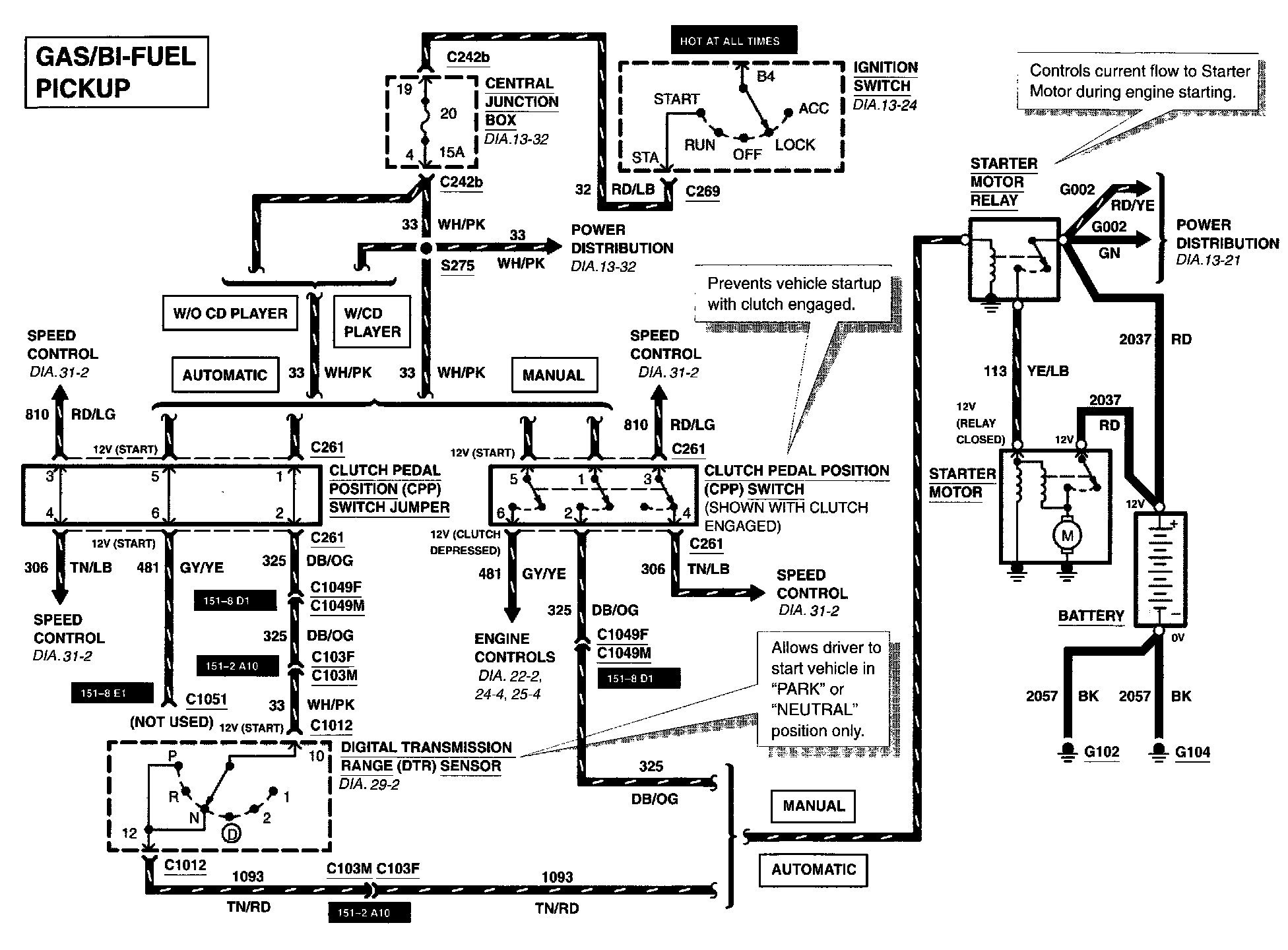

Diagram 20-2:
