Home >> Ford >> 2001 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Cruise Control >> Diagrams

Cruise Control: Diagrams

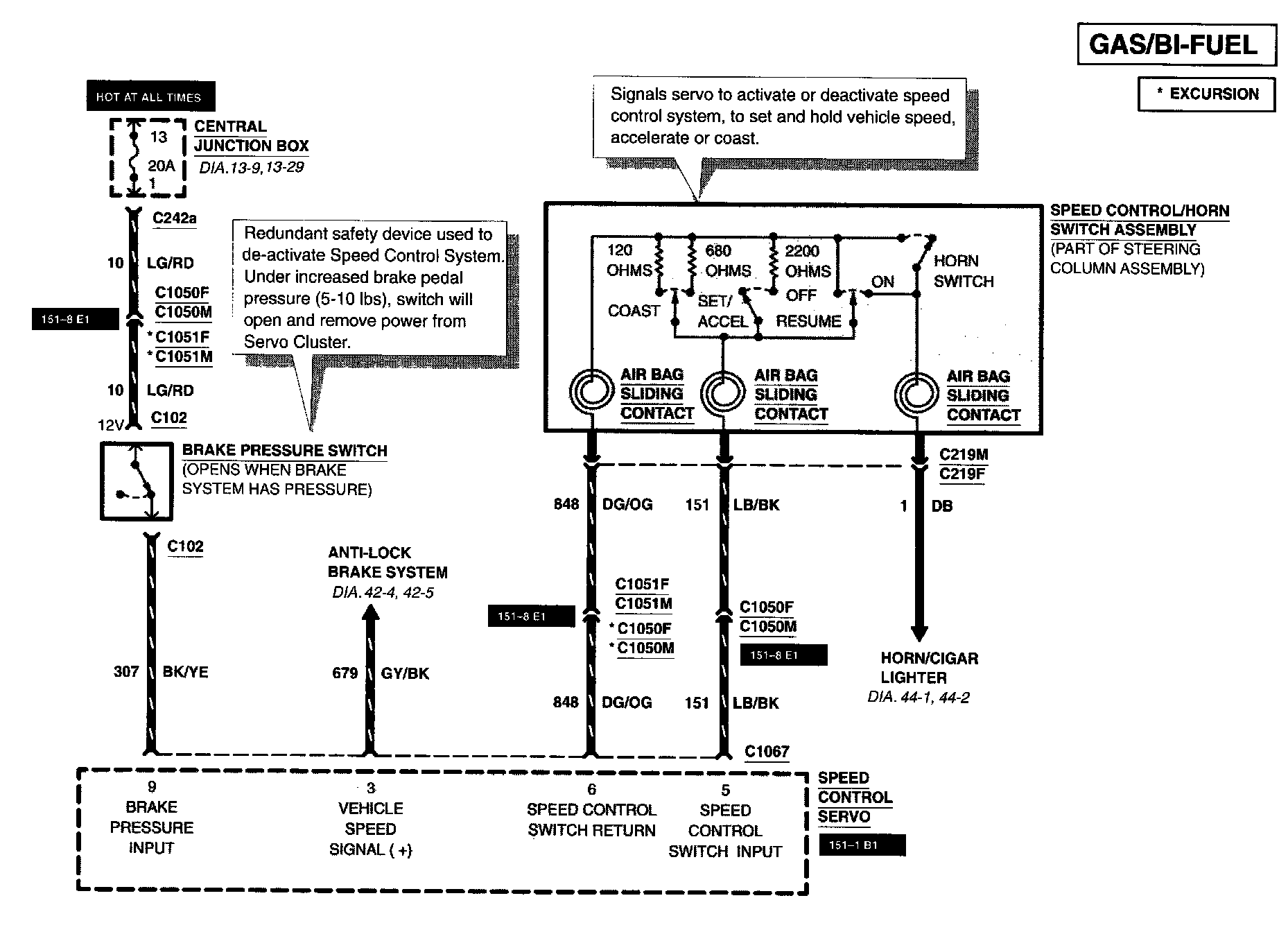

Diagram 31-1:



Diagram 31-3:
