Home >> Ford >> 2000 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test G: REM Module Does Not Respond to the Scan Tool

Test G: REM Module Does Not Respond to the Scan Tool

G1:

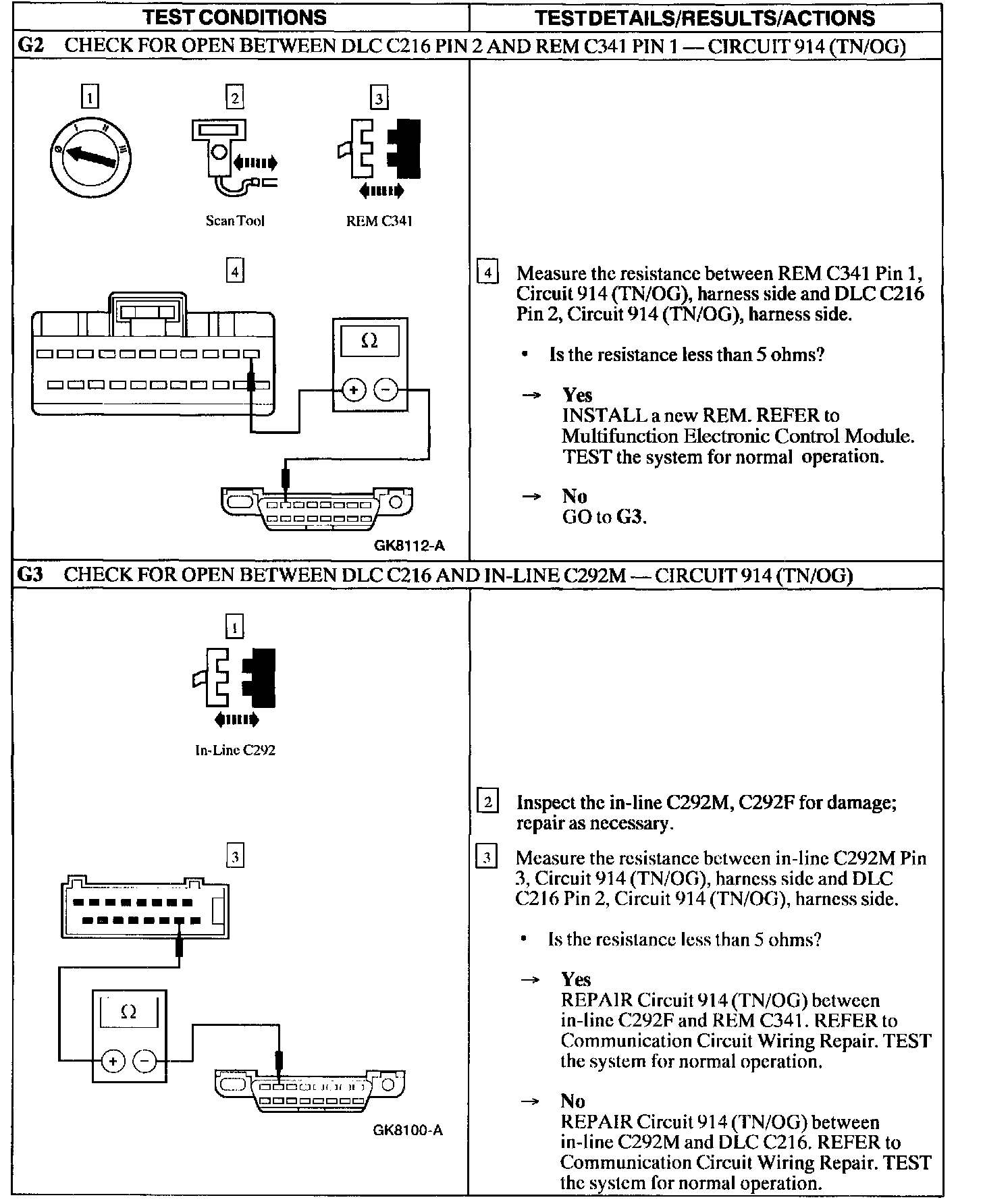

G2 - G3:

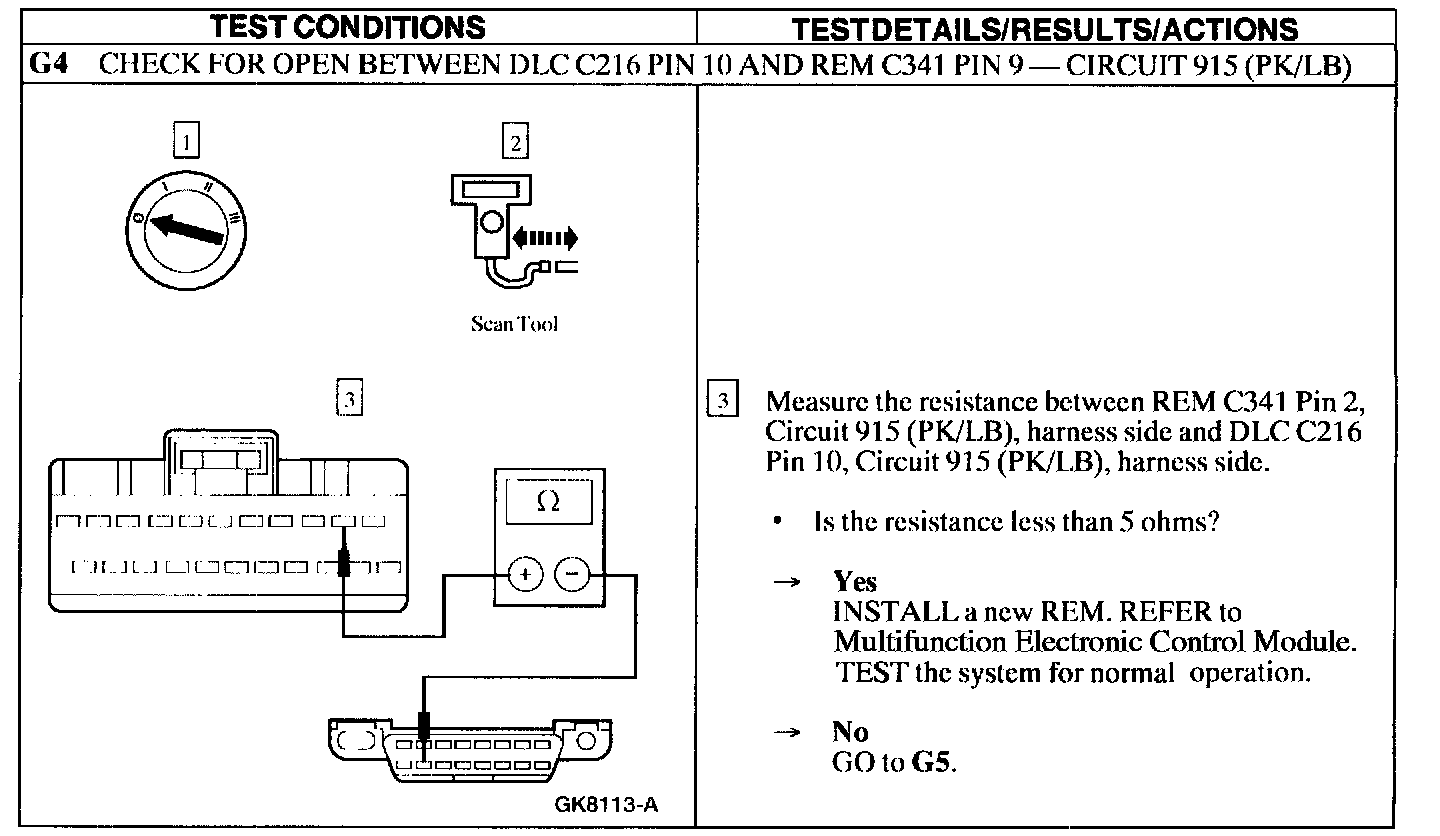

G4:

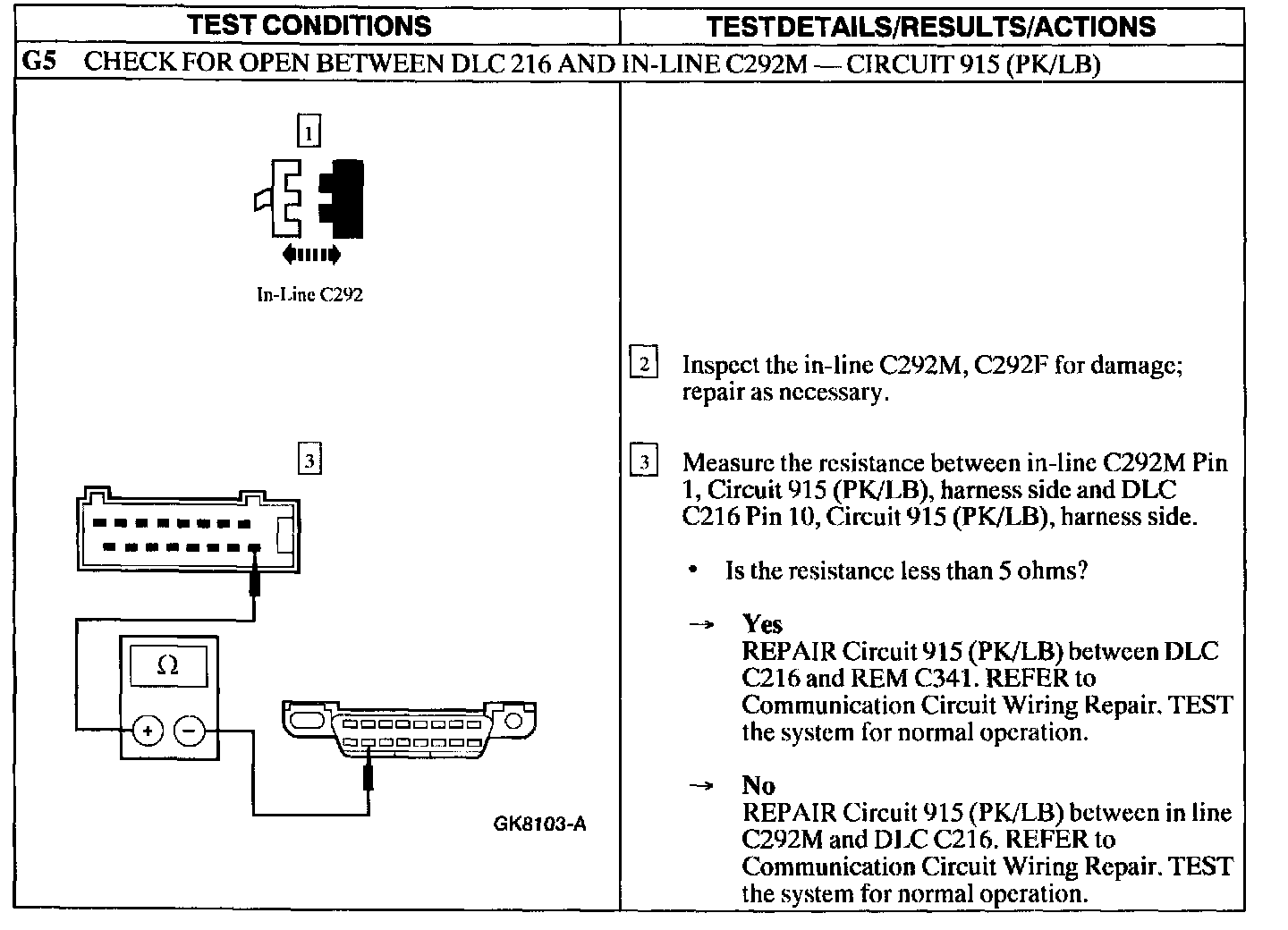

G5:
