Home >> Ford >> 2000 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Micro ISO Relay >> Testing and Inspection

Micro ISO Relay: Testing and Inspection

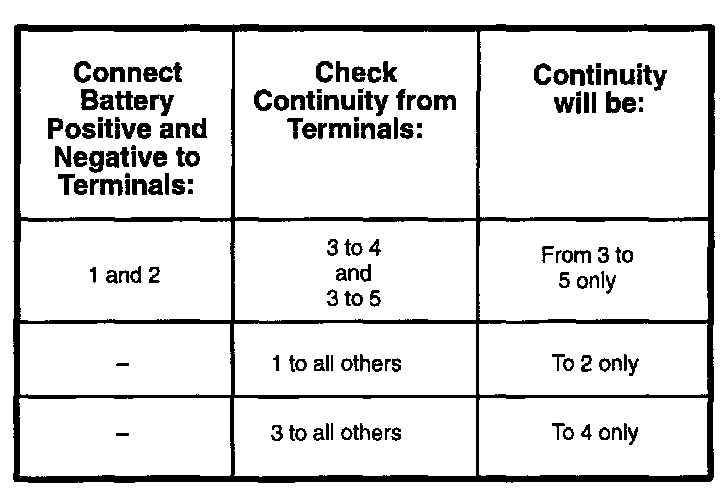

Component Testing Procedure:

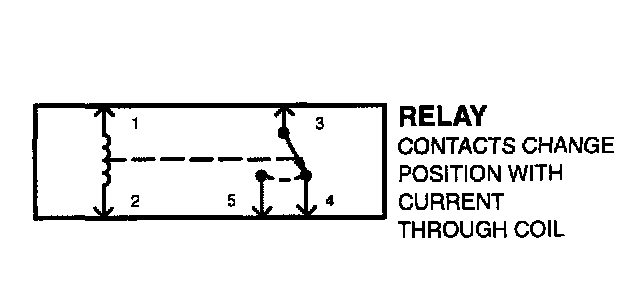

Schematic:
