Main Climate Control

REMOVAL

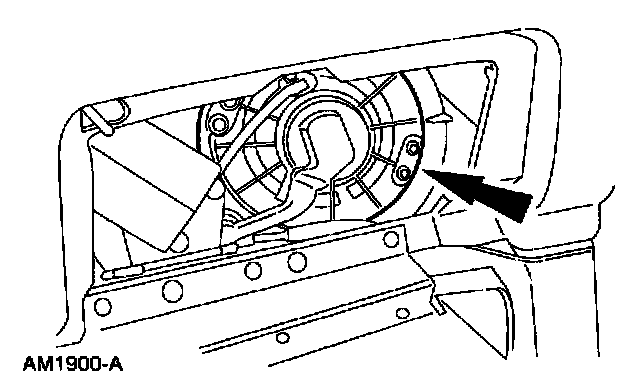

1. Access the blower motor.

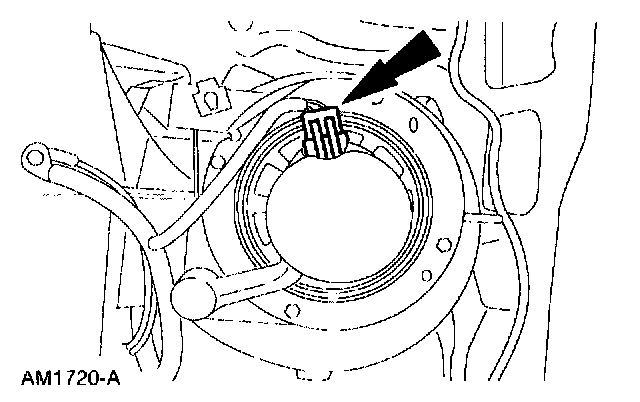

2. Disconnect the connector.

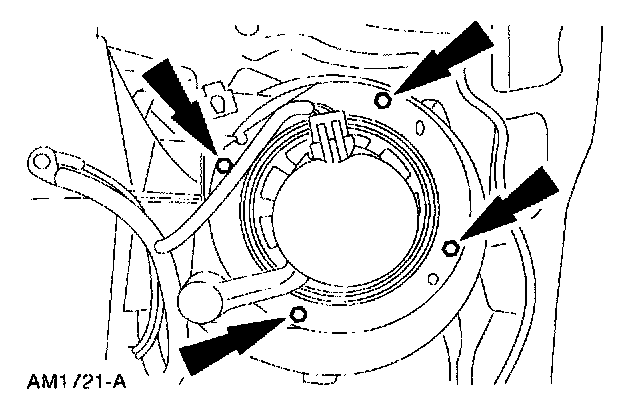

3. Remove the screws.

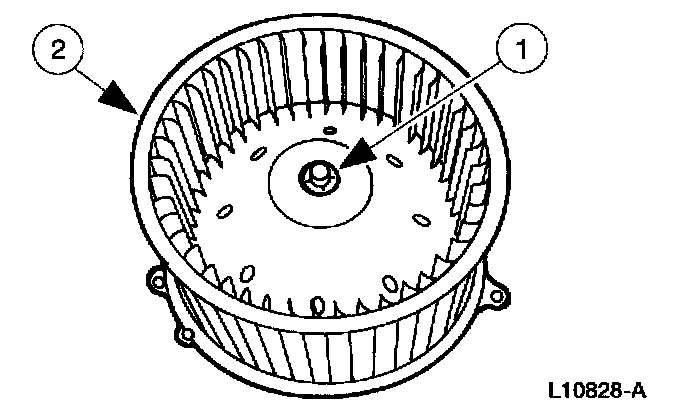

4. Remove the wheel from the blower motor.
1 Remove the push clip.
2 Remove the wheel.
^ Remove the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
