Home >> Ford >> 2000 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

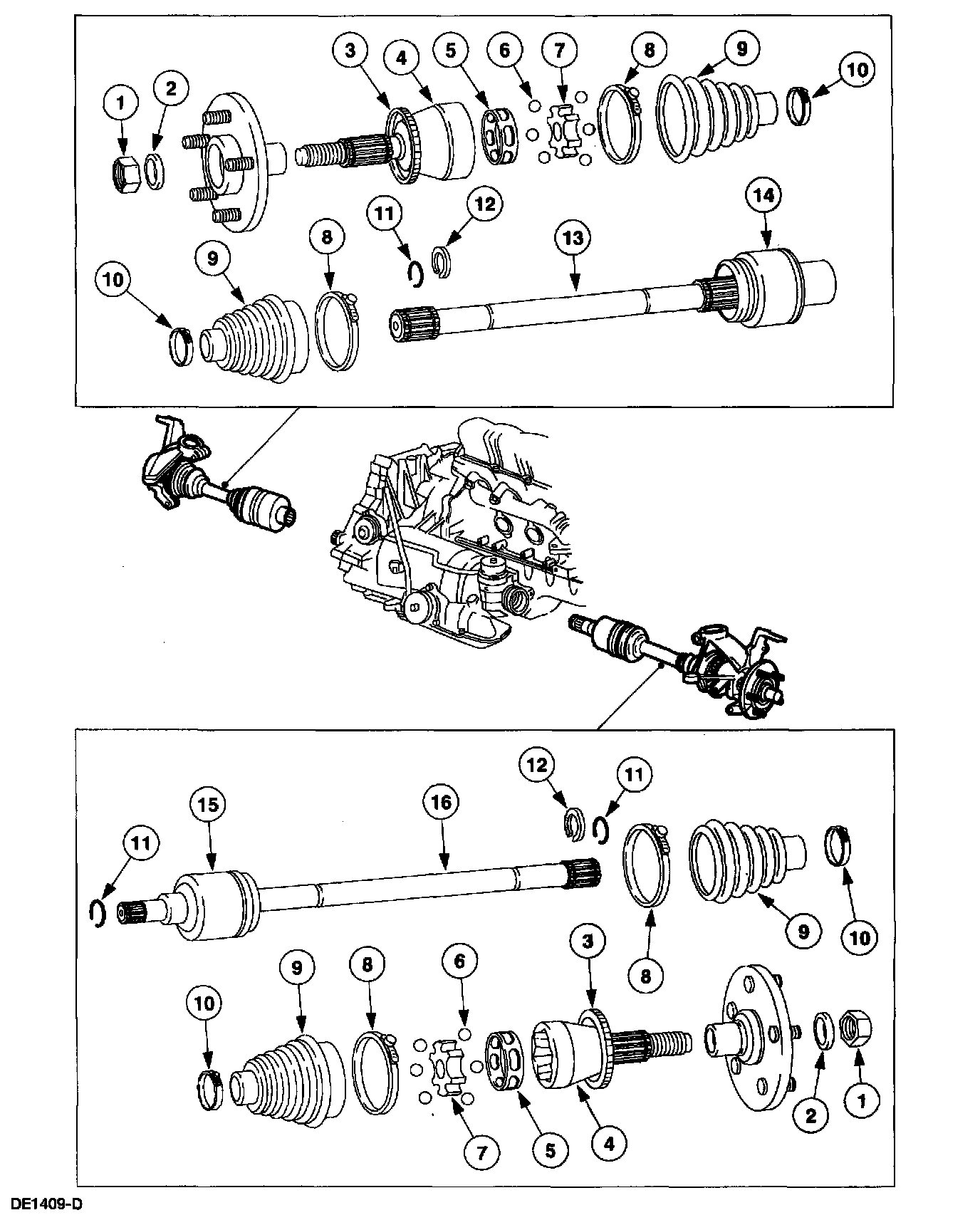

Axle Shaft





Part 1 of 3





Part 2 of 3





Part 3 of 3
