Compressor Clutch: Adjustments

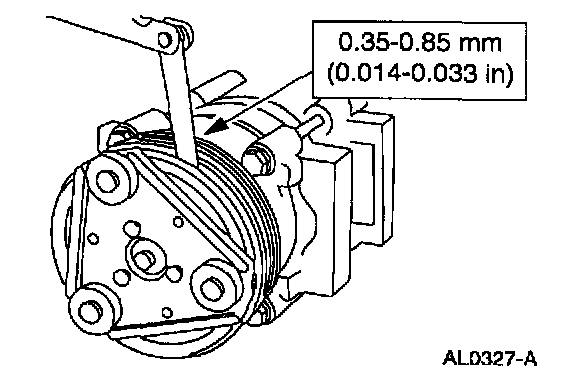

1. Check the A/C clutch air gap at three equally-spaced places between the A/C clutch hub and the A/C clutch pulley.
2. Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specification.
