Blower Motor Switch: Service and Repair

REMOVAL
1. Remove the integrated control panel.

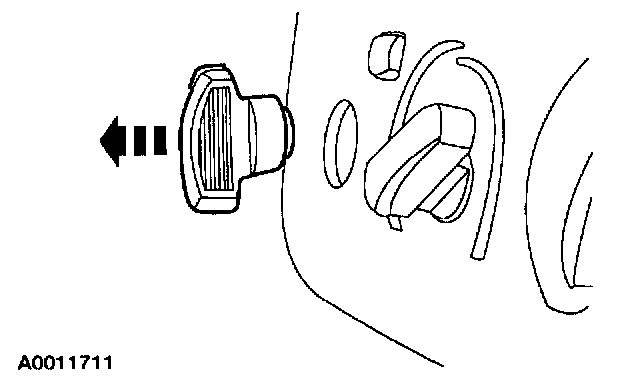

2. Remove the knob.

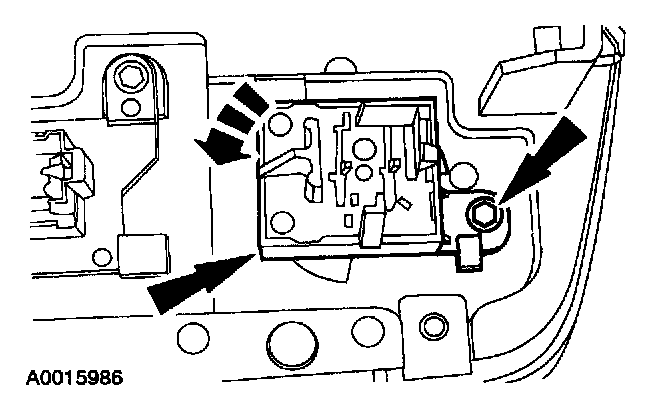

3. Remove the screw. Rotating the blower motor switch counterclockwise, remove the blower motor switch.

INSTALLATION
1. To install, reverse the removal procedure.
