Home >> Ford >> 2000 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Pressure Sensor / Switch, HVAC >> Compressor Cut-Off/Cycling Switch

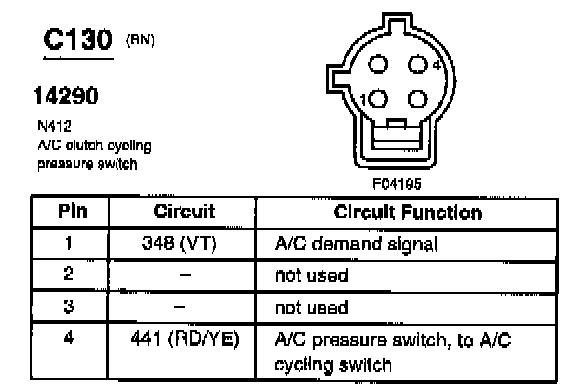

Compressor Cut-Off/Cycling Switch
