Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
Fuel Pump Control Unit
Fuel Pump Control Unit

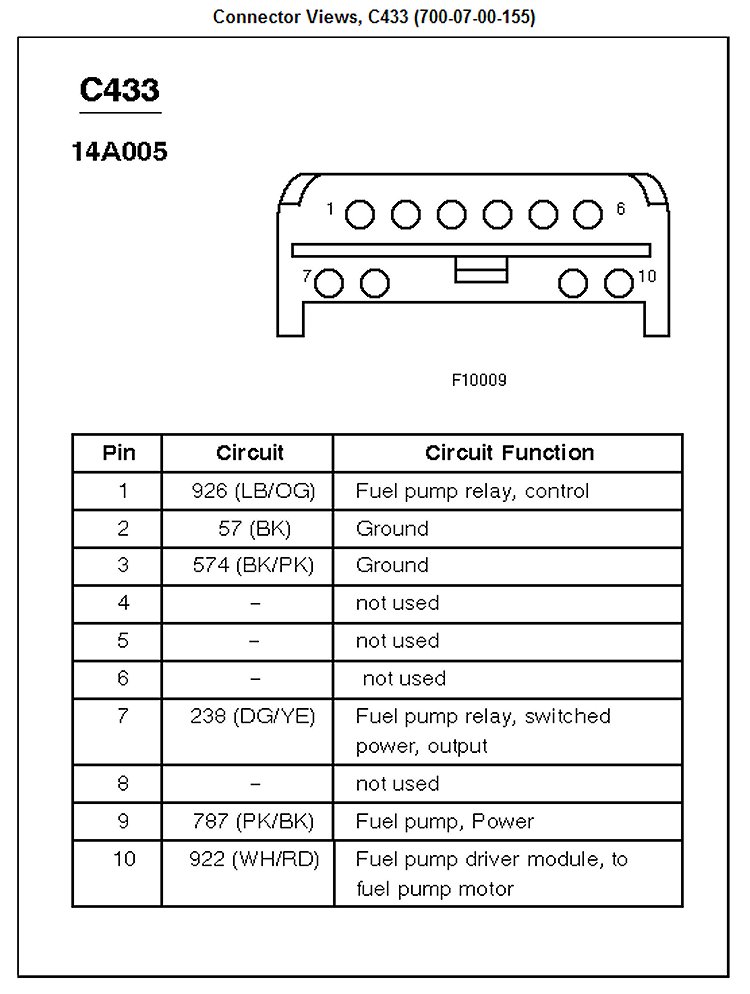

C433:
