AX4S Automatic Transaxle

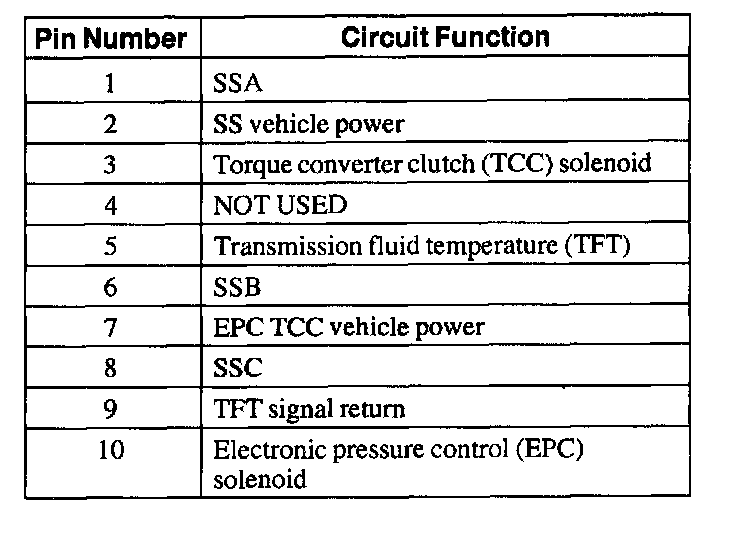

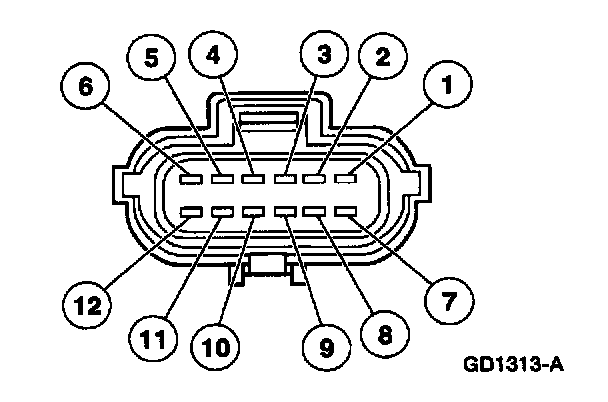

Transaxle Vehicle Harness Connector

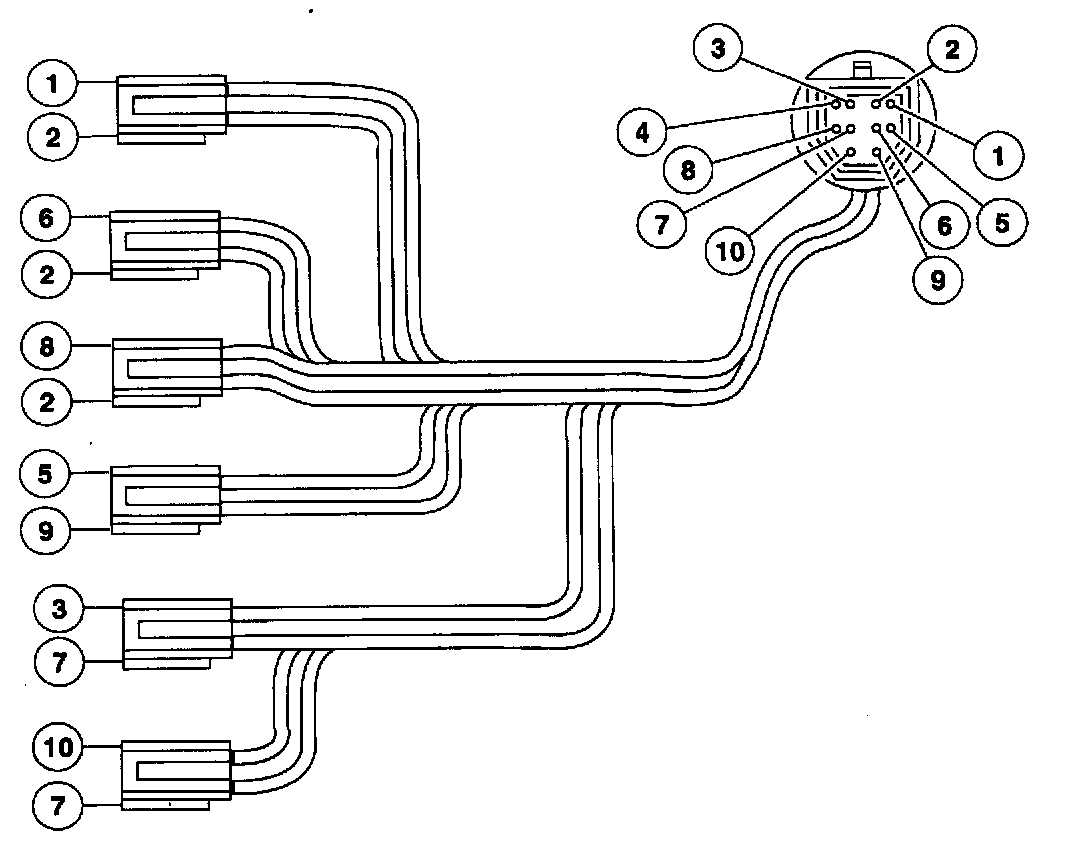

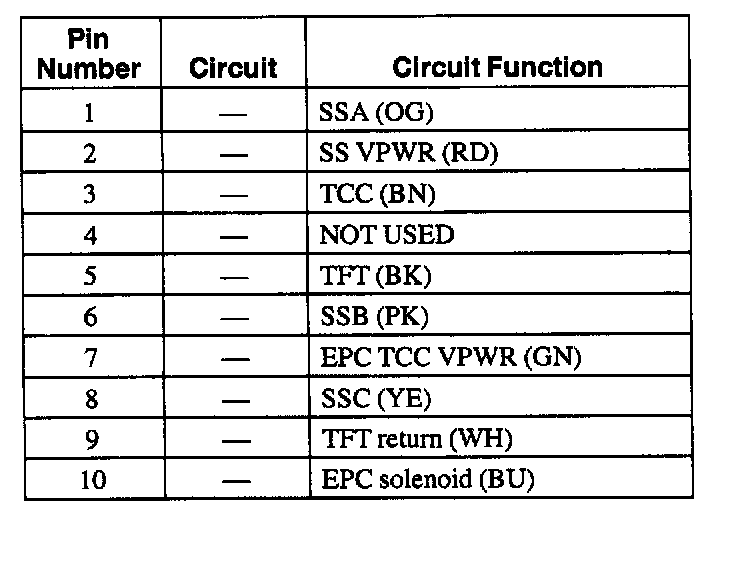

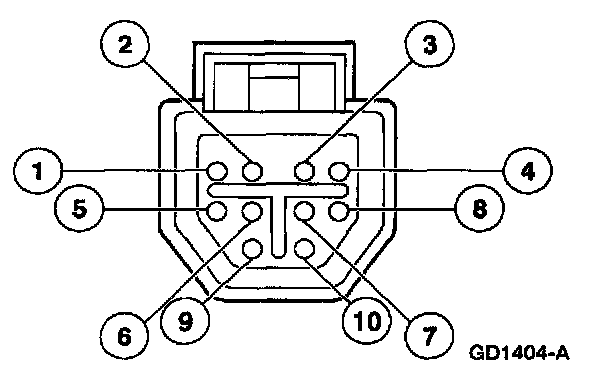

Transaxle Internal Harness Connector

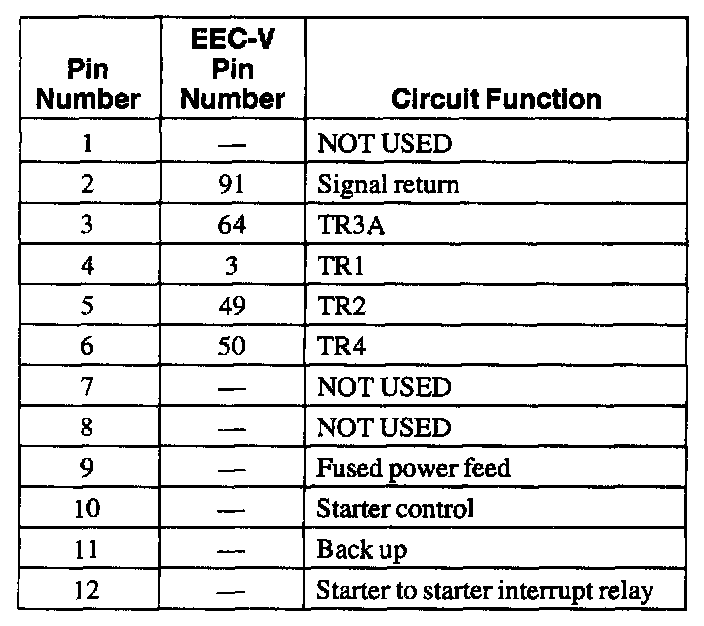

Digital Transmission Range (TR) Sensor

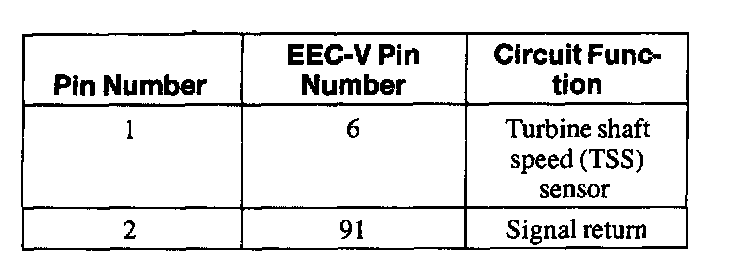

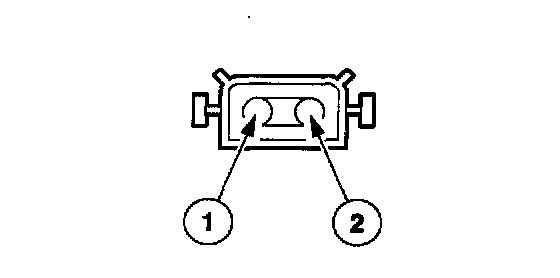

Turbine Shaft Speed (TSS) Sensor Connector

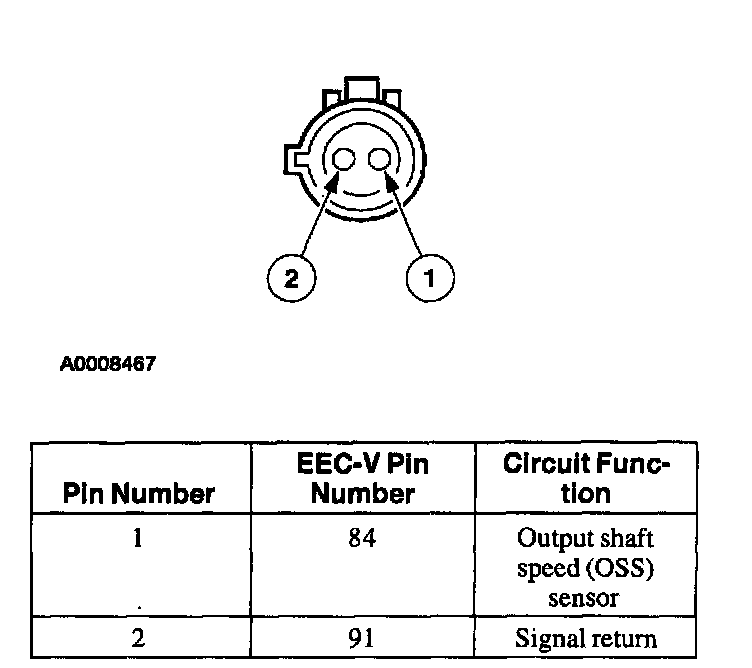

Output Shaft Speed (OSS) Sensor Connector

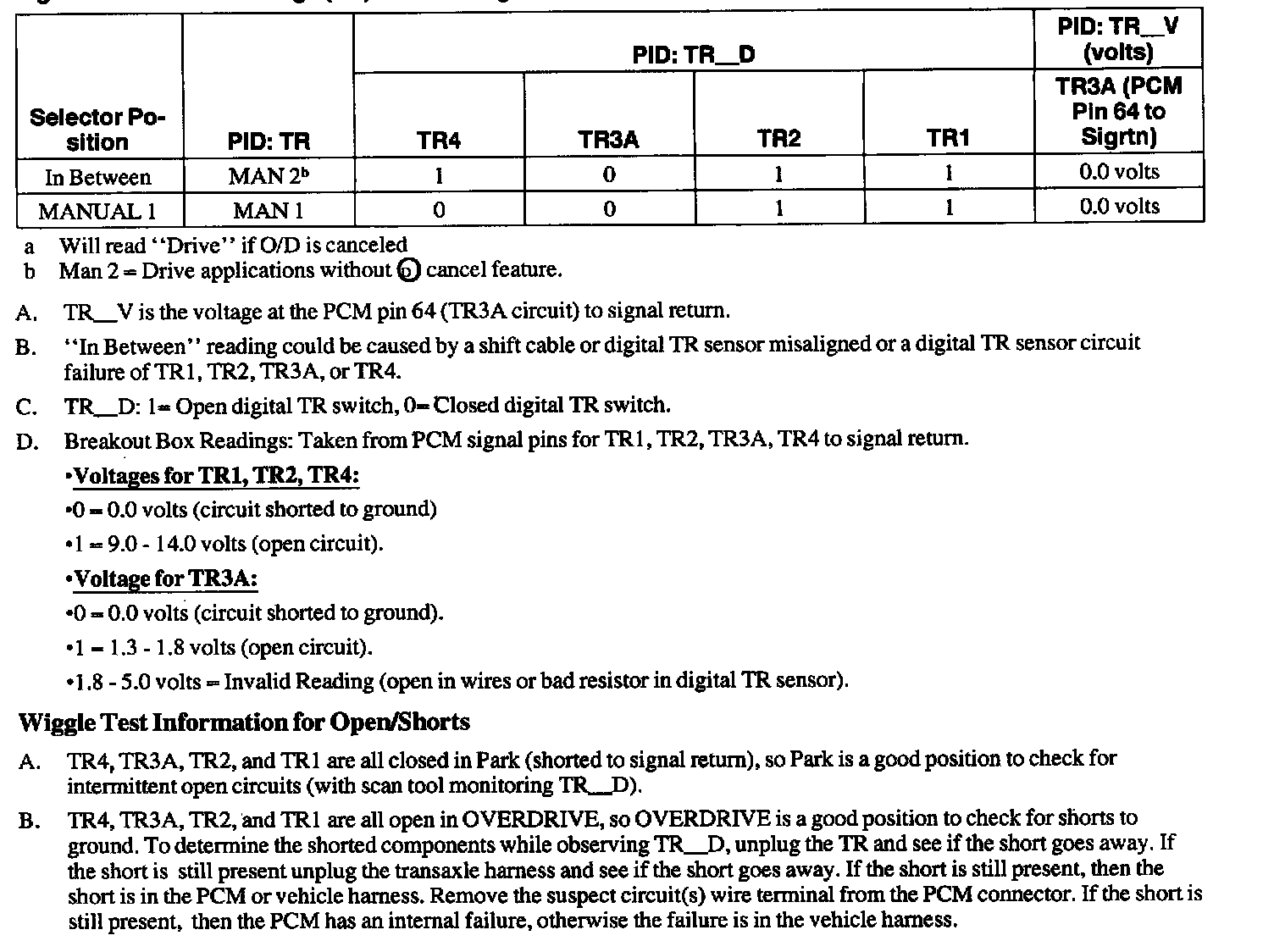

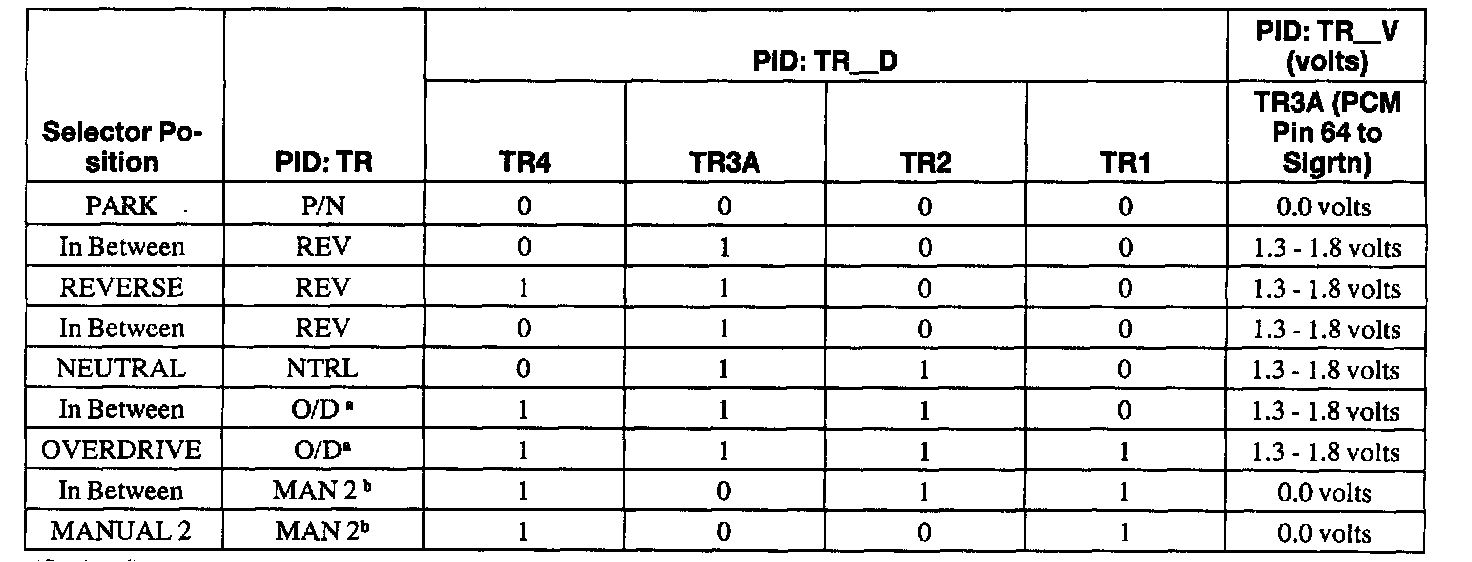

Digital Transmission Range (TR) Sensor Diagnosis Chart
