Images

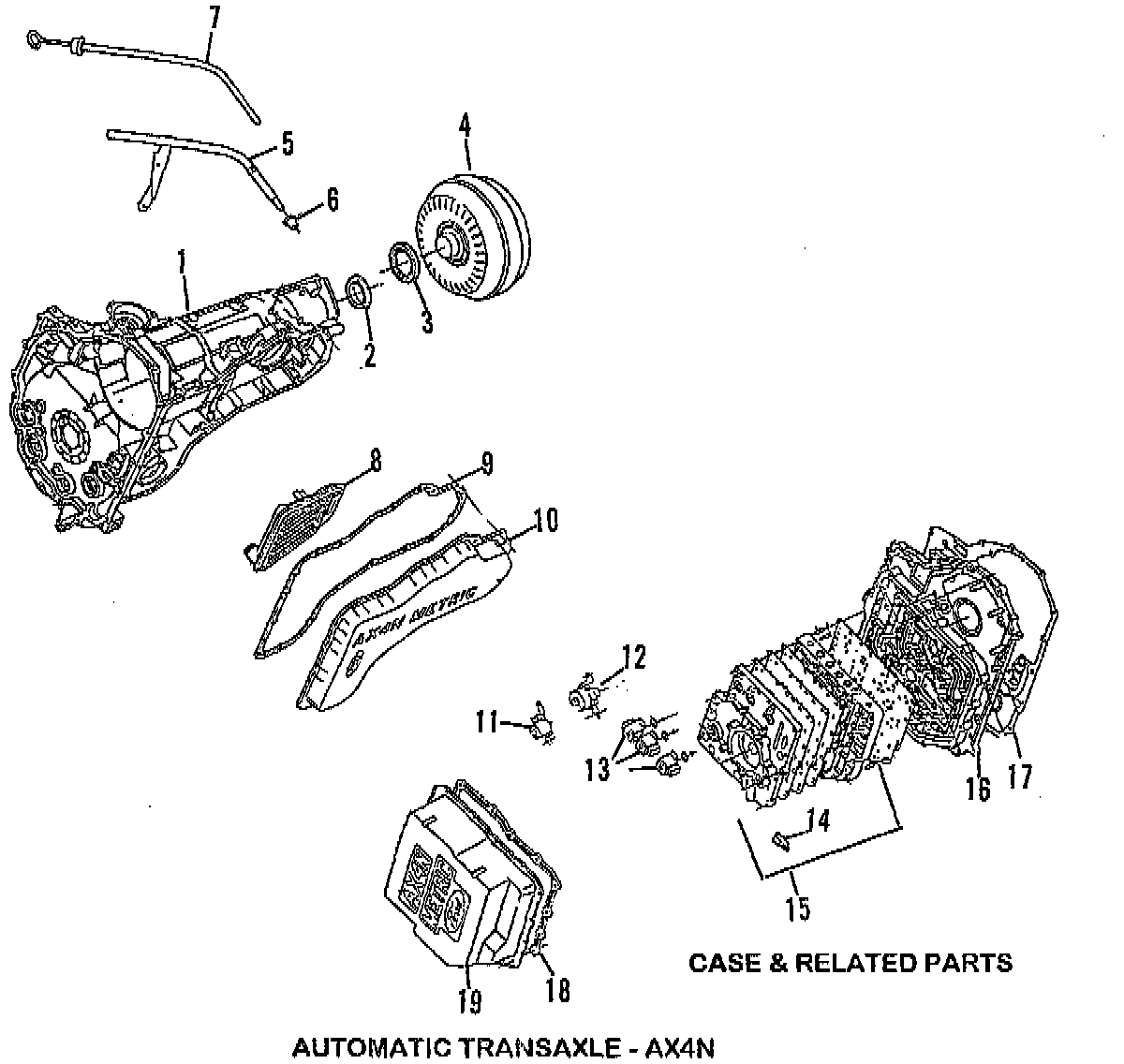

Case & Related Parts, Valve Body, AX4N/4F50N:

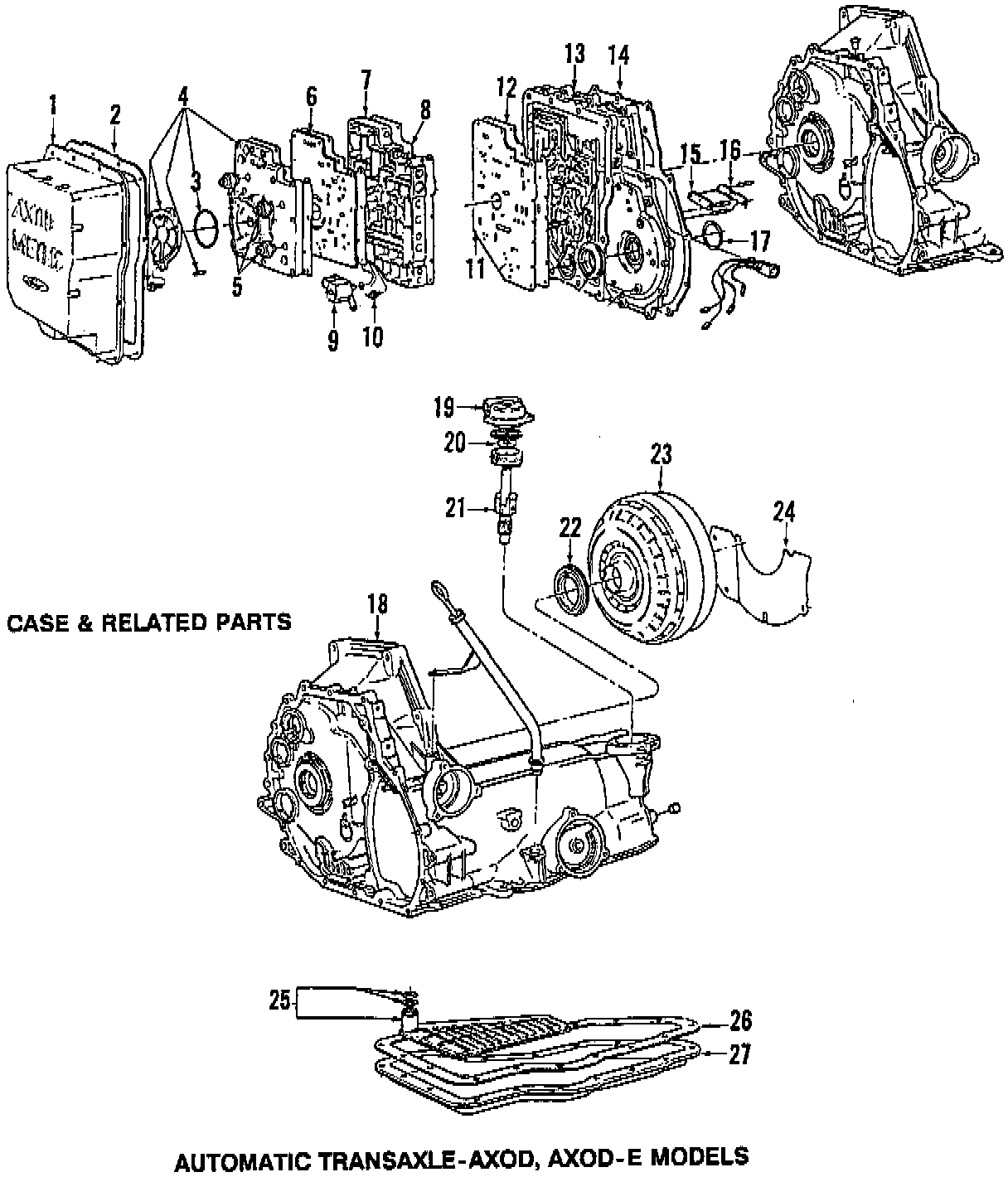

Case & Related Parts, Valve Body, AXOD-E, AX4S:

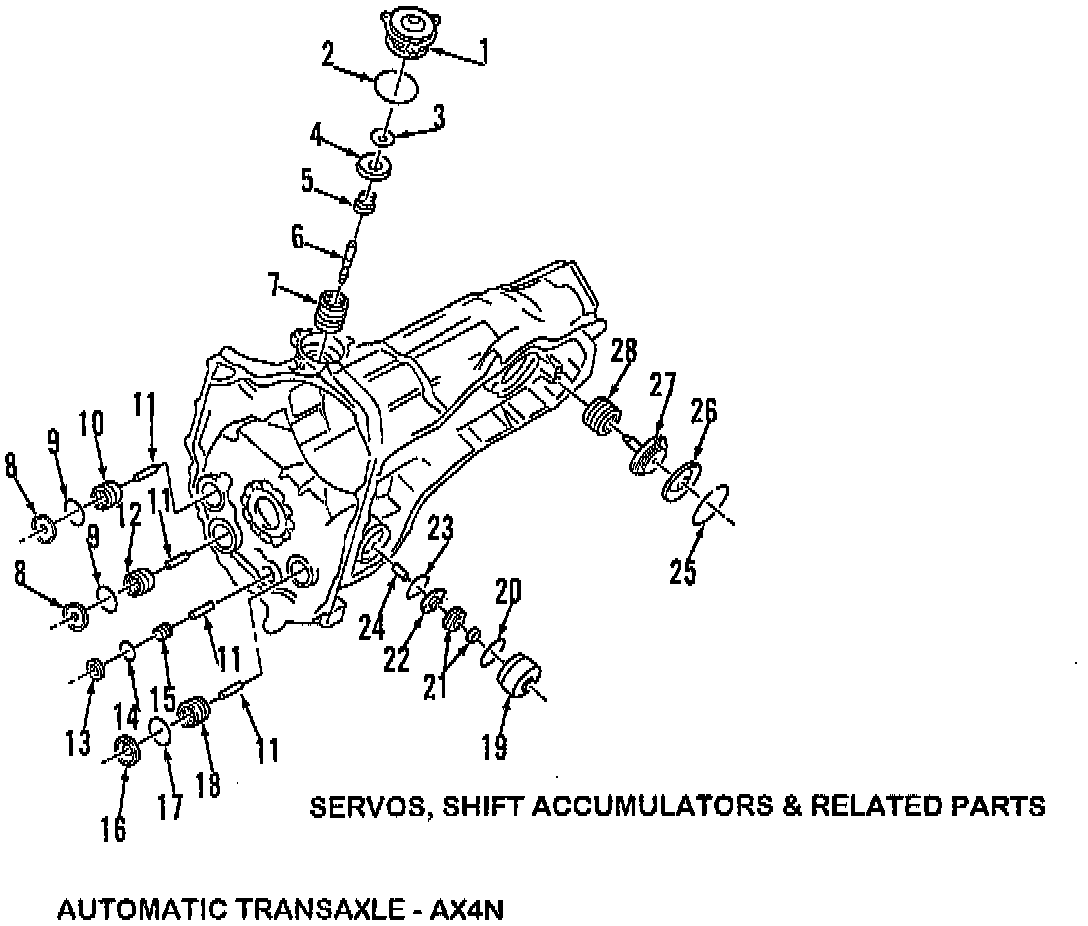

Accumulator & Servo Body, AX4N/4F50N:

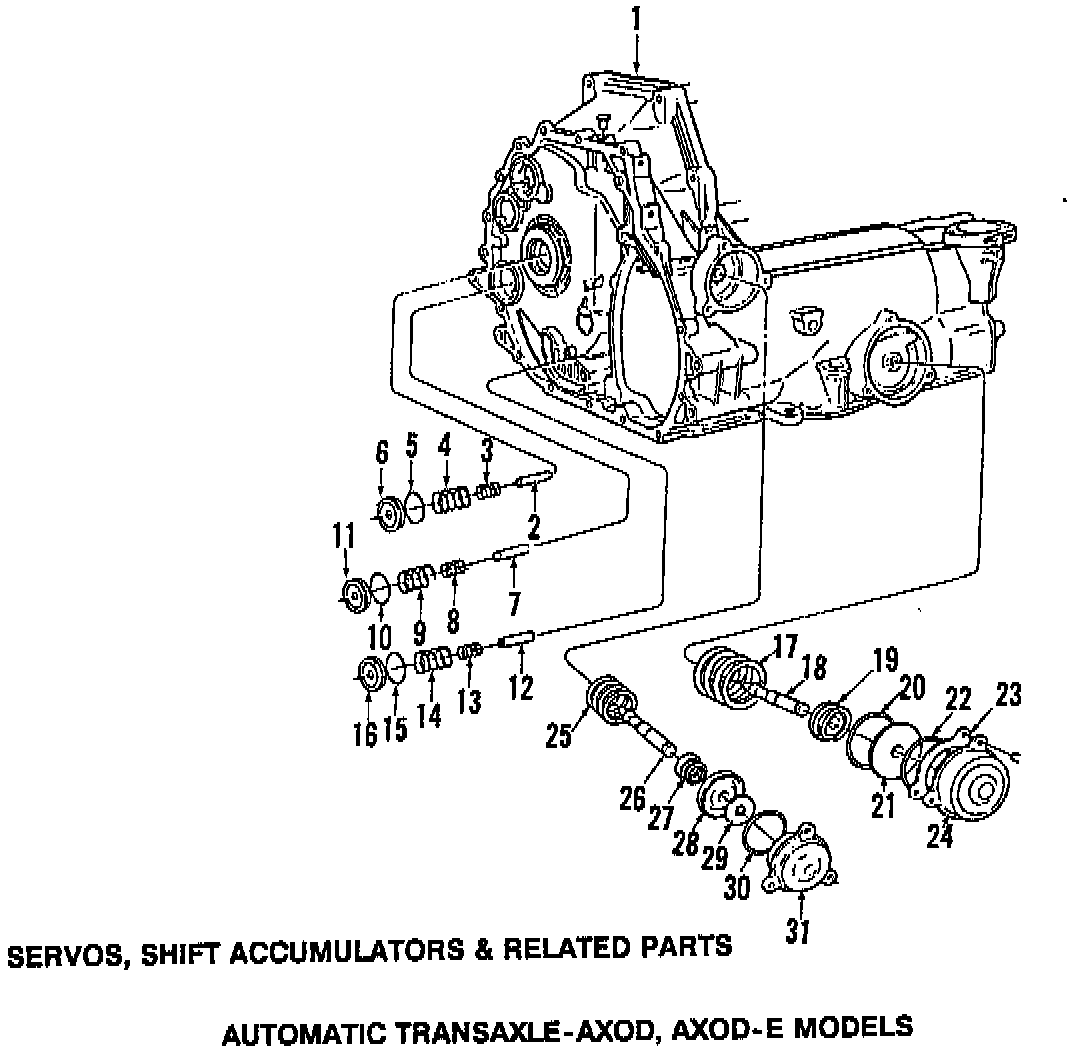

Accumulator & Servo Body, AXOD-E, AX4S:

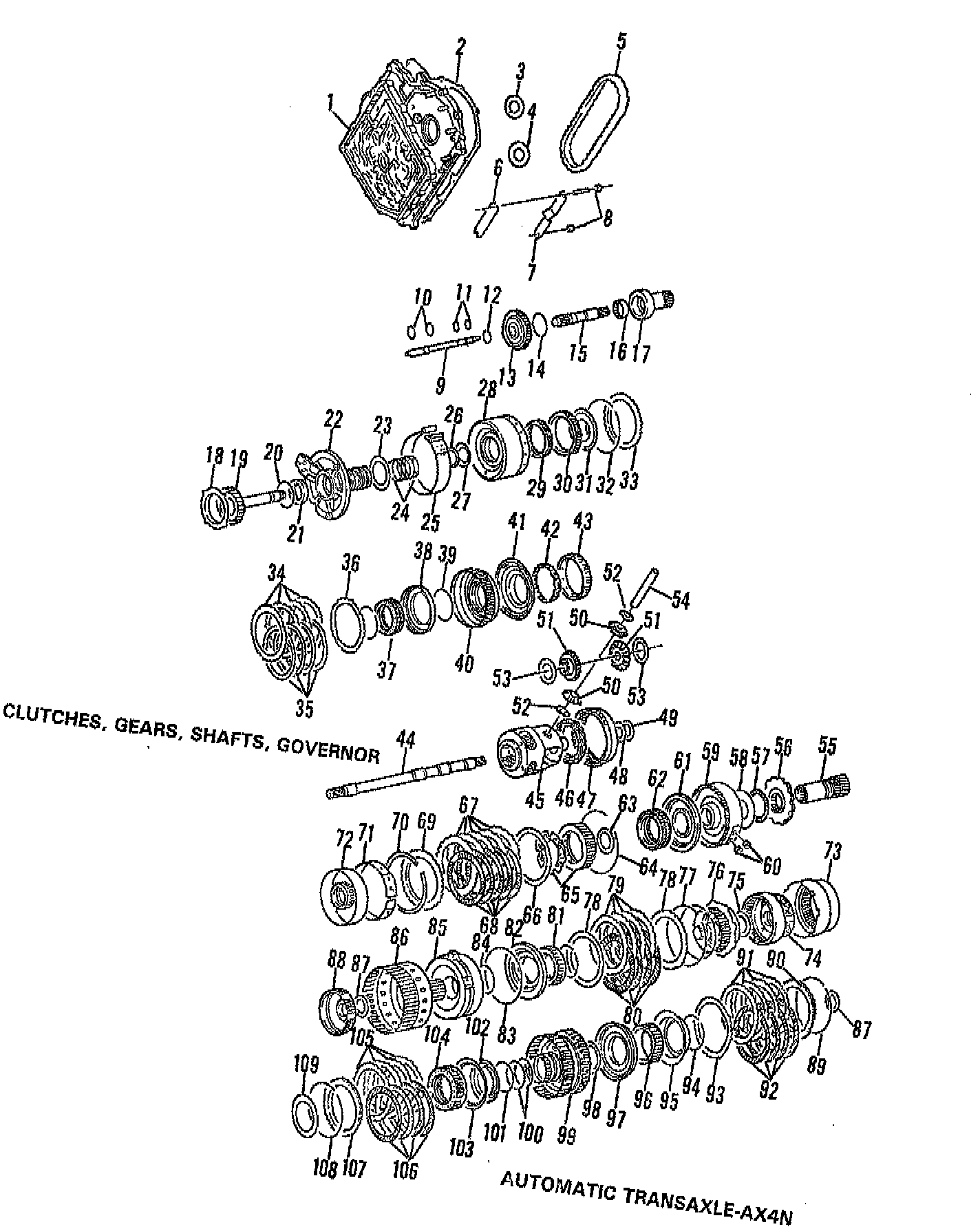

Differential, Clutches, Gear & Shafts, AX4N/4F50N:

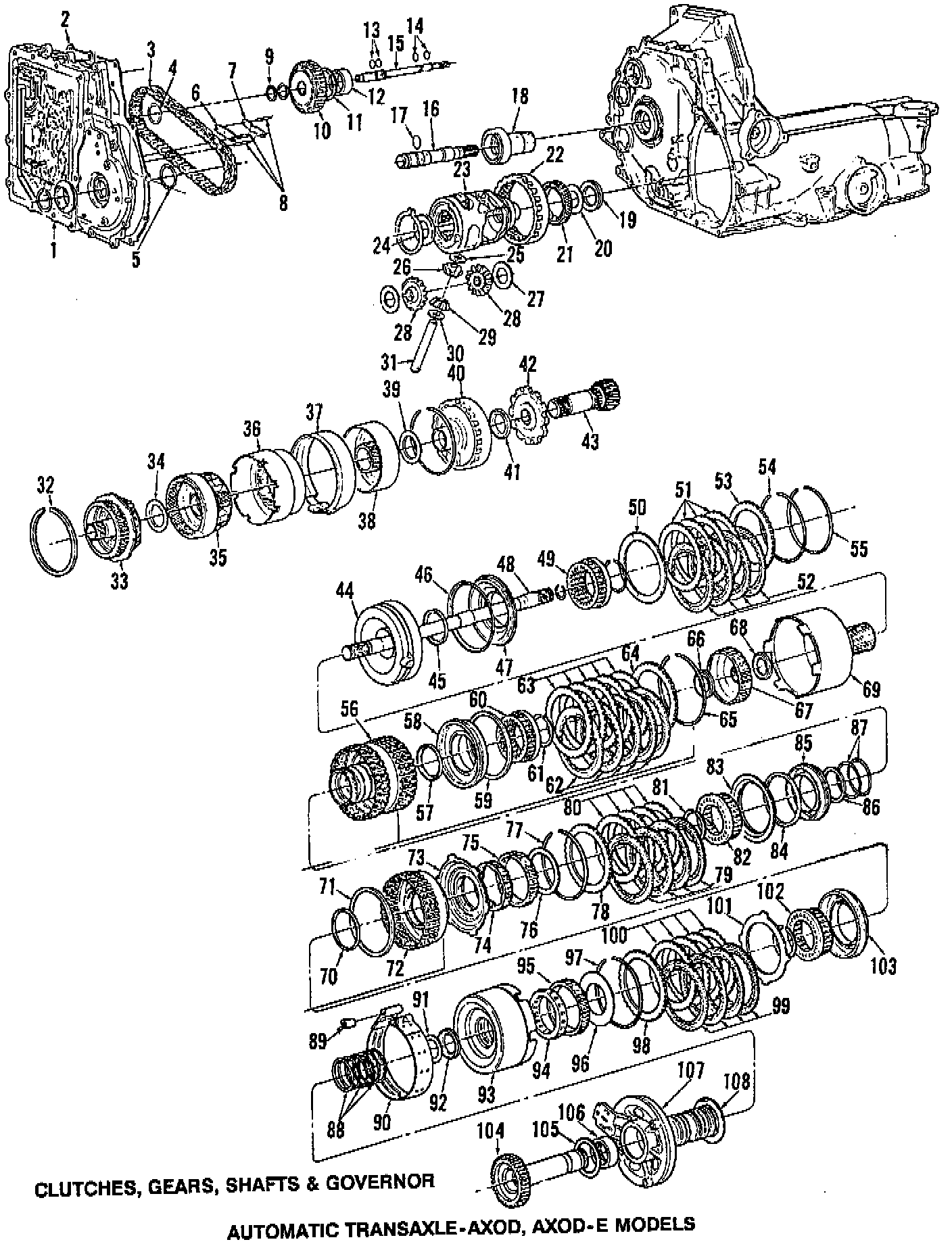

Differential, Clutches, Gear & Shafts, AXOD-E, AX4S:

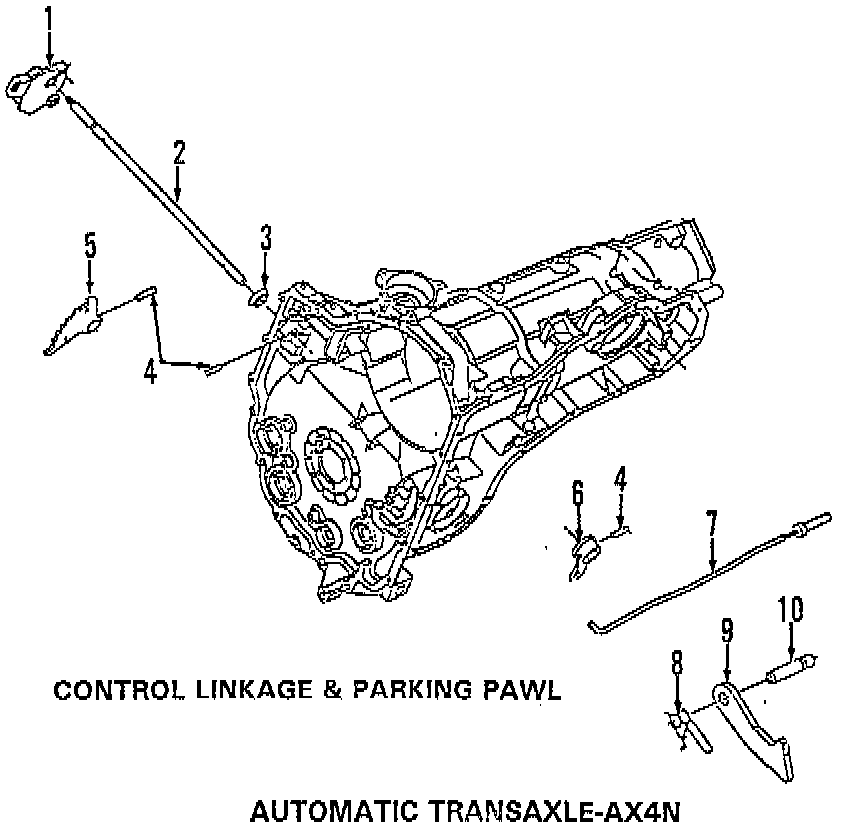

Manual Control Linkage & Parking Pawl, AX4N/4F50N:

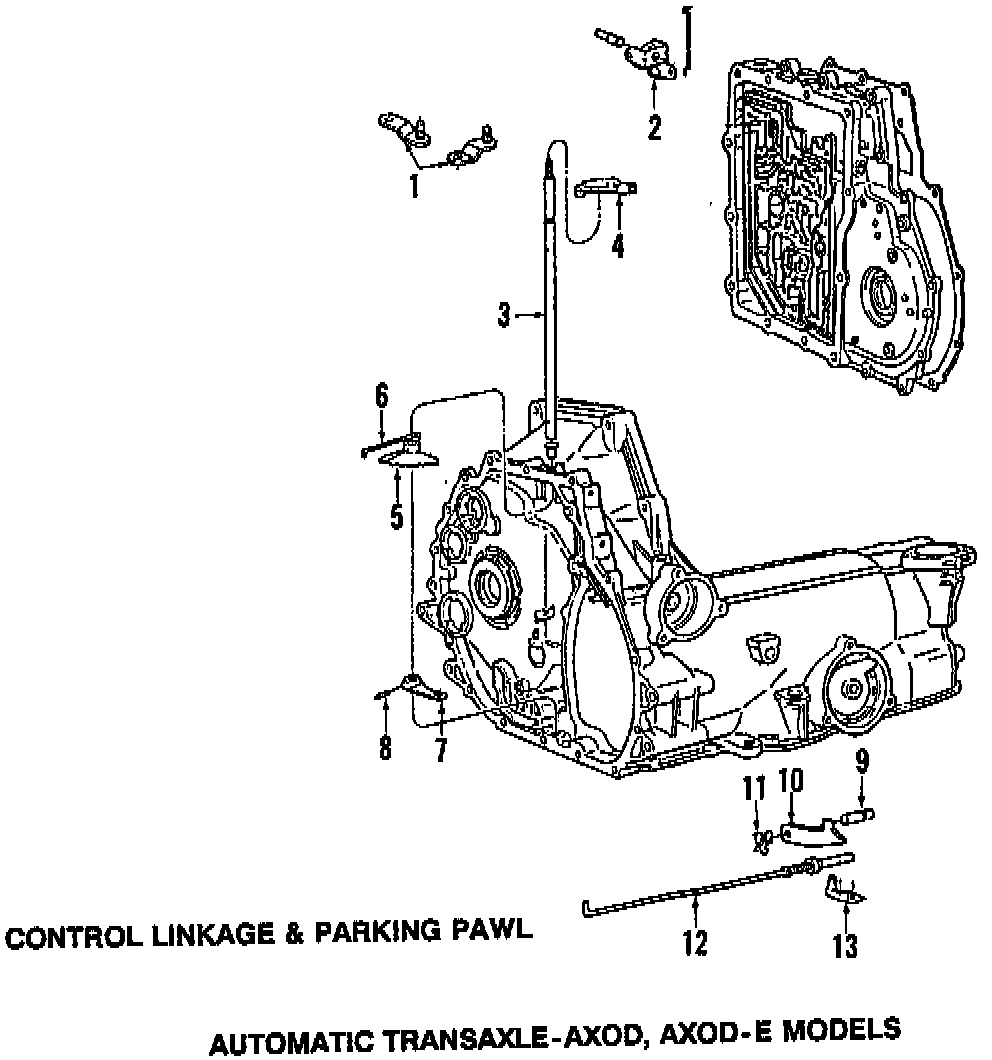

Manual Control Linkage & Parking Pawl, AXOD-E, AX4S:
