Alternator: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery. Battery Disconnect
2. Remove the crank pulley. For additional information, refer to Engine.

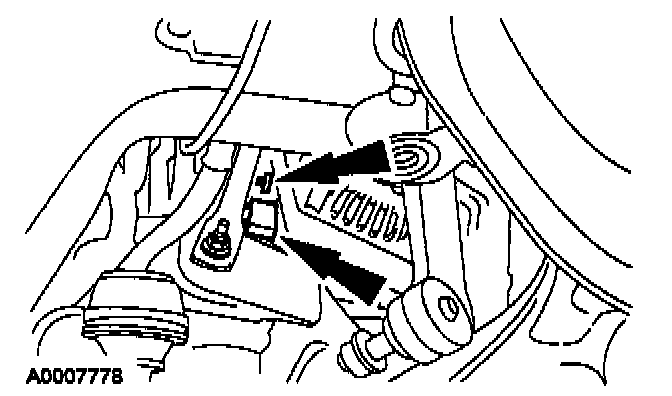

3. Remove the stator and voltage regulator connectors.

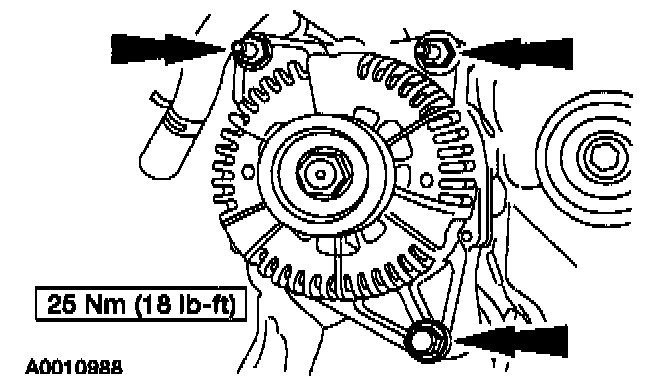

4. Remove the generator mounting bolts and remove the generator.

INSTALLATION
1. To install, reverse the removal procedure.
