Test A: 4WABS Control Module Does Not Respond to Diagnostic Tool
Test A: 4WABS Control Module Does Not Respond to Diagnostic Tool

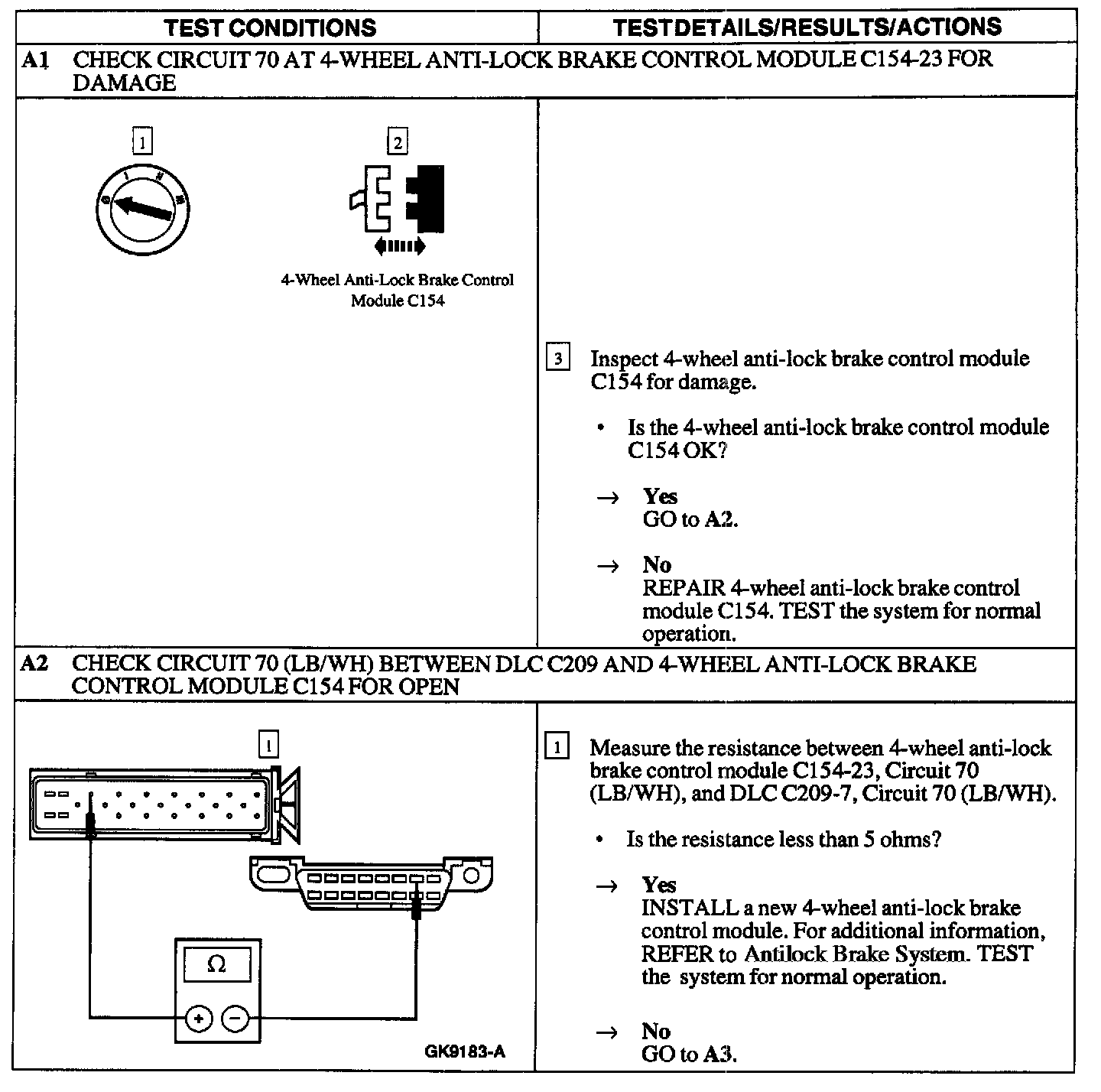

A1 - A2:

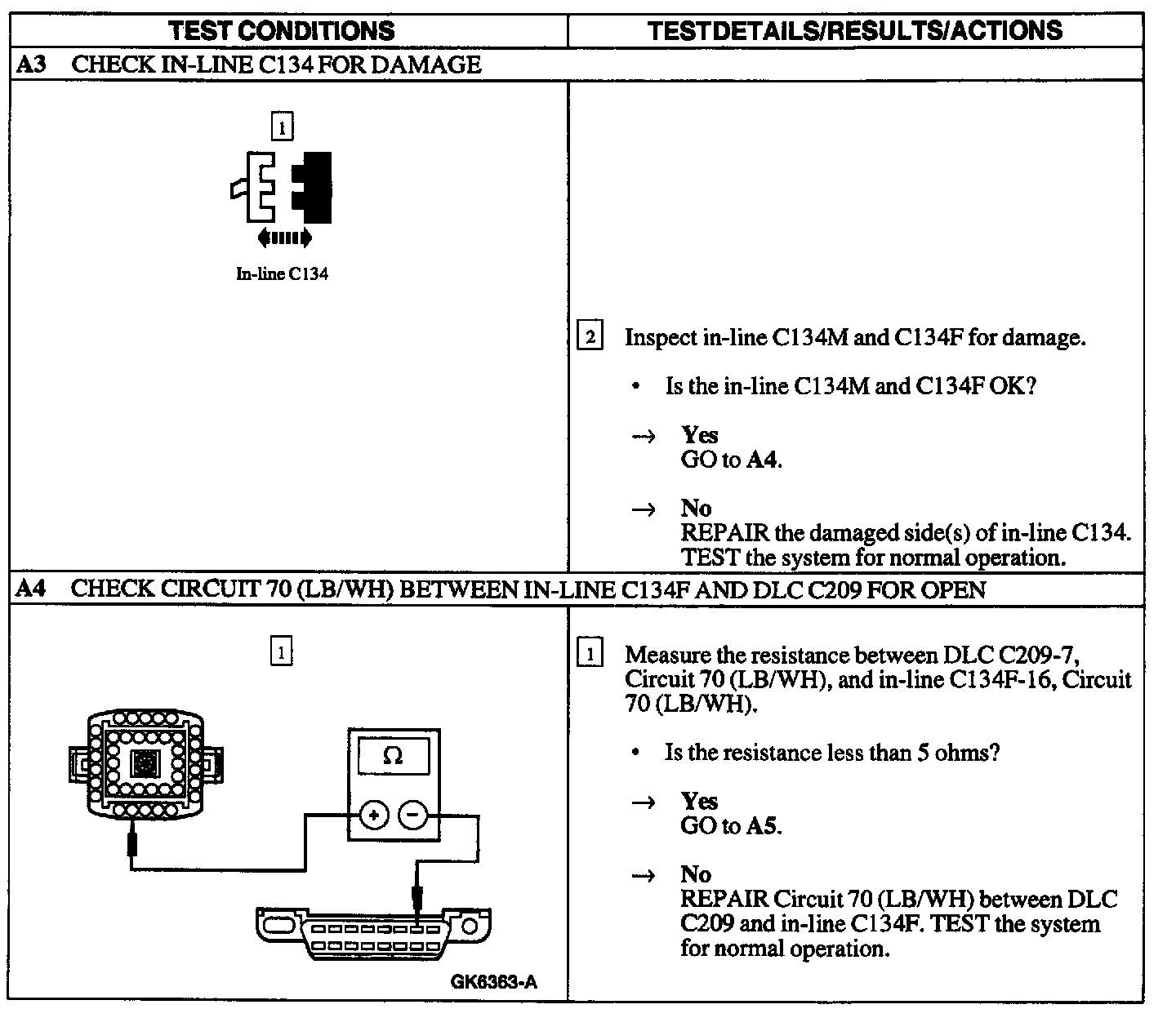

A3 - A4:

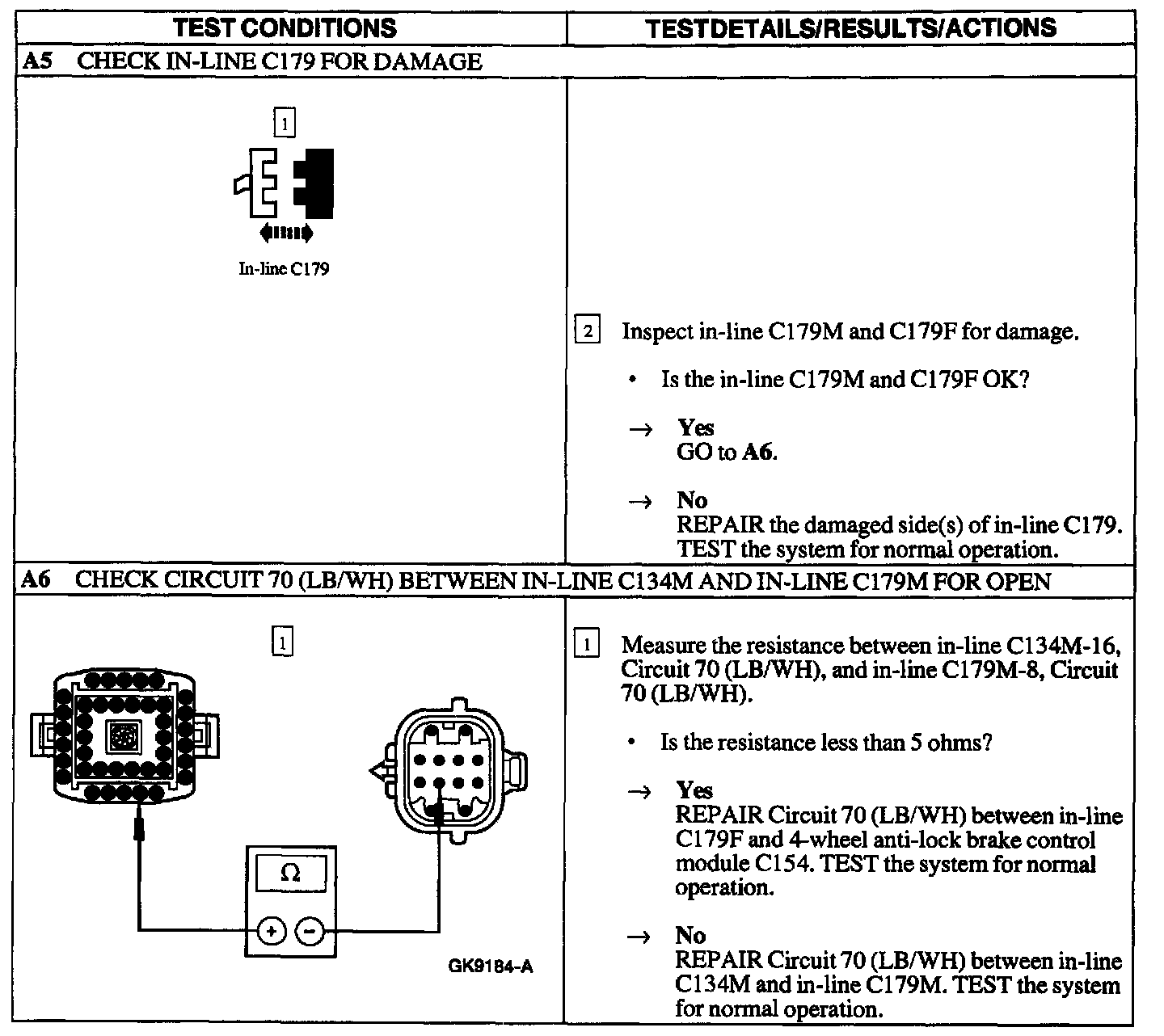

A5 - A6:
