Ranger 2WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
Disc Brake System
1 Of 2:
2 Of 2:

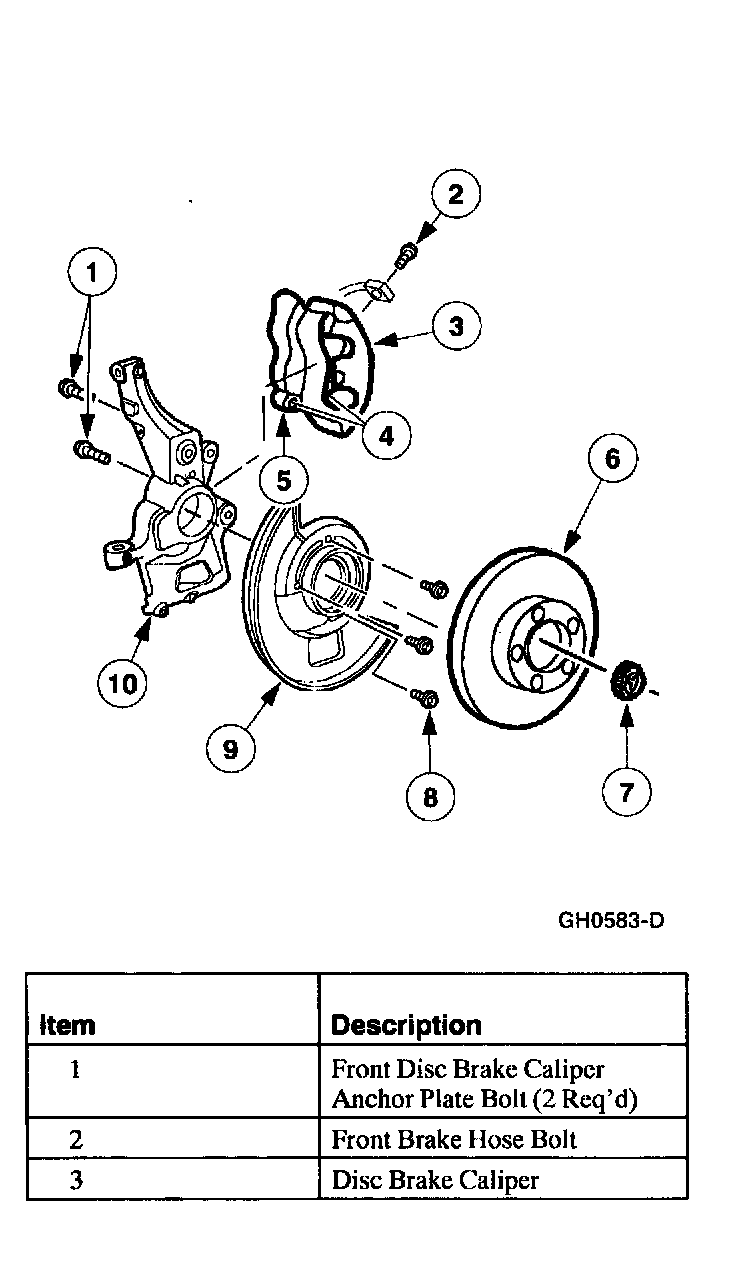

Front Disc Brake Components-4x2
1 Of 2:
2 Of 2:

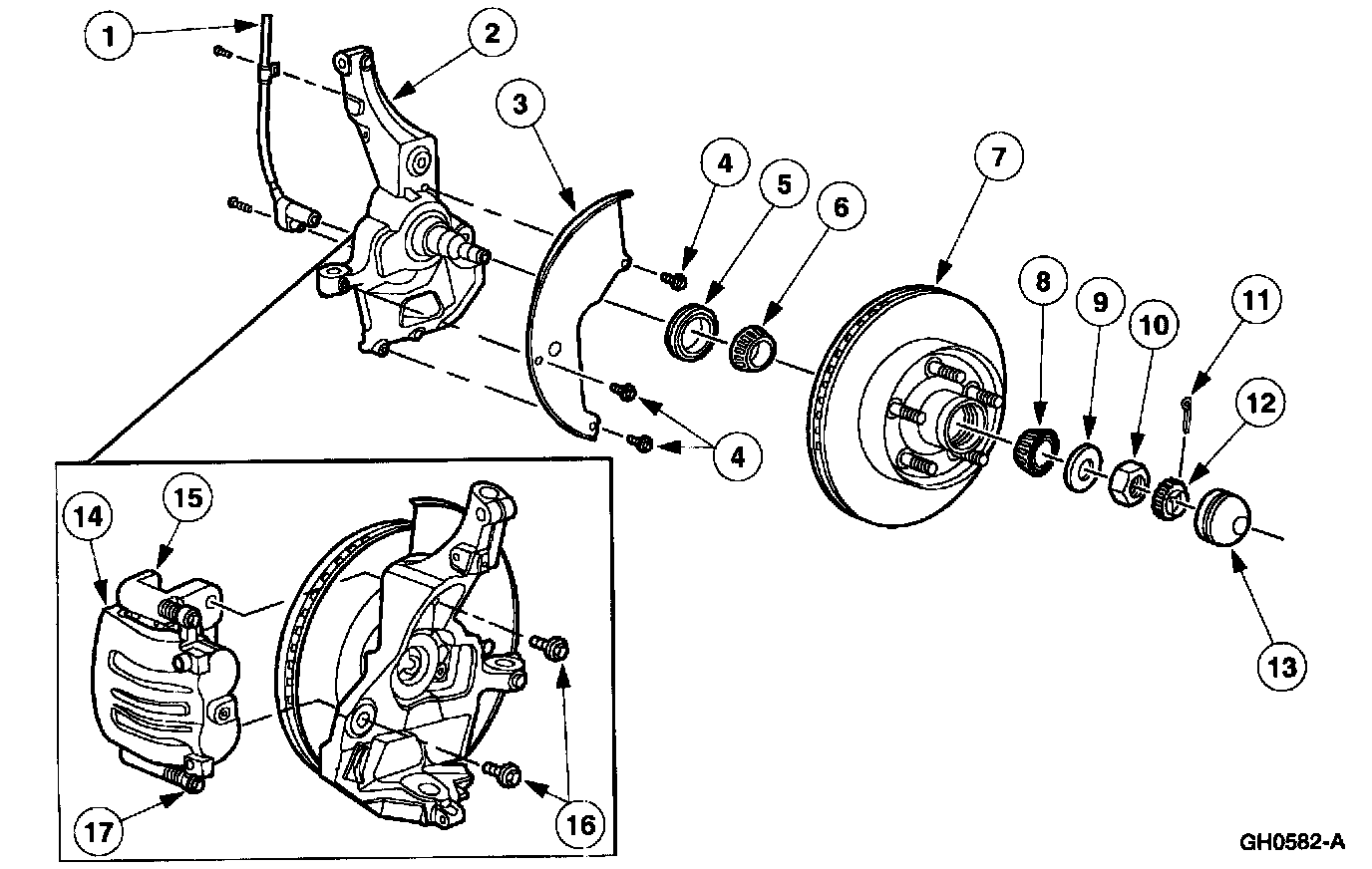

Front Disc Brake Components-4x4
