Home
>>
Ford
>>
2000
>>
Ranger 2WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
4 Wheel Antilock Brake System Module

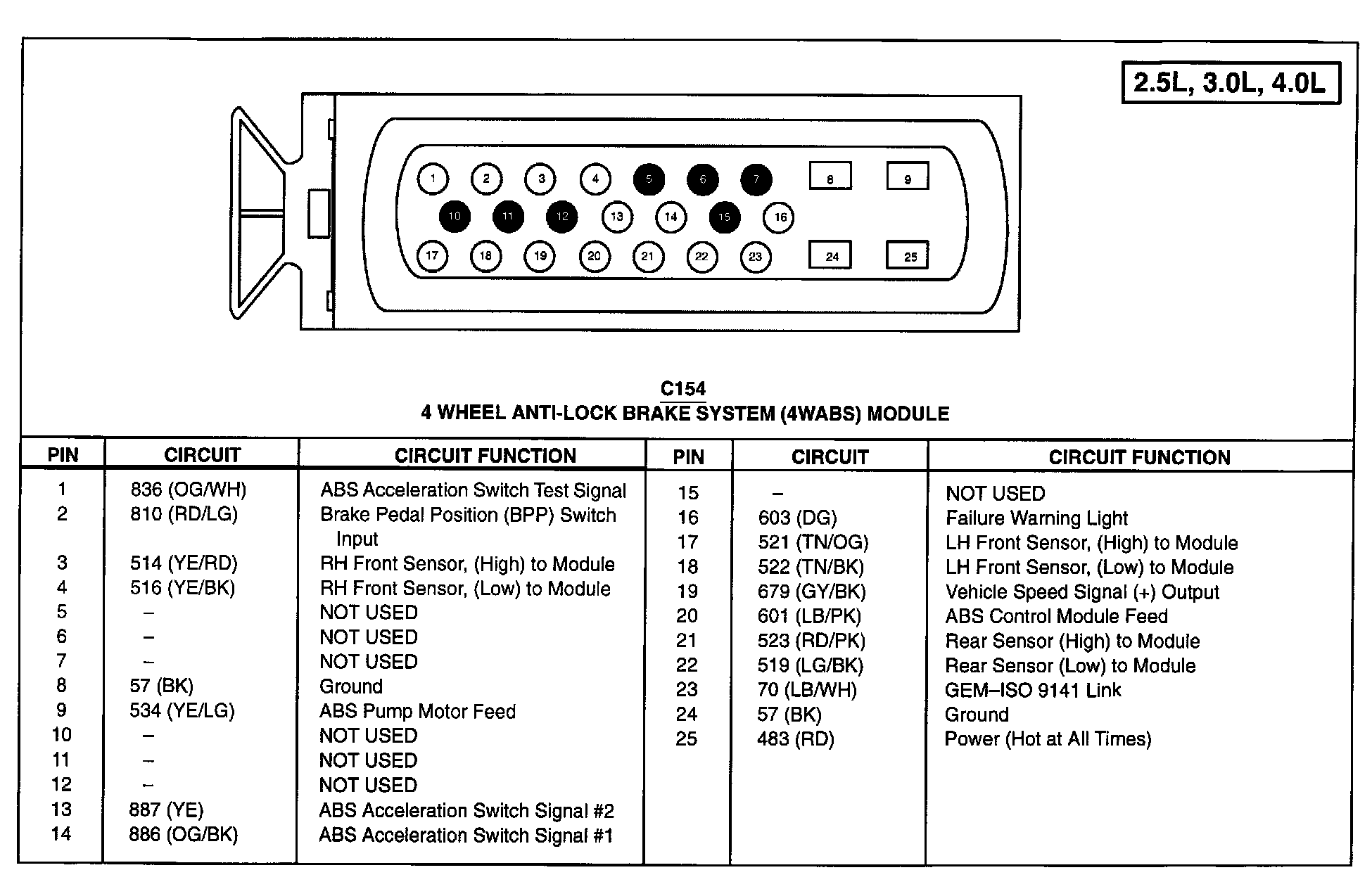

4 Wheel Antilock Brake System Module
