Ford
>>
2000
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Master Window/Door Lock Control Switch
Master Window/Door Lock Control Switch

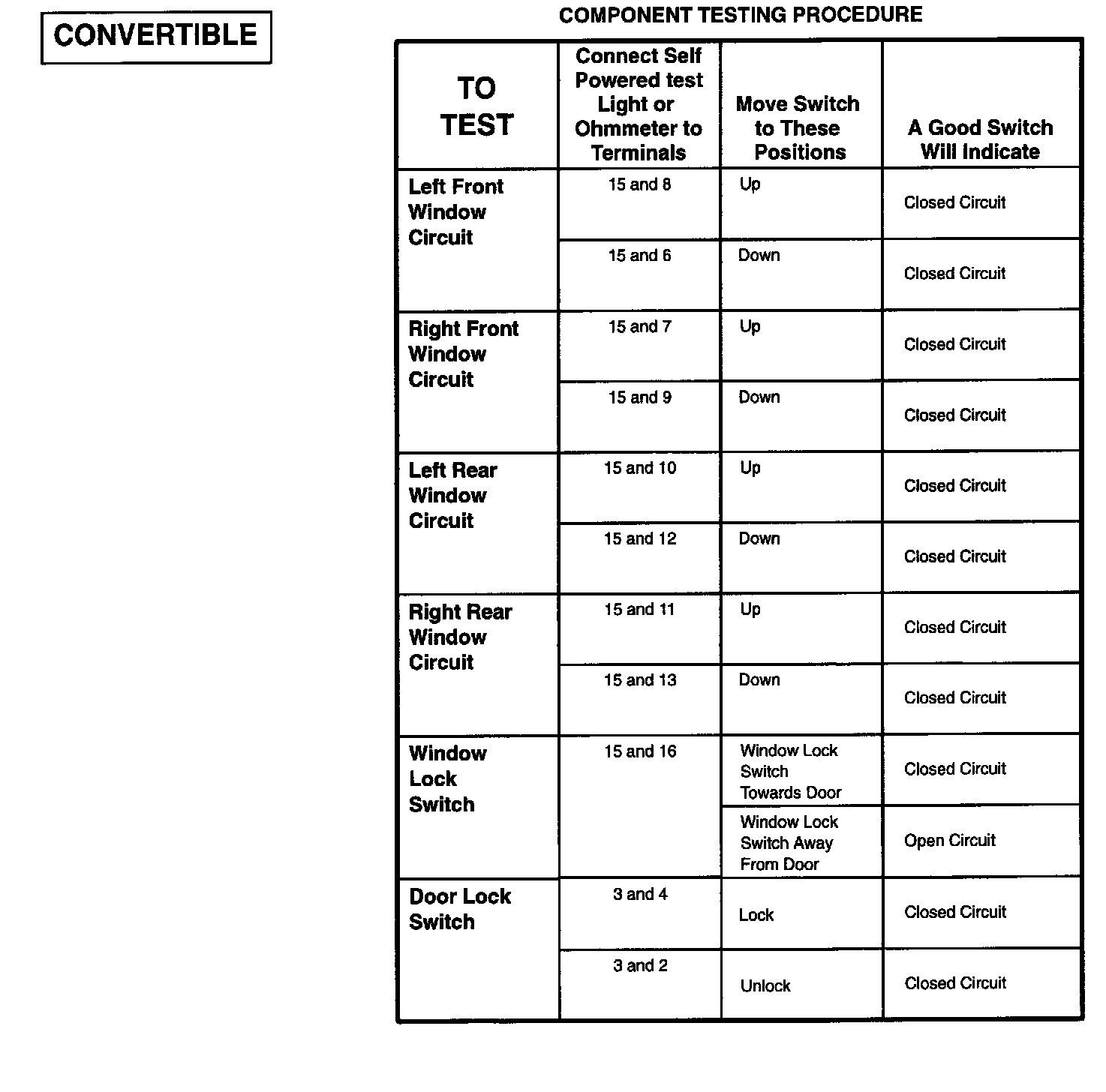

Component Testing Procedure:
Component Testing Procedure:
Component Testing Procedure:
Component Testing Procedure:
Terminals:
Terminals:
Schematic:
Schematic:
