Starter Relay: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

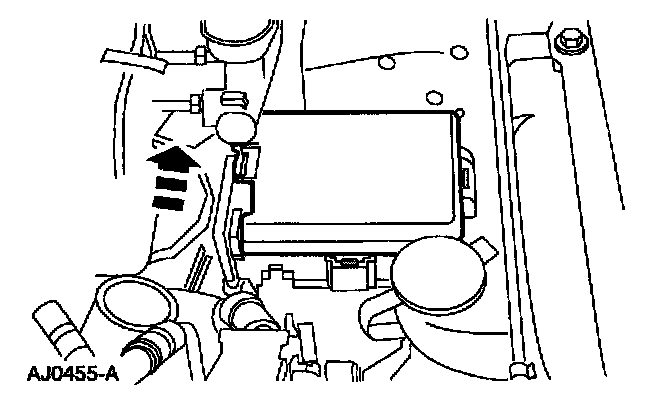

2. Remove the power distribution box cover.

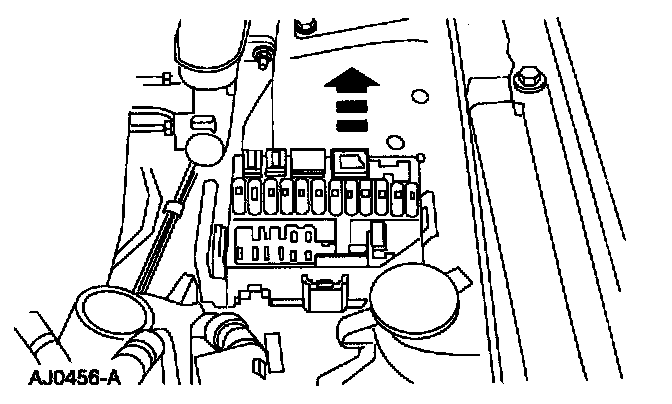

3. Remove the starter relay from the power distribution box.

INSTALLATION
1. To install, reverse the removal procedure.
