Camshaft Position (CMP) Sensor

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

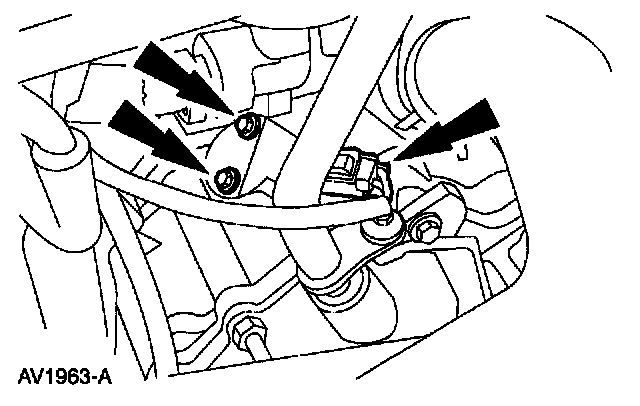

2. Remove the Camshaft Position (CMP) sensor:
- Disconnect the connector.
- Remove the bolts and the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
