Home >> Ford >> 2000 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

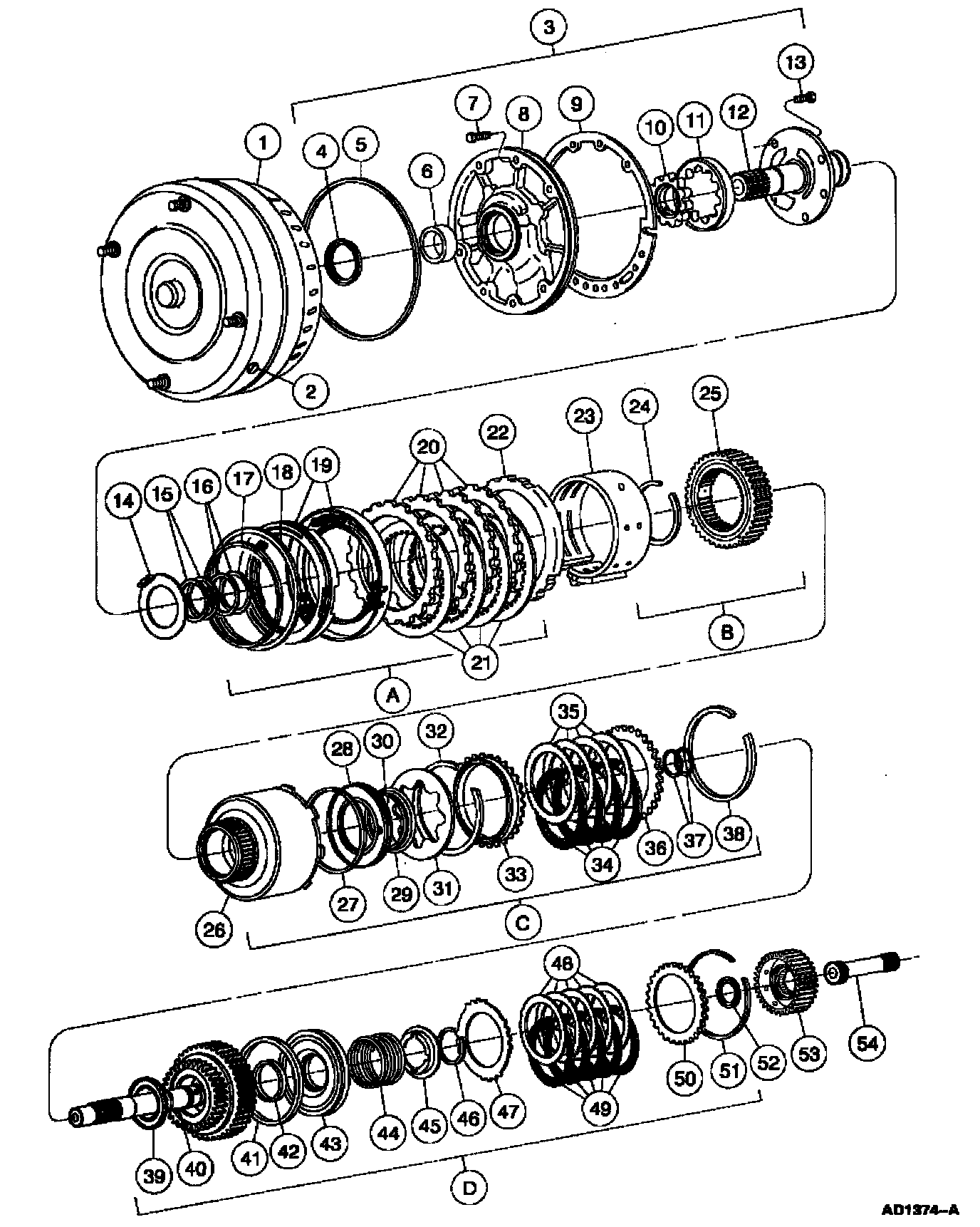

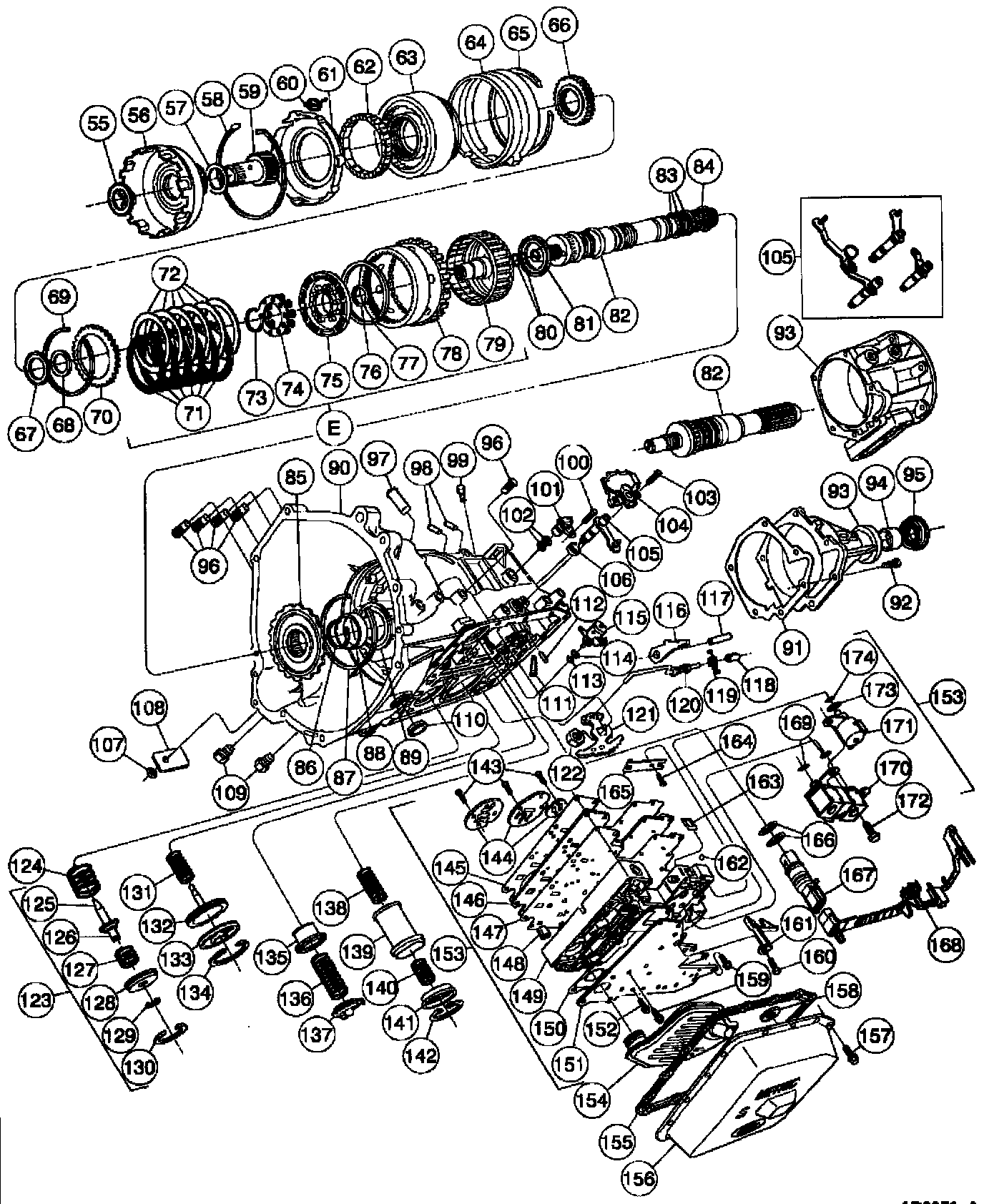

Automatic Transmission/Transaxle





1 of 6





2 of 6





3 of 6





4 of 6





5 of 6





6 of 6
