Home >> Ford >> 2000 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Right Window/Door Lock Control Switch

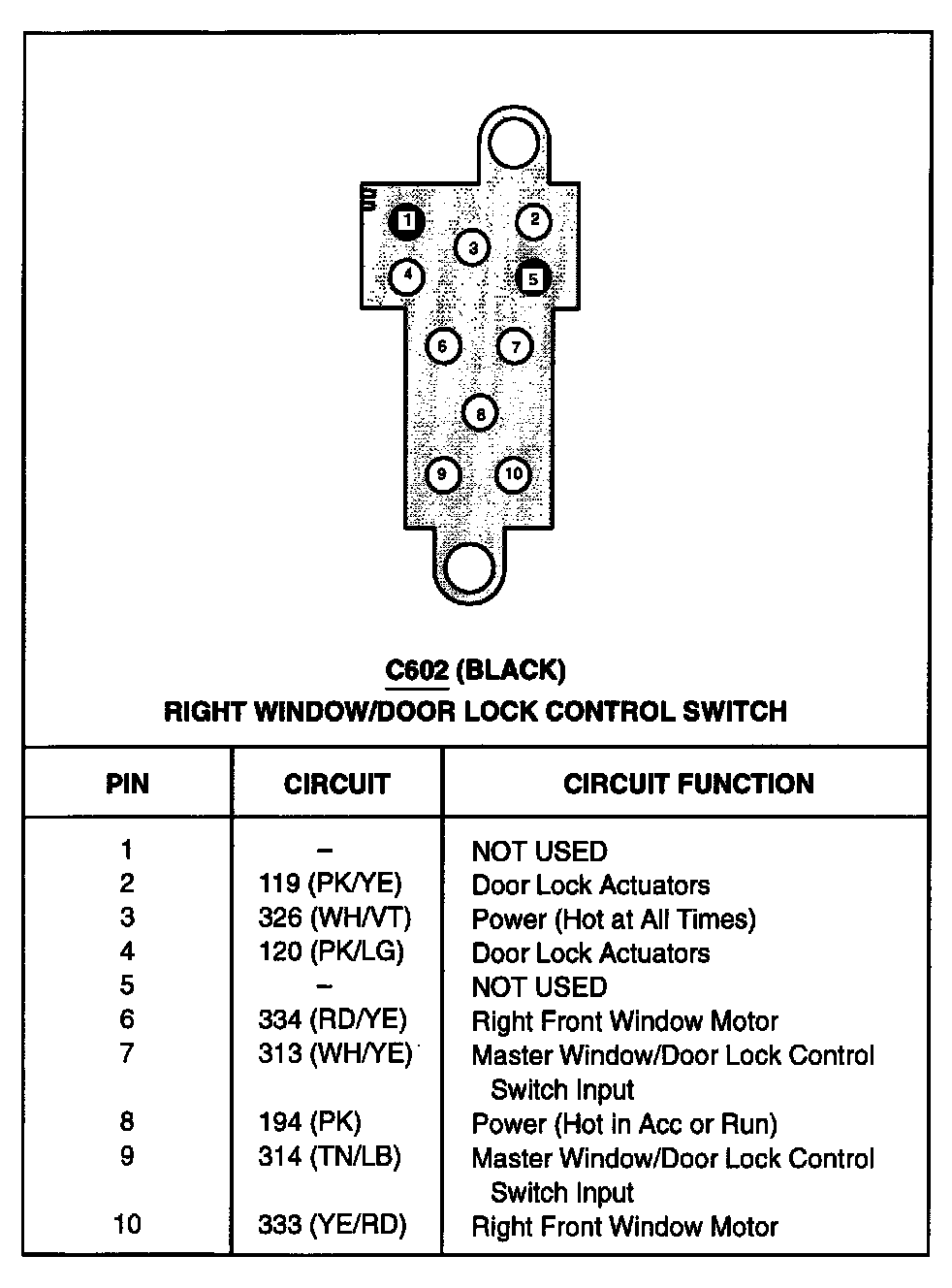

Right Window/Door Lock Control Switch
