Home >> Ford >> 2000 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinpoint Tests >> Test E: Panic Function Does Not Operate Correctly

Test E: Panic Function Does Not Operate Correctly

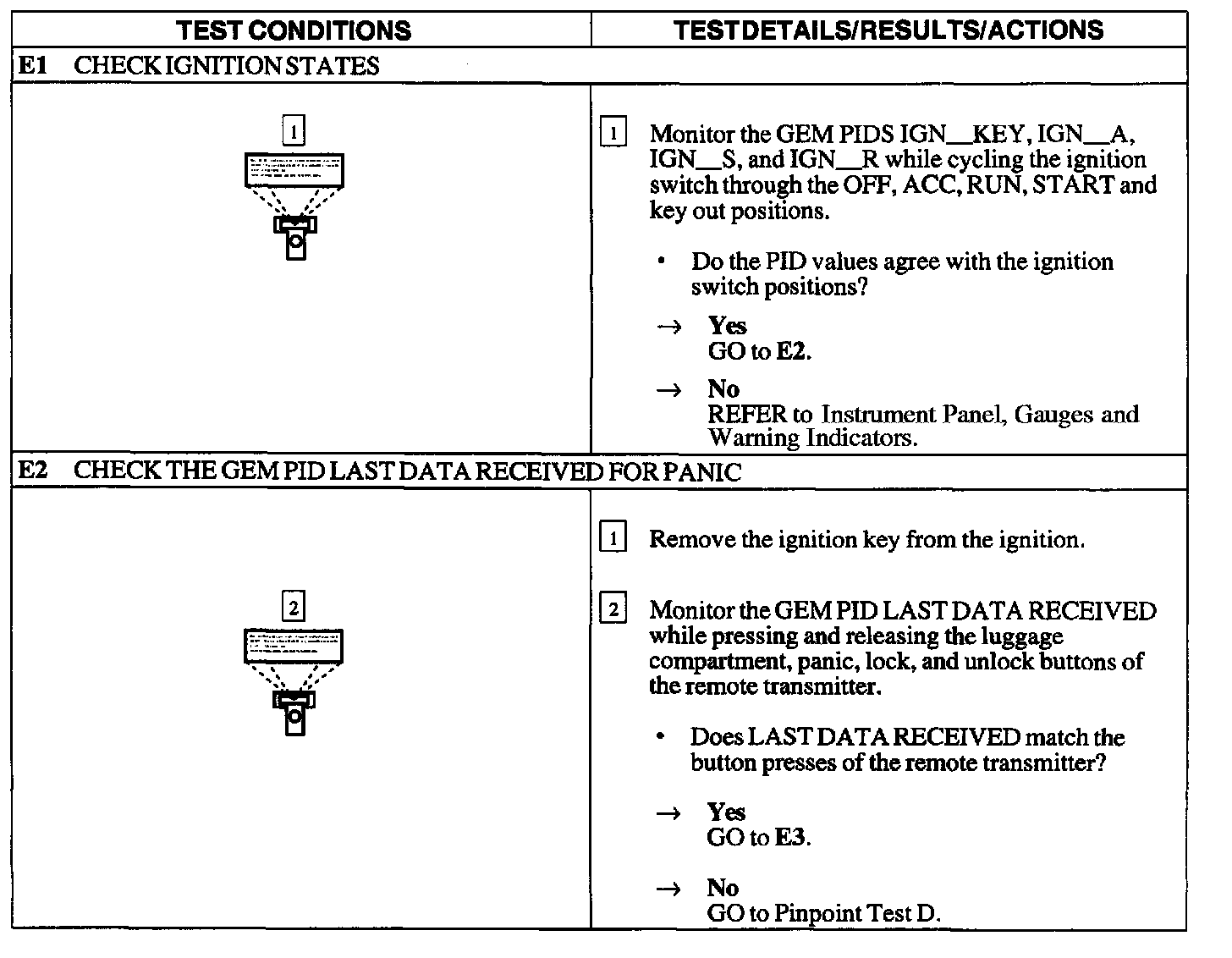

E1 - E2:

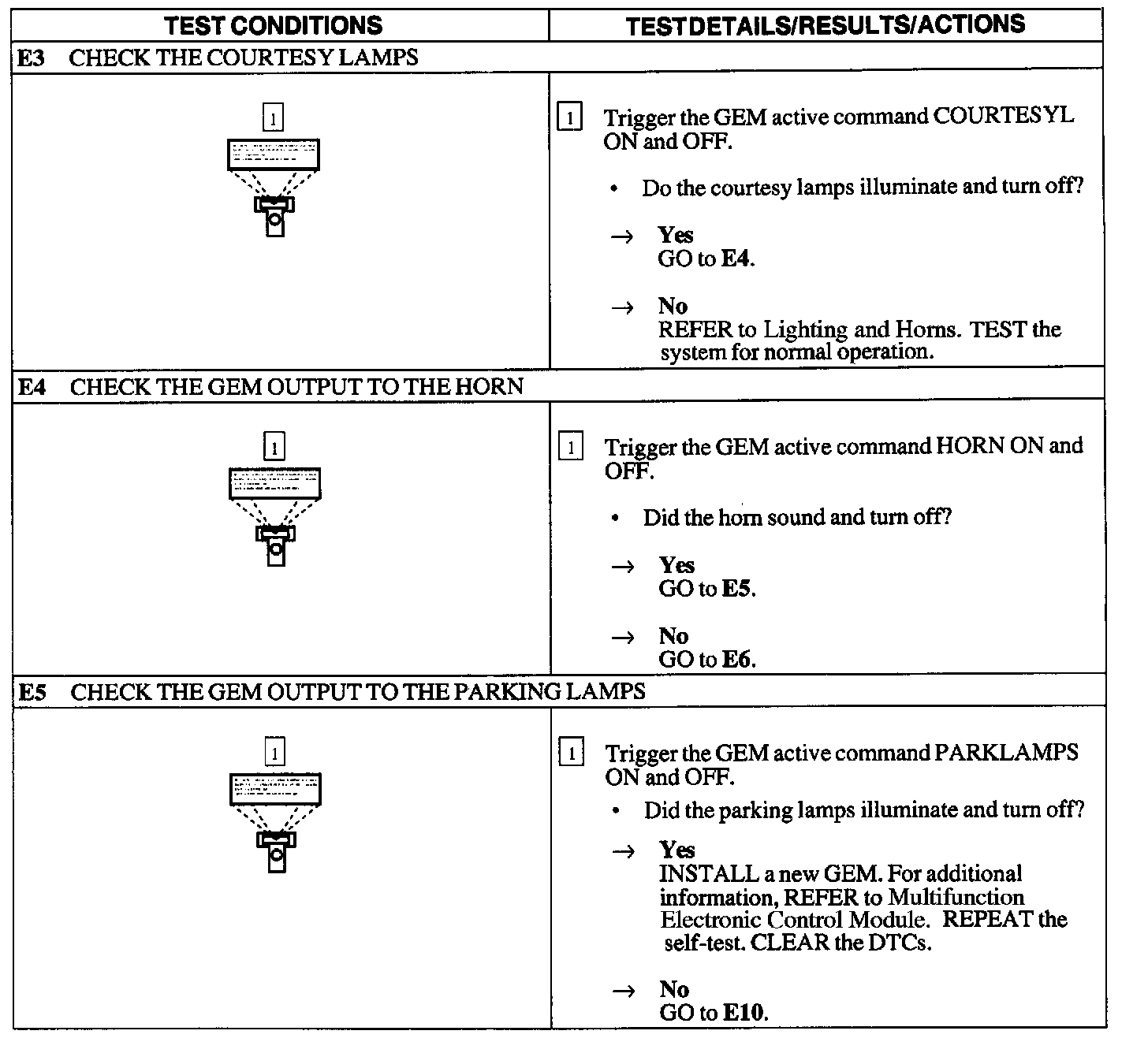

E3 - E5:

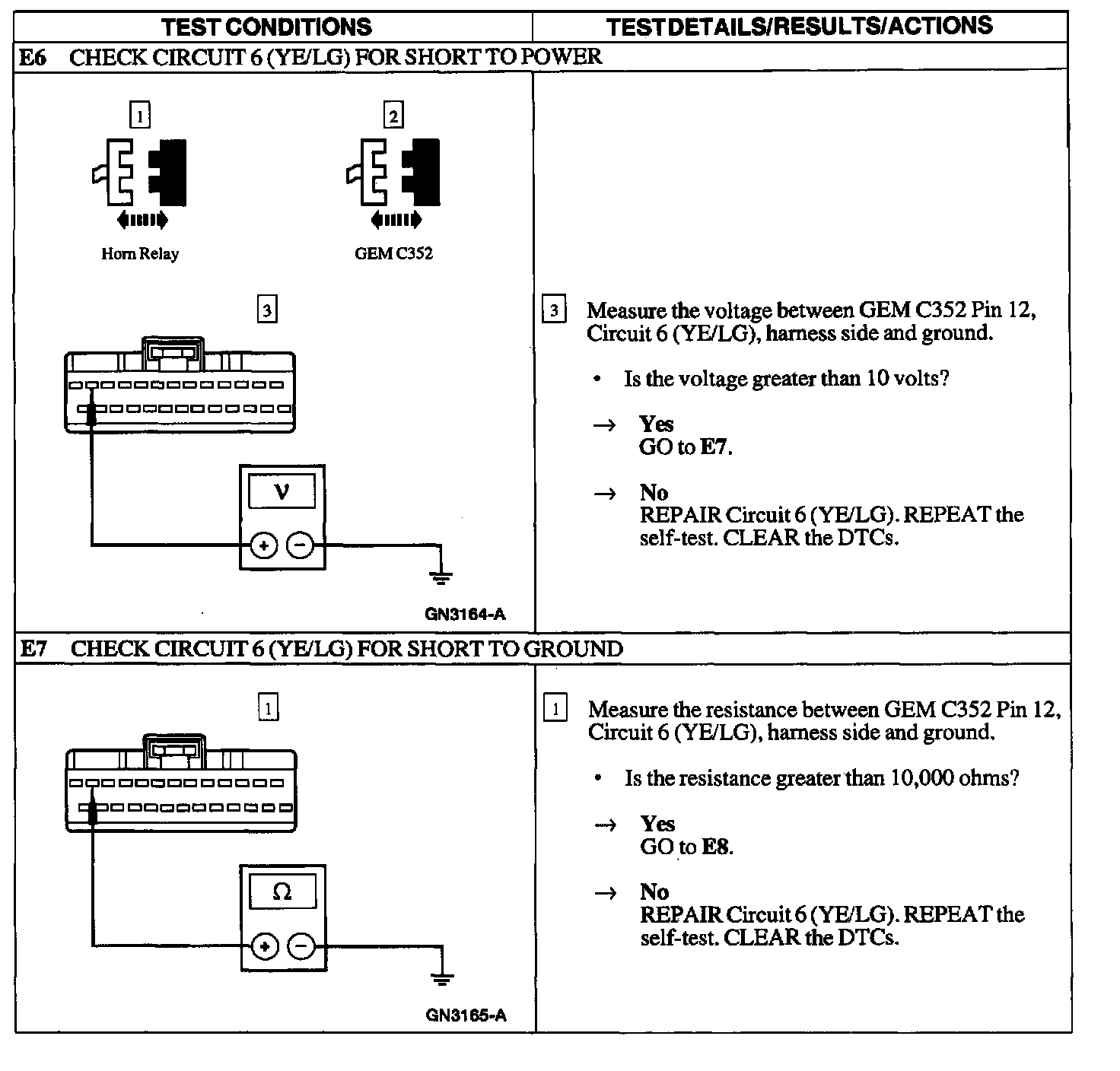

E6 - E7:

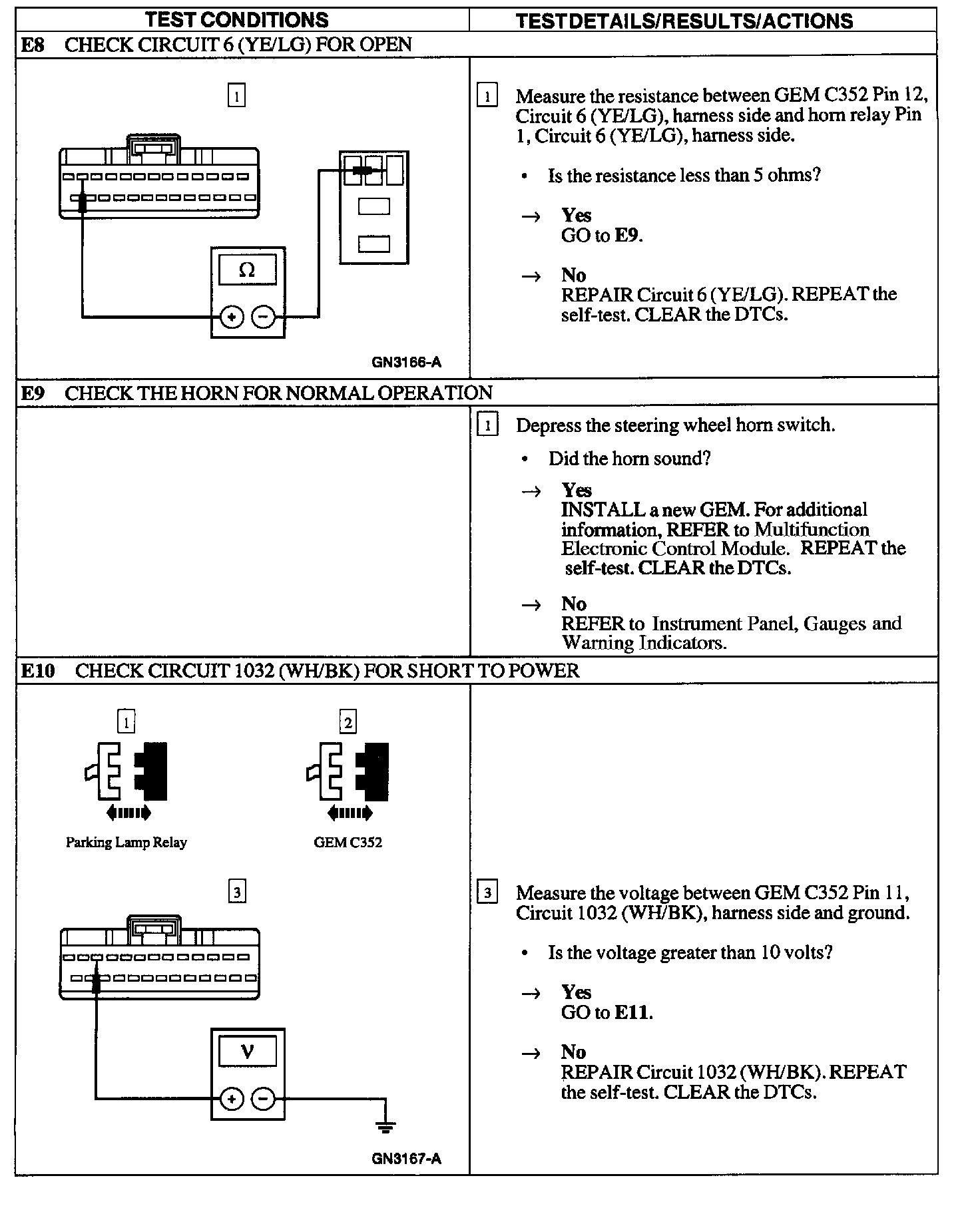

E8 - E10:

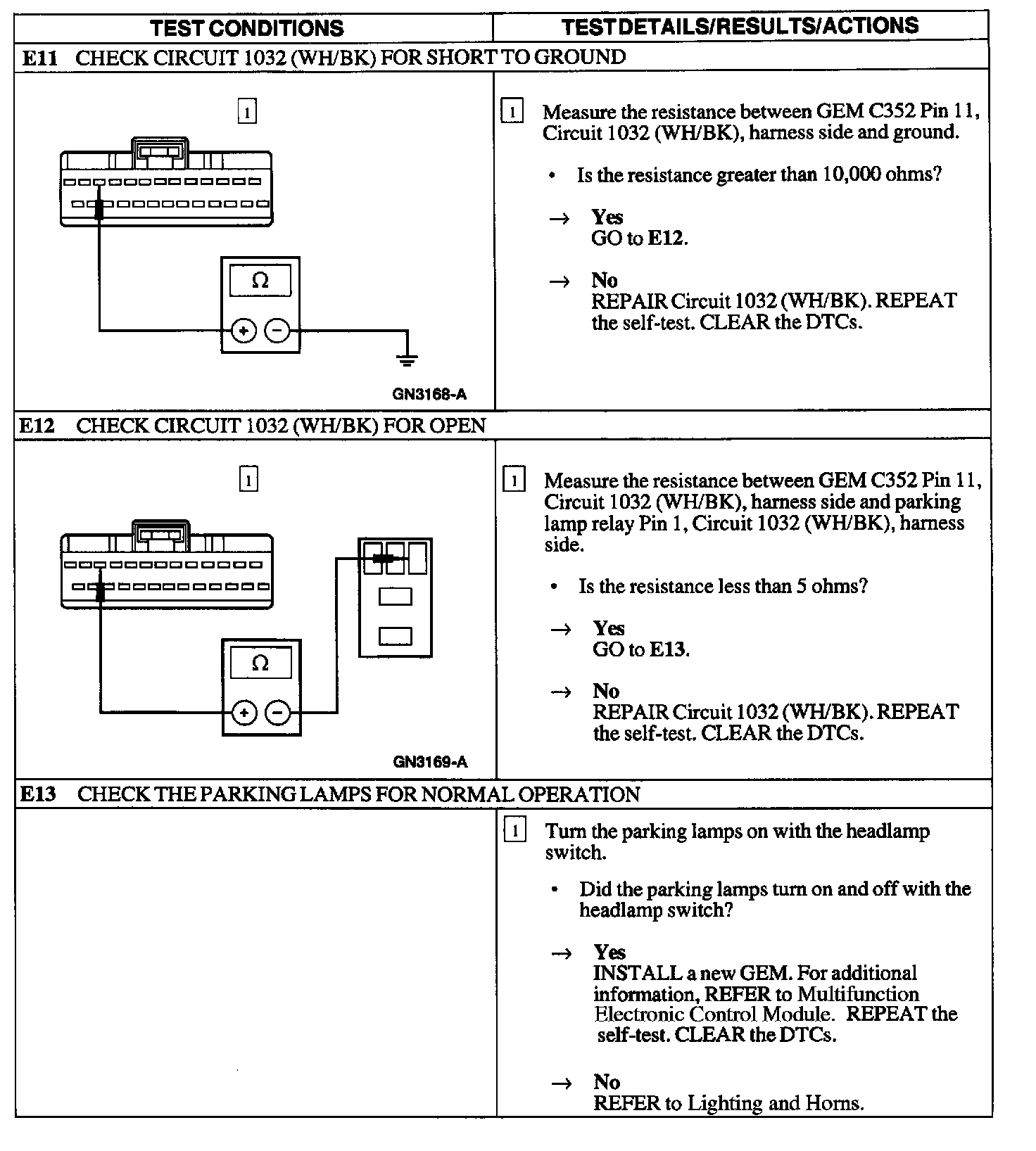

E11 - E13:
