Home >> Ford >> 2000 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams

Main Relay (Computer/Fuel System): Diagrams

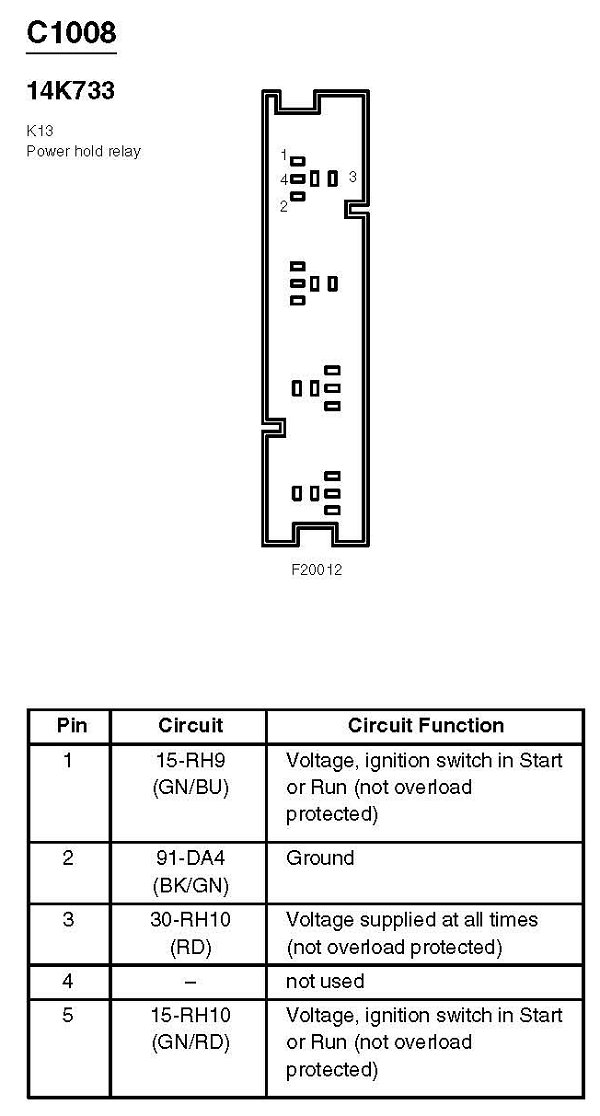

C1008:
