Home >> Ford >> 2000 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test F: PCM Does Not Respond To The Diagnostic Tool

Test F: PCM Does Not Respond To The Diagnostic Tool

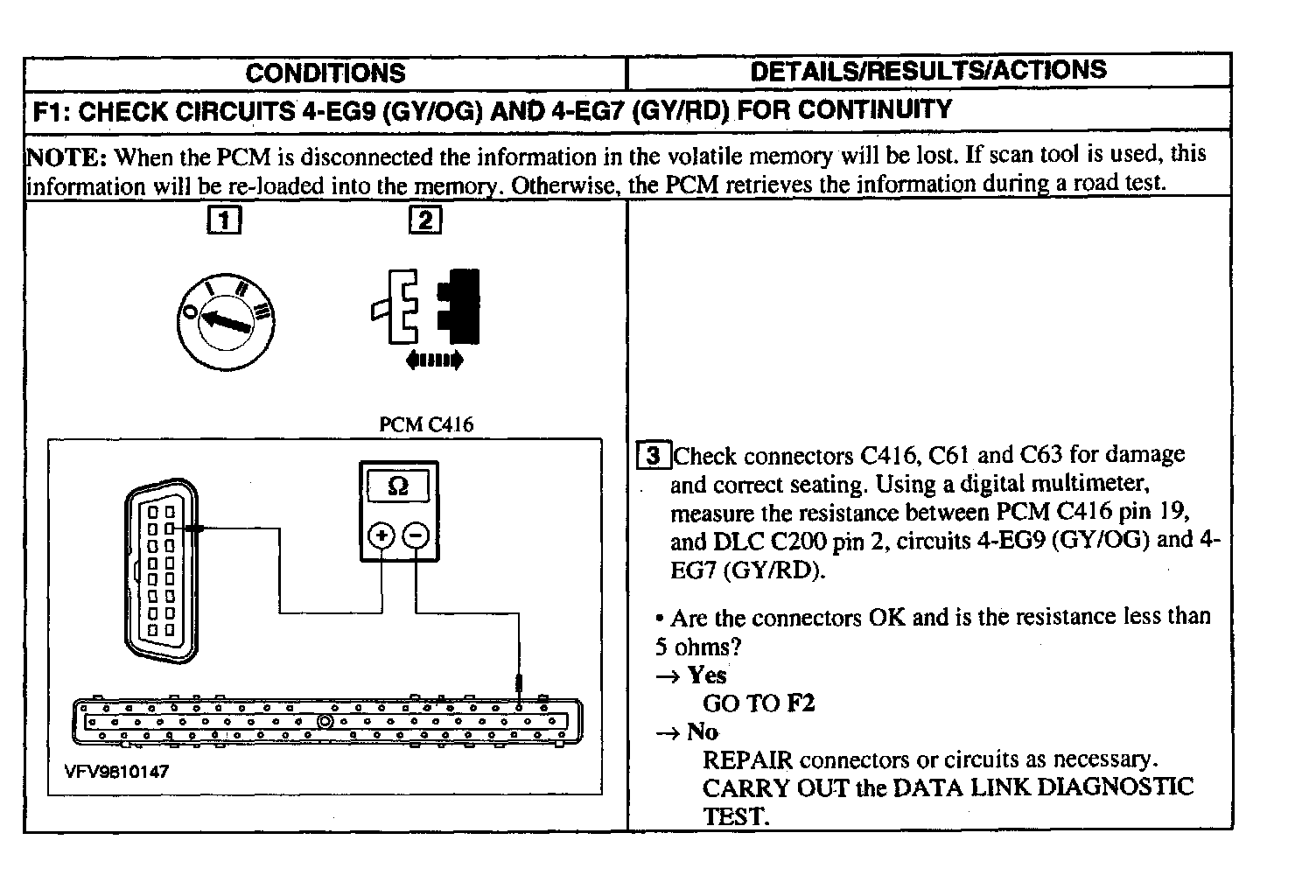

F1:

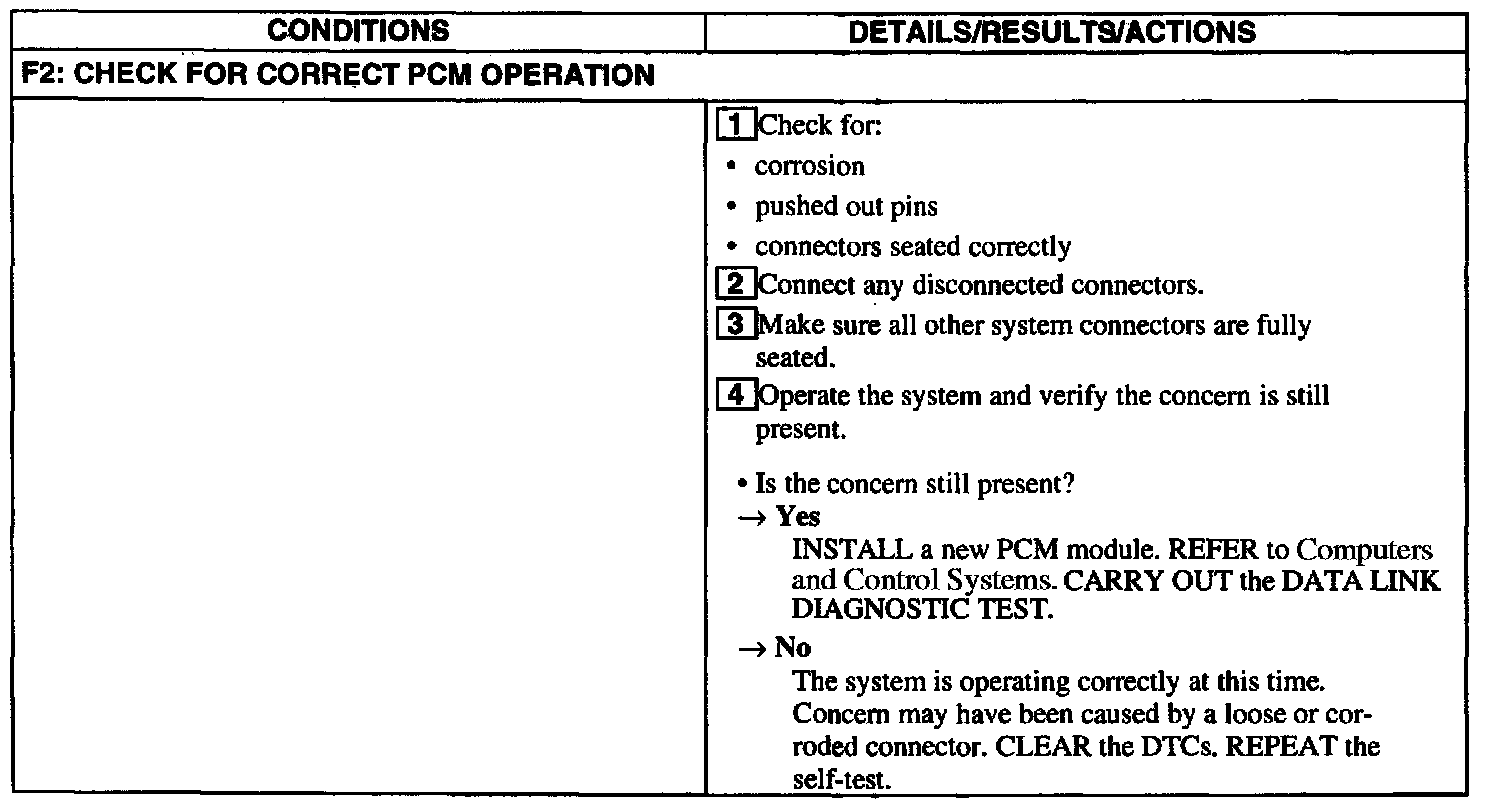

F2:
