Home >> Ford >> 2000 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper End

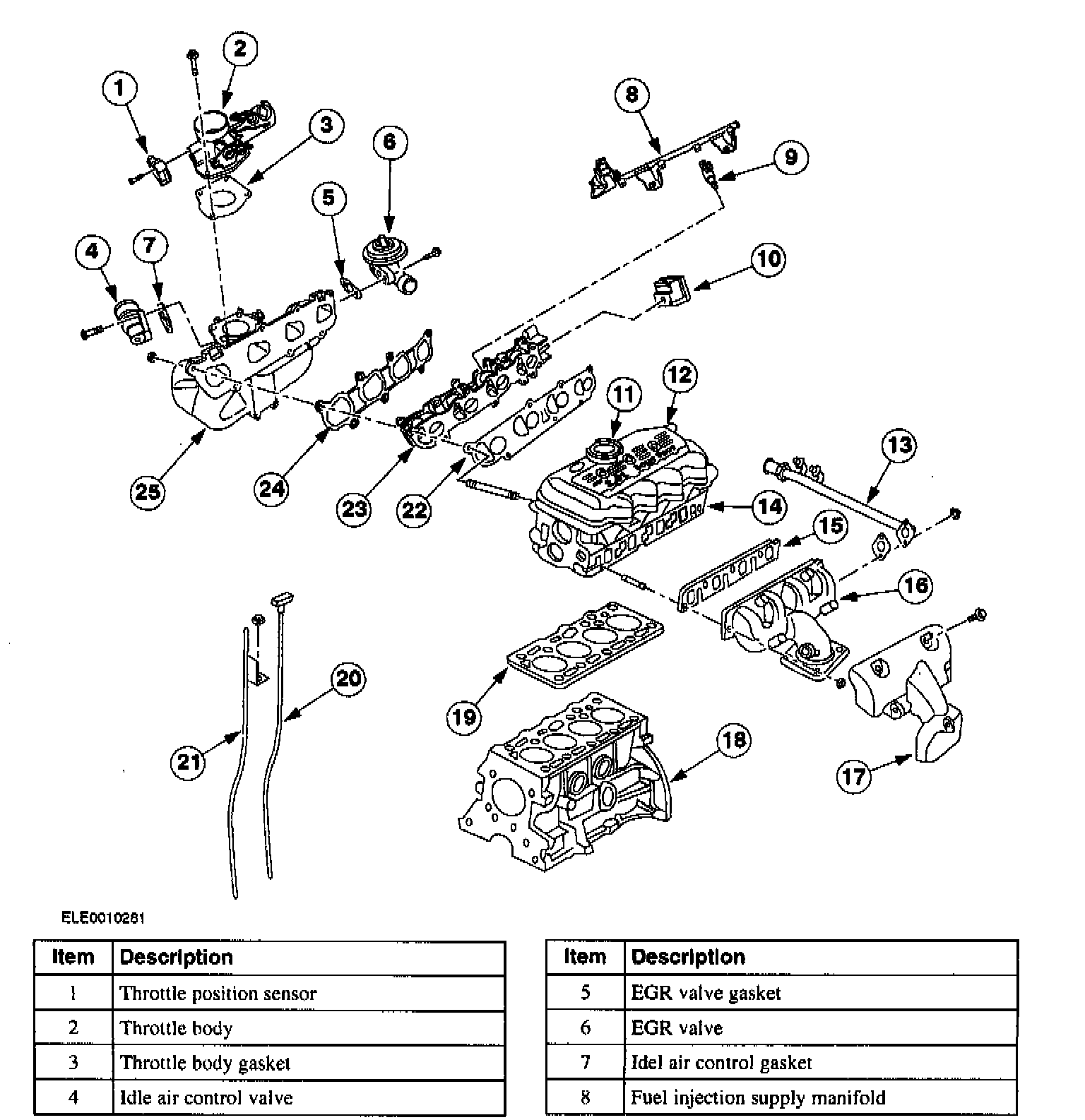

Upper End





1 of 3





2 of 3





3 of 3
