Home >> Ford >> 2000 >> Explorer 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Power window Switch >> Left Rear

Left Rear

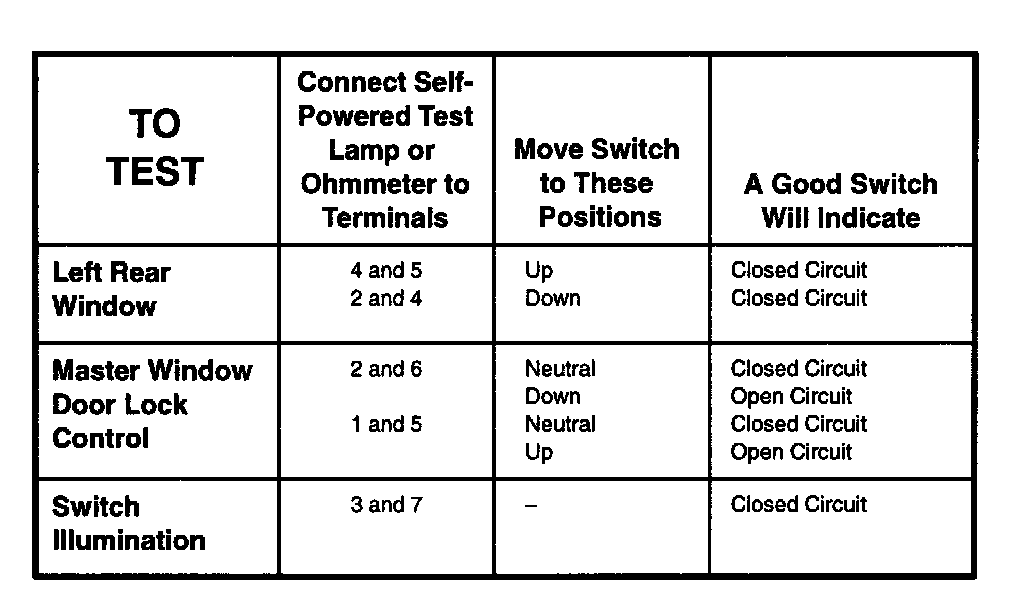

Component Testing Procedure:






Terminals:

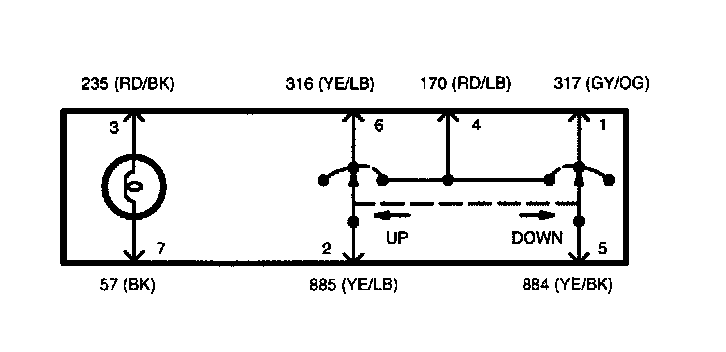

Schematic:
