Starter Motor: Service and Repair

REMOVAL

WARNING: WHEN PERFORMING MAINTENANCE ON THE STARTING SYSTEM BE AWARE THAT HEAVY GAUGE LEADS ARE CONNECTED DIRECTLY TO THE BATTERY. MAKE SURE PROTECTIVE CAPS ARE IN PLACE WHEN MAINTENANCE IS COMPLETED.

1. Disconnect the battery ground cable.
2. Raise and support the vehicle; refer to Maintenance/Service and Repair.

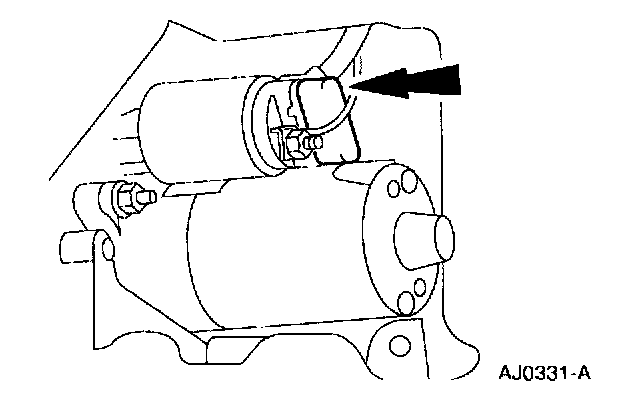

3. Remove the starter motor solenoid terminal cover.

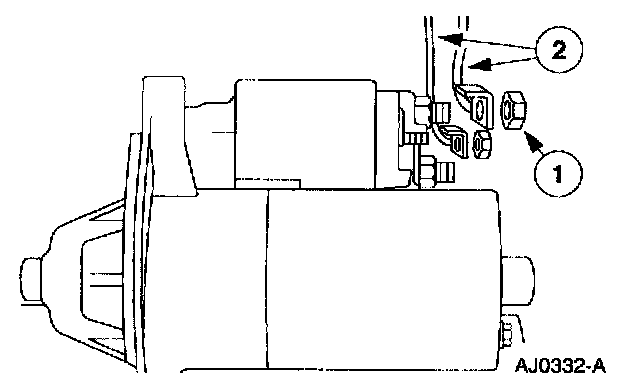

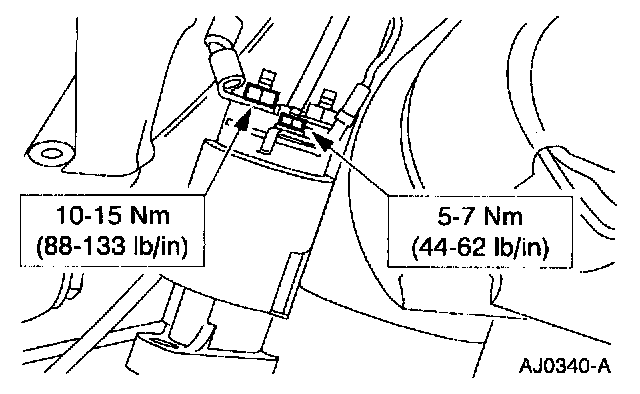

4. Disconnect the starter wires.
1 Remove the nuts.
2 Disconnect the wires.

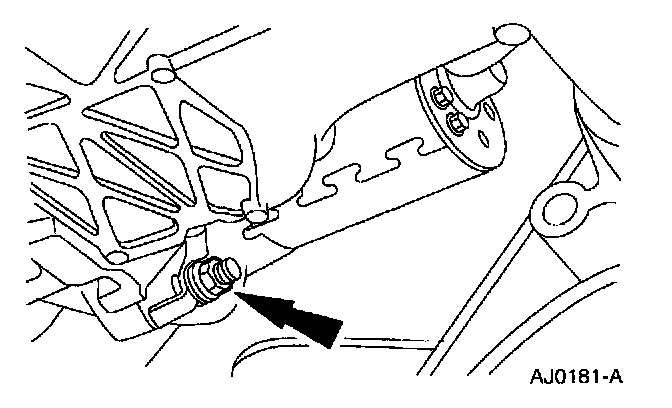

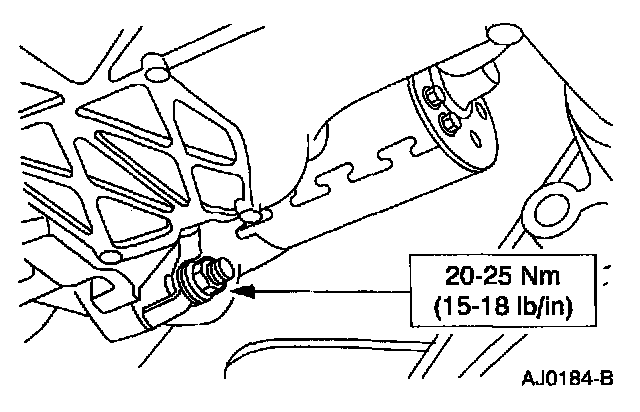

5. Remove the nut and the starter ground cable.

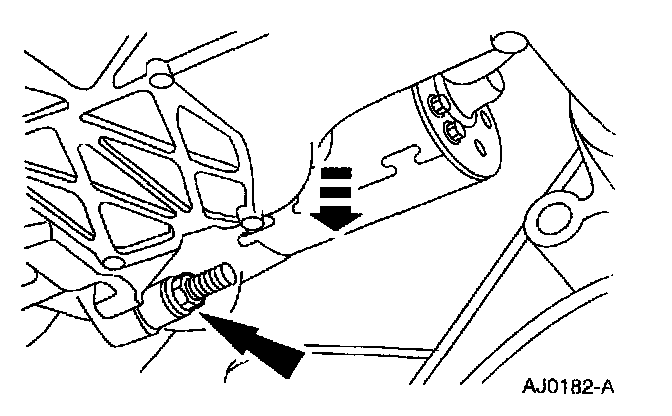

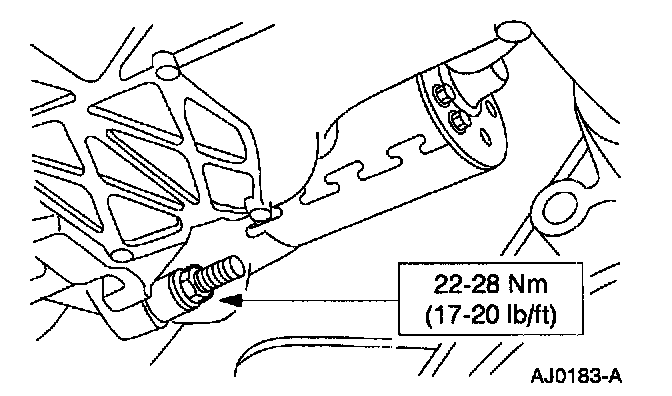

6. Remove the bolt and the starter motor.

INSTALLATION

















1. Follow the removal procedure in reverse order.
