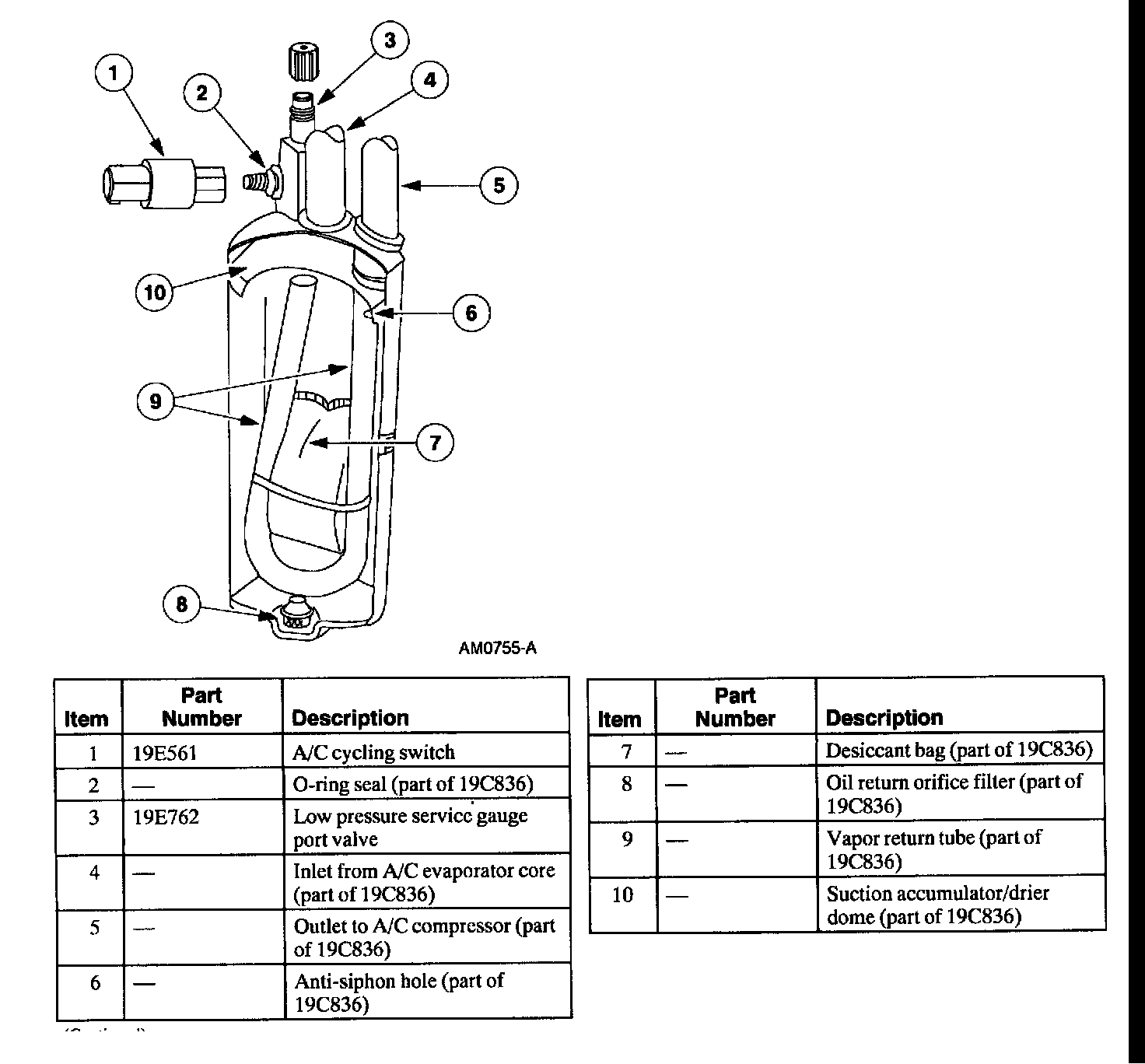

Exploded Views

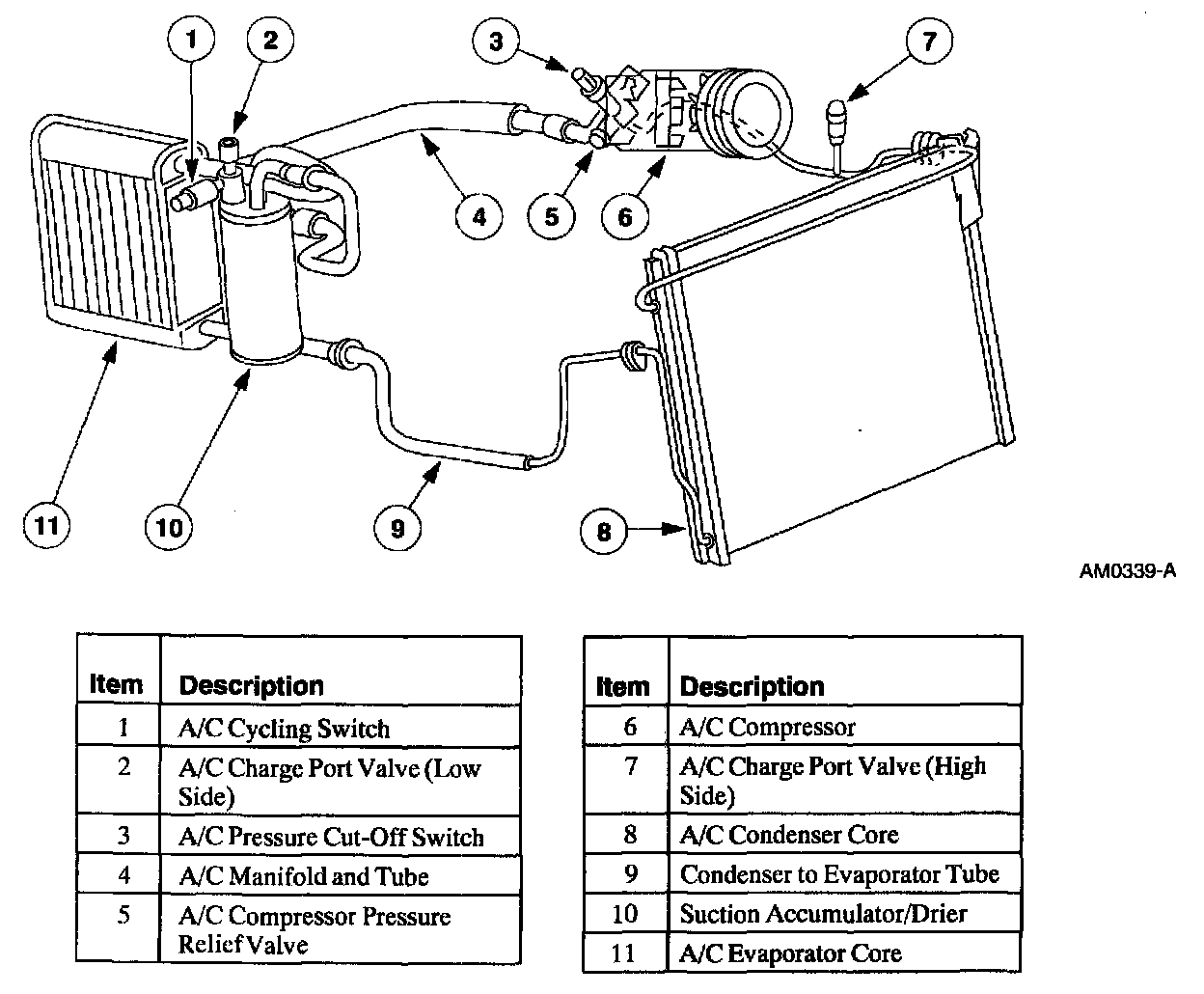

Component Locations:











Compressor Clutch Components:











Spring Lock Coupling:
