Home >> Ford >> 2000 >> Explorer 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram

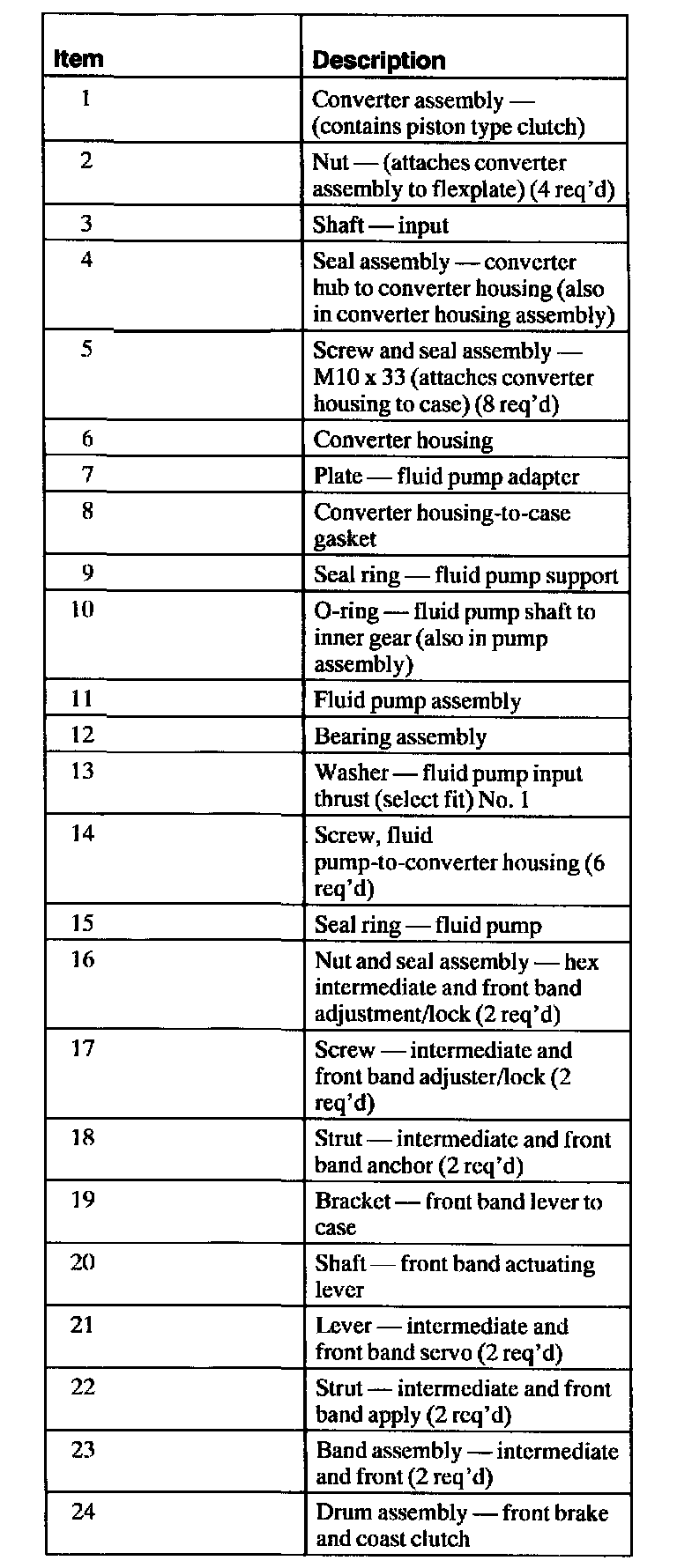

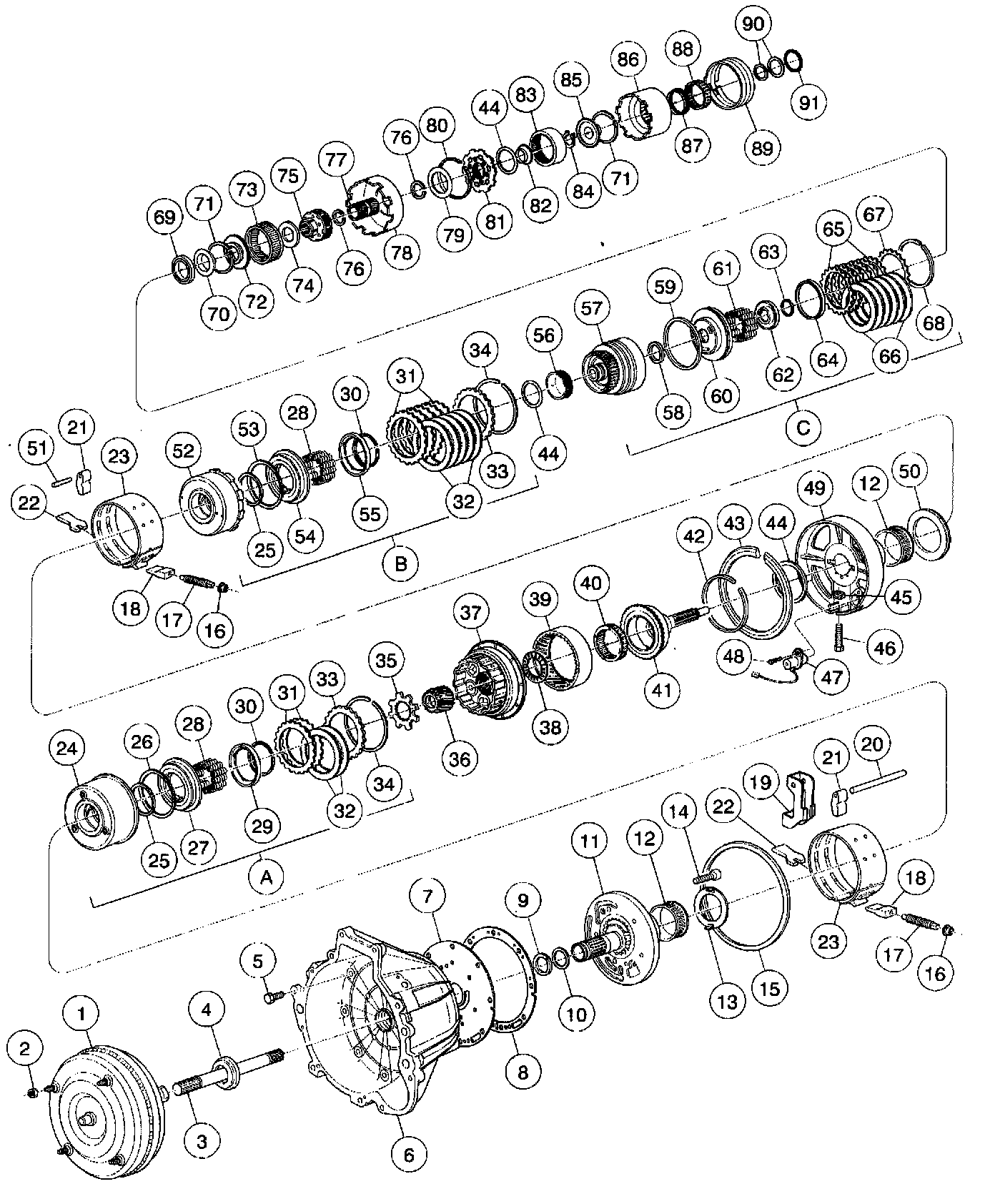

System Diagram





1 of 10





2 of 10





3 of 10





4 of 10





5 of 10





6 of 10





7 of 10





8 of 10





9 of 10





10 of 10
