System Specifications

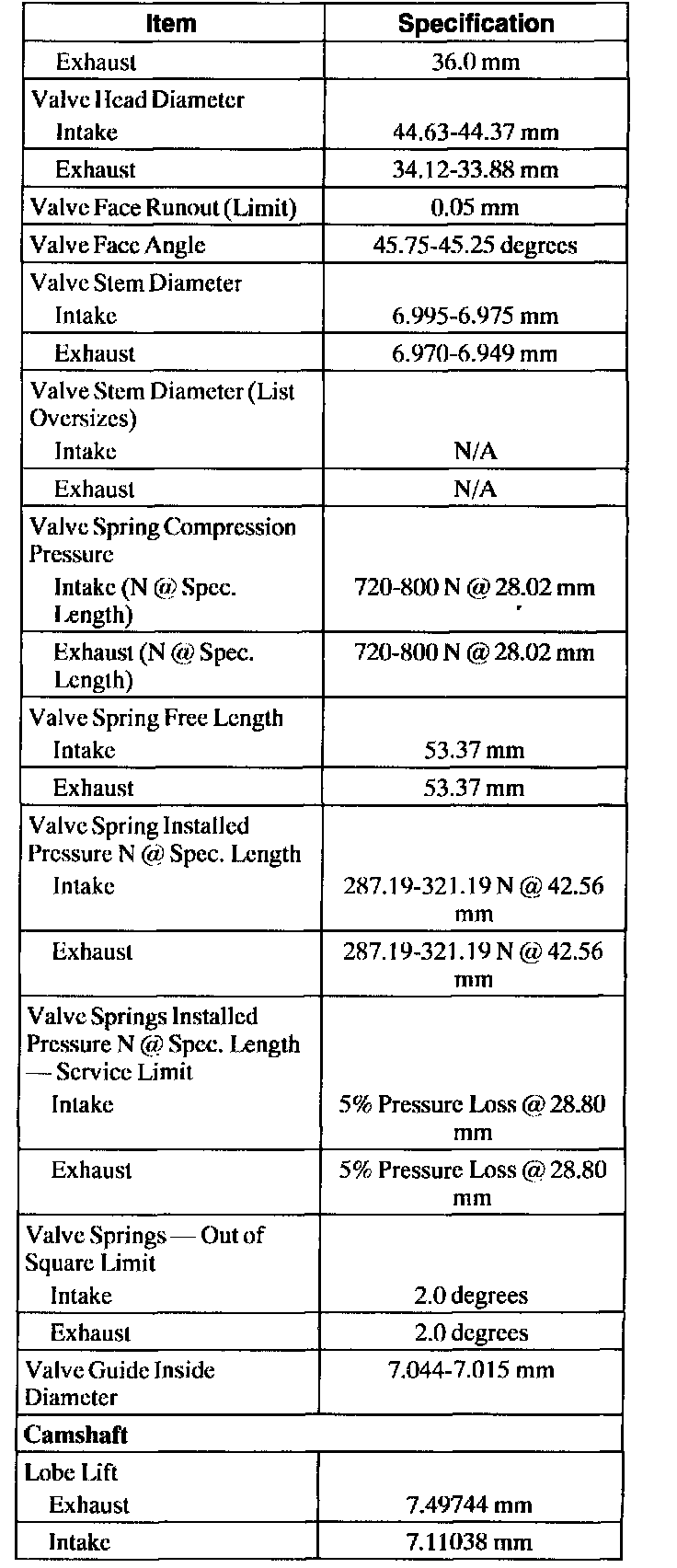

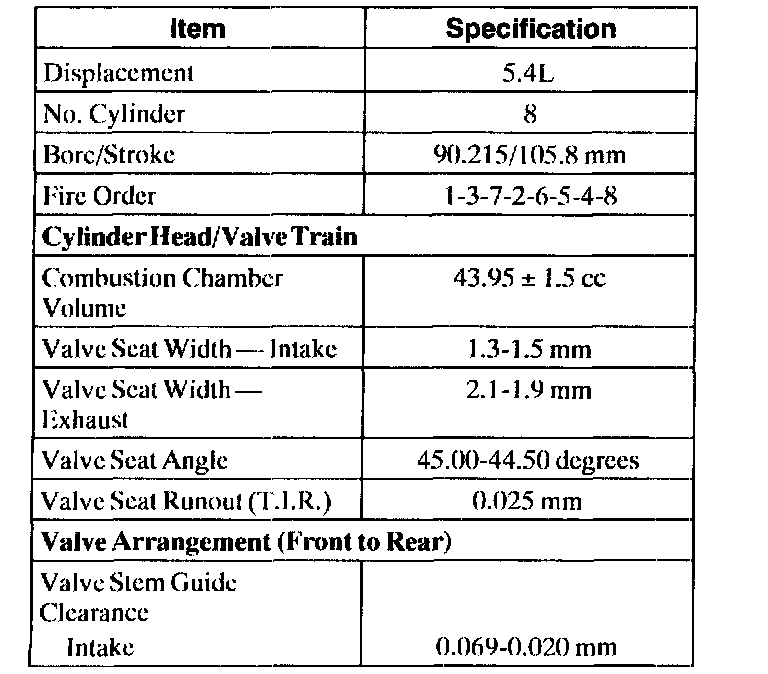

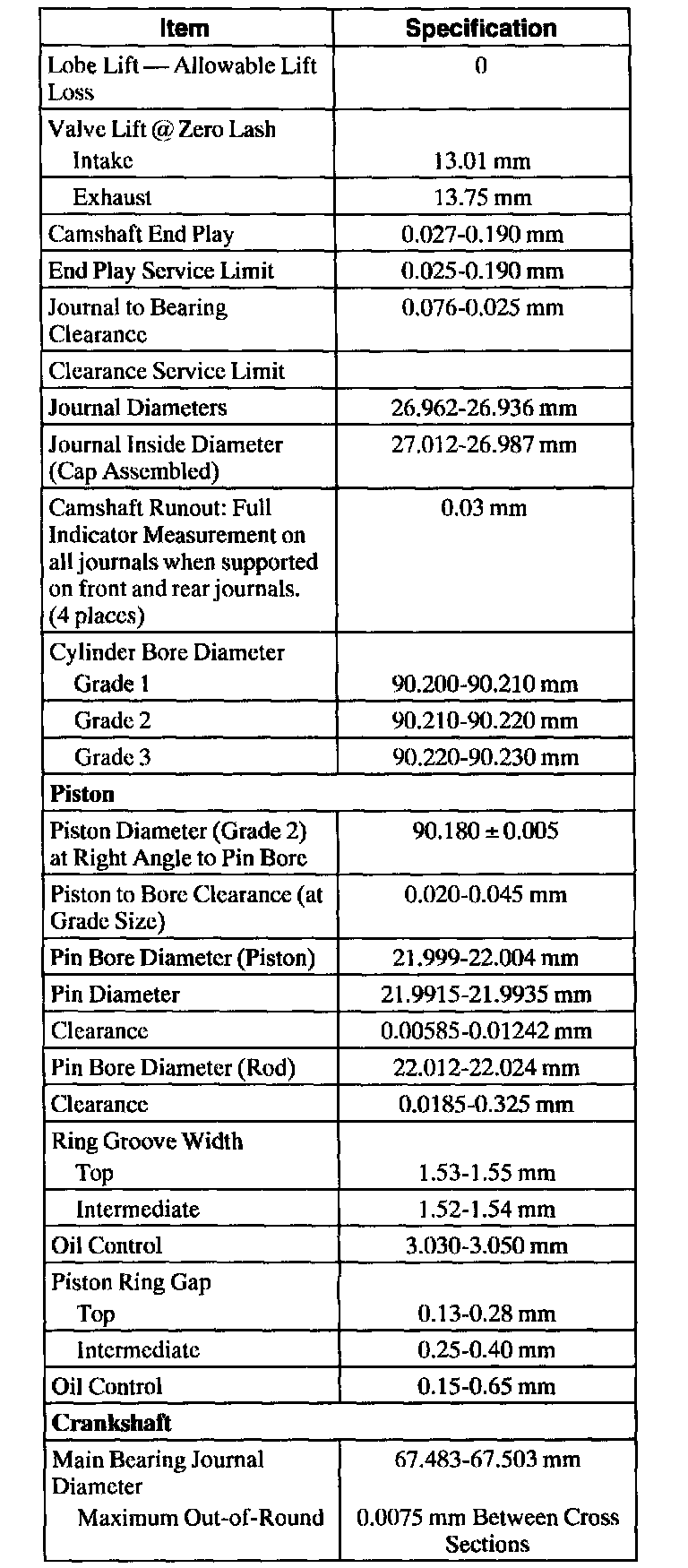

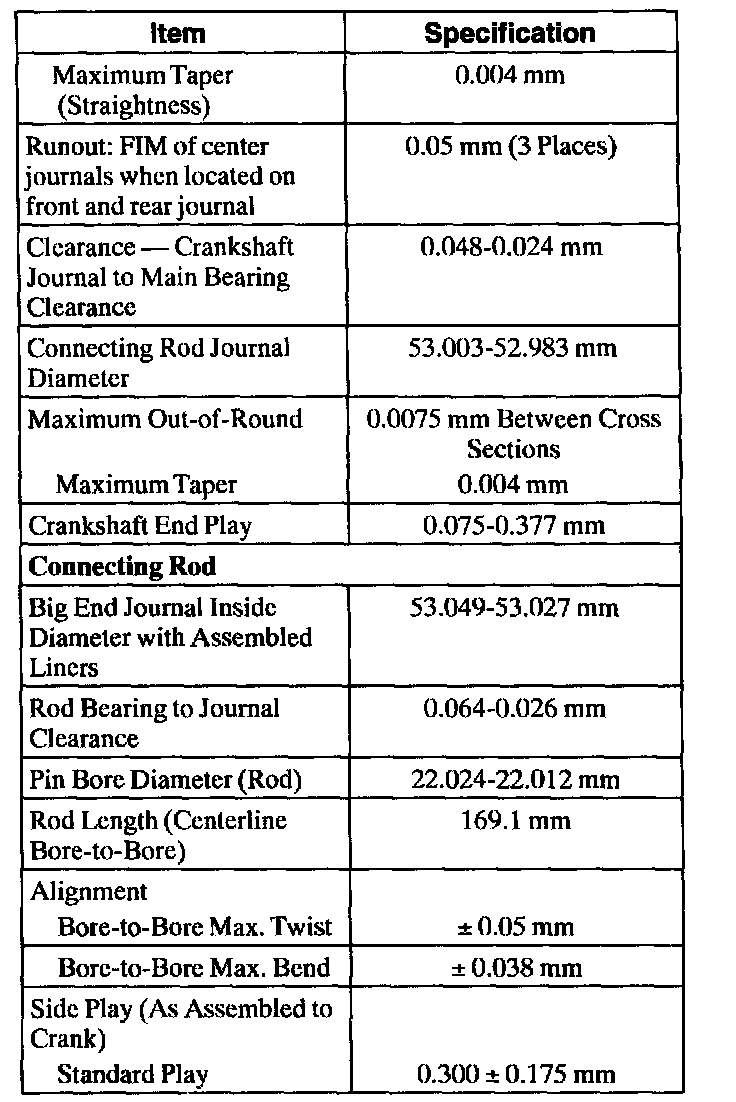

Engine General Specifications

Tightening Specifications

CAUTION: Install new bolts during installation. The bolts are tighten-to-yield designed and cannot be reused.

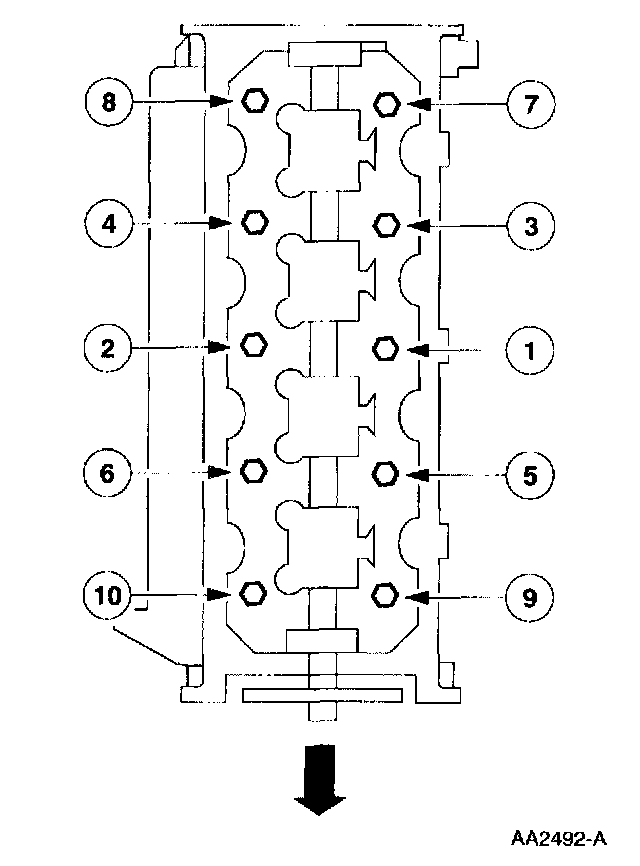

Note: Make sure to tighten the bolts in sequence in three stages tighten the LH bolts in the sequence shown.
- Stage 1: Tighten to 37-43 Nm (28-31 ft. lbs.).
- Stage 2: Tighten an additional 85-95 degrees.
- Stage 3: Tighten an additional 85-95 degrees.





Note: Make sure to tighten the bolts in the following three stages.

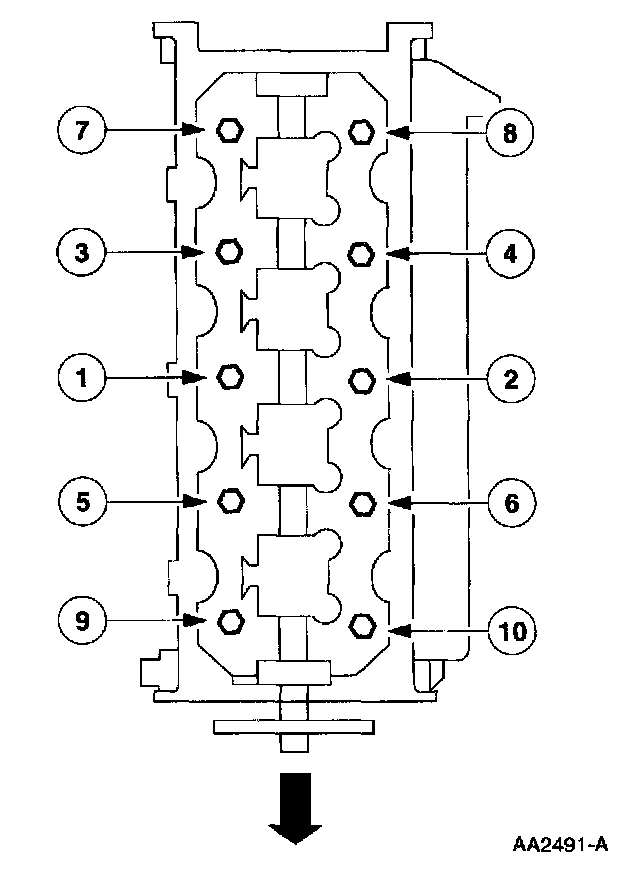

Tighten the RH bolts in the sequence shown.
- Stage 1: Tighten to 37-43 Nm (28-31 ft. lbs.).
- Stage 2: Tighten an additional 85-95 degrees.
- Stage 3: Tighten an additional 85-95 degrees.
