Oxygen Sensor: Service and Repair

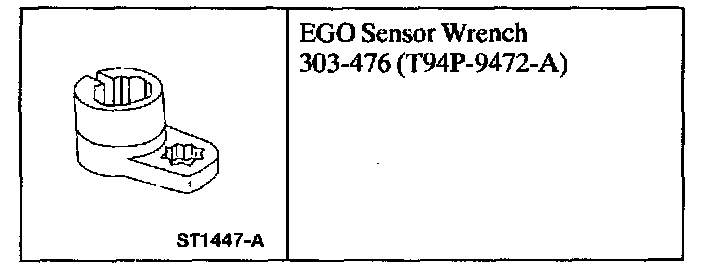

EGO Sensor Wrench:

SPECIAL SERVICE TOOL(S)

REMOVAL
1. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

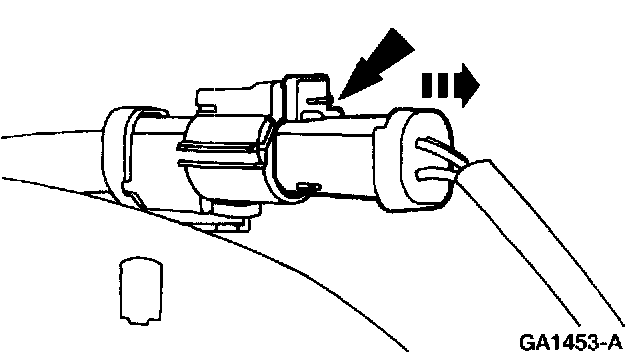

2. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.

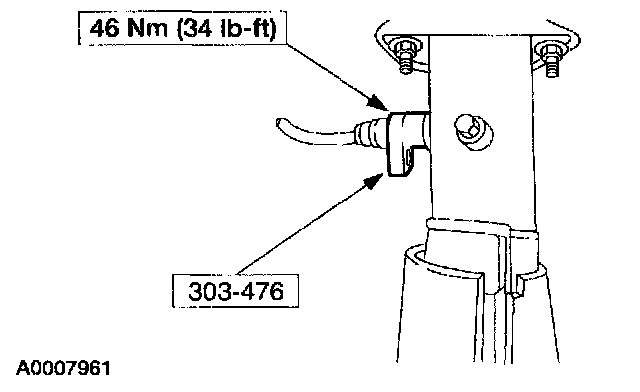

3. Using the special tool, remove the HO2S.

INSTALLATION
1. To install, reverse the removal procedure.
