Home >> Ford >> 2000 >> Expedition 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test J: EATC Module Does Not Respond To The Diagnostic Tool

Test J: EATC Module Does Not Respond To The Diagnostic Tool

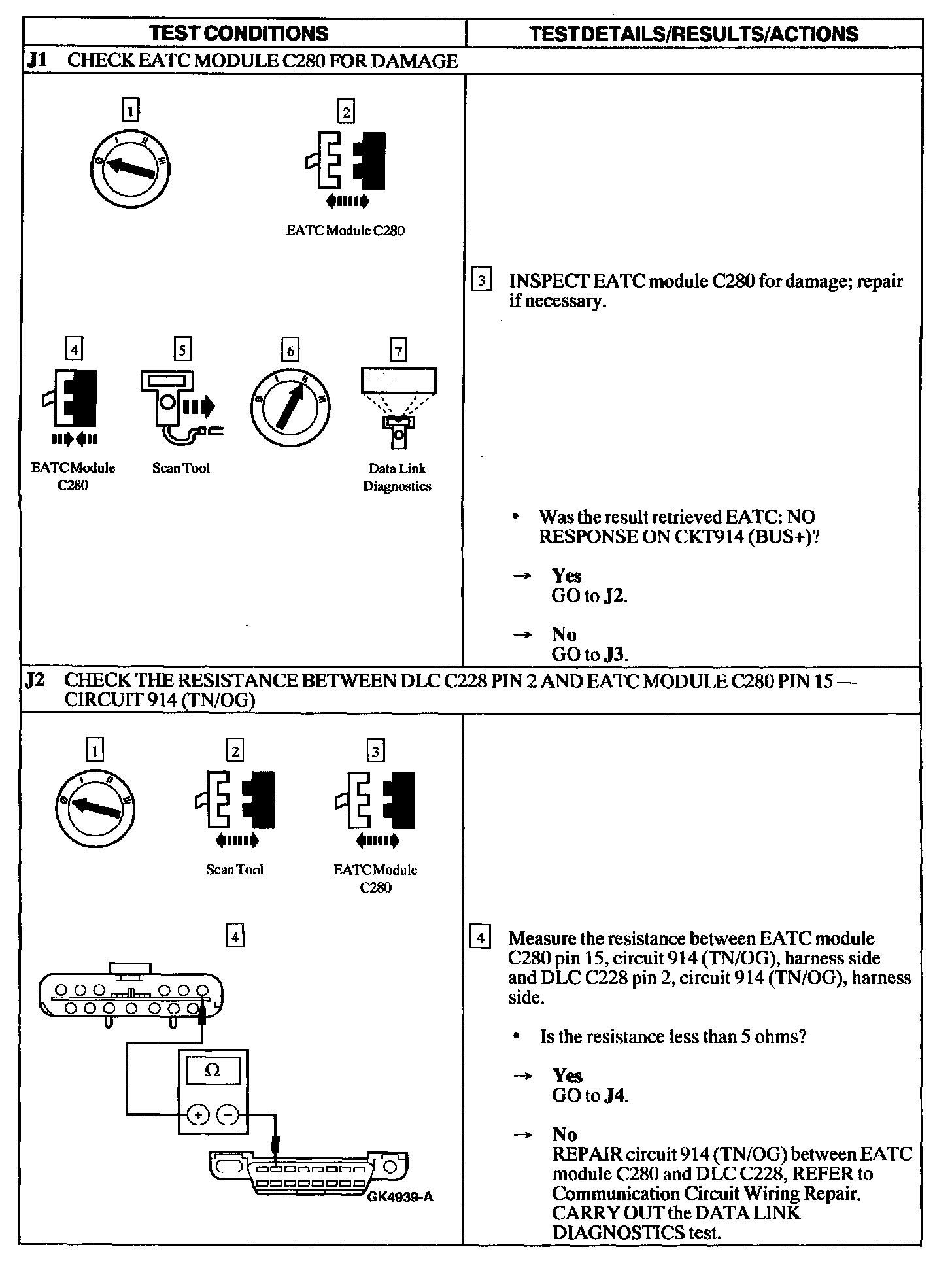

J1 - J2:

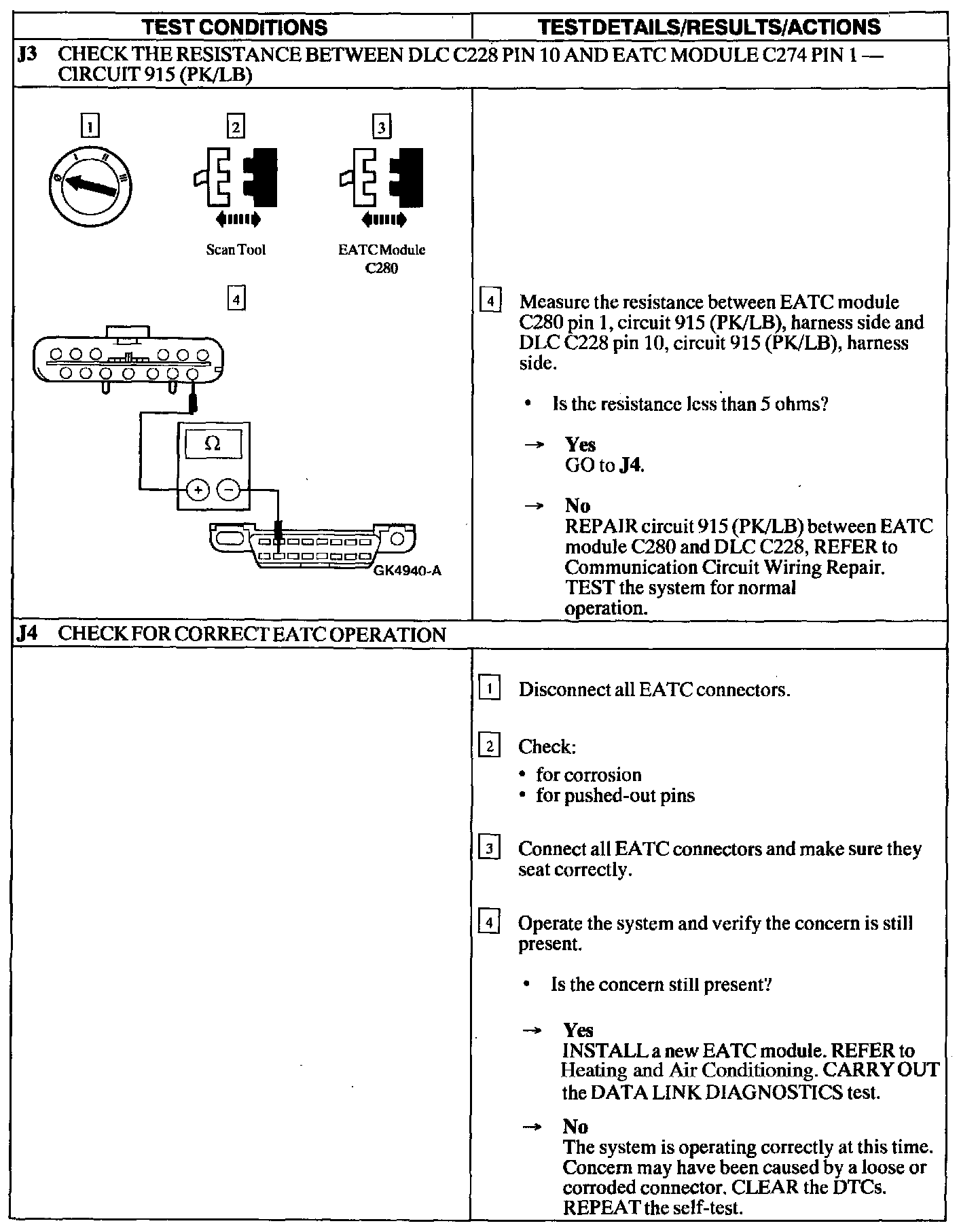

J3 - J4:
