LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 2000 >> Expedition 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test E: Air Suspension Module Does Not Respond To Diagnostic Tool

Test E: Air Suspension Module Does Not Respond To Diagnostic Tool

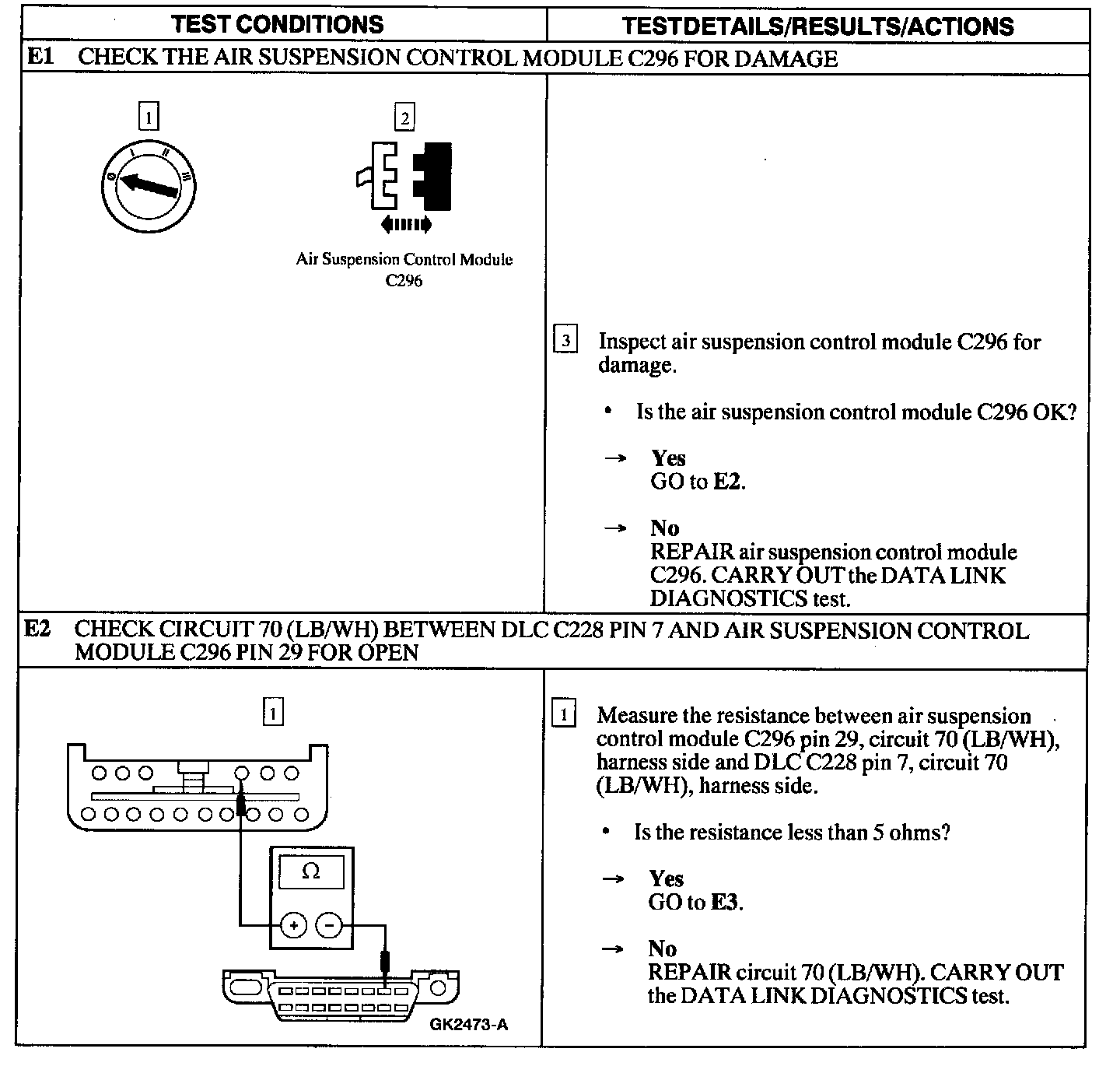

E1 - E2:

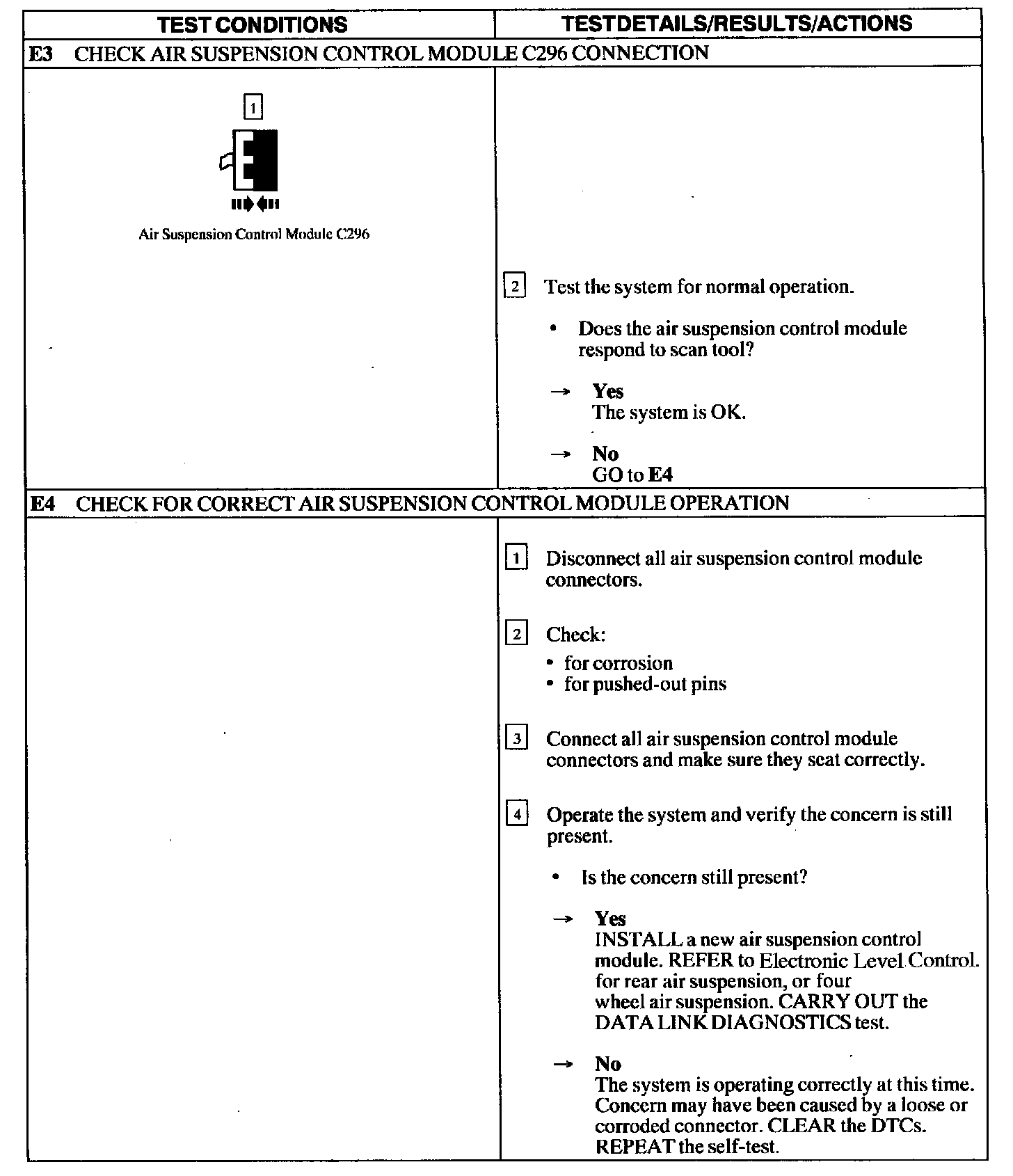

E3 - E4:
