Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Remove the A/C compressor. For additional information, refer to Heating and Air Conditioning.

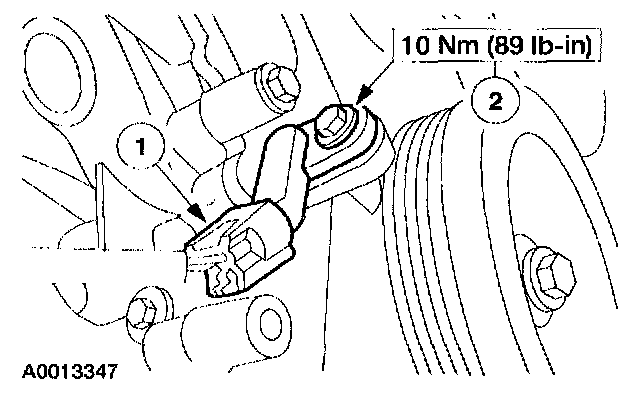

2. Remove the Crankshaft Position (CKP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolt and the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
